Bale Blaster Straw Spreaders

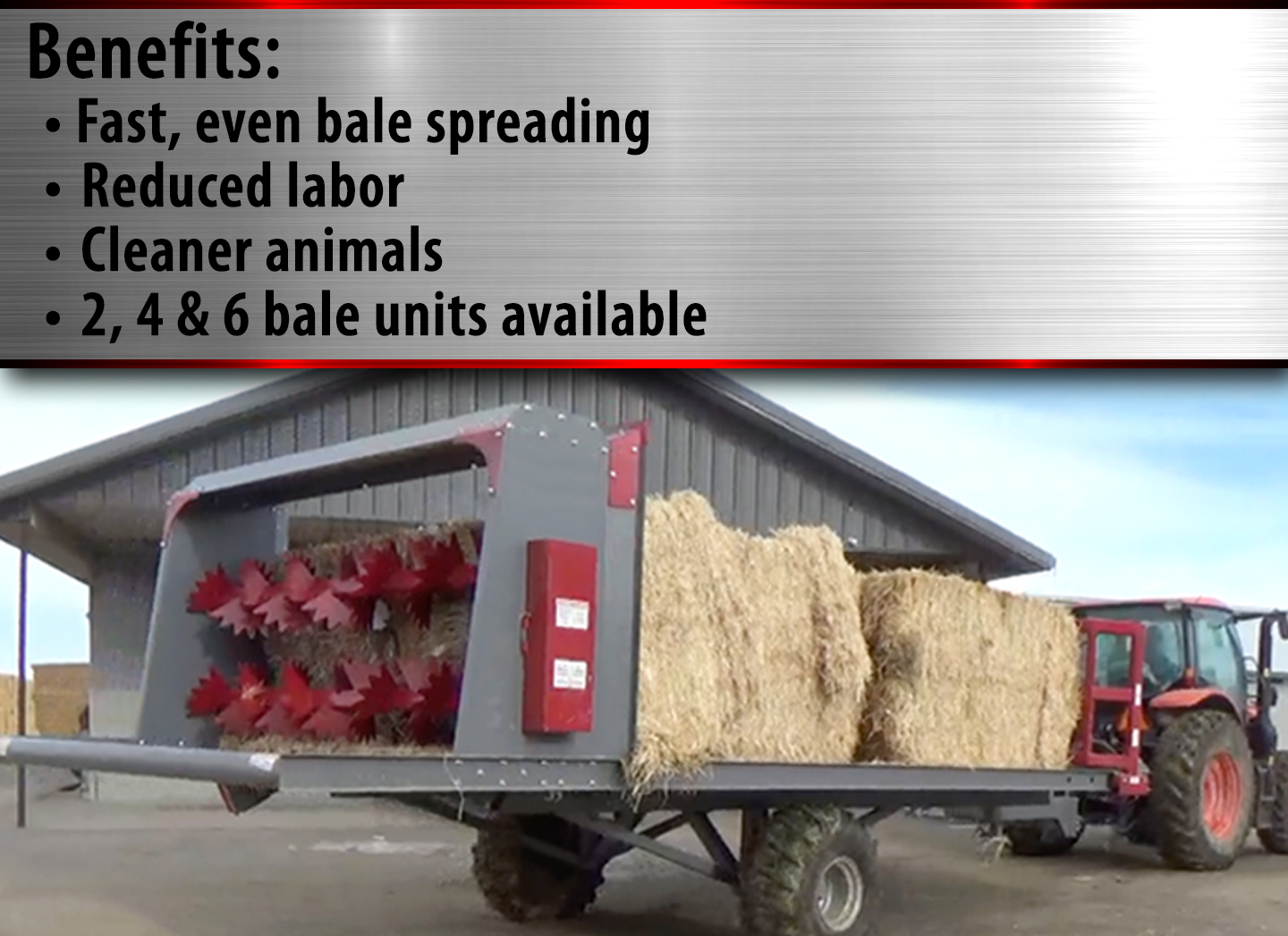

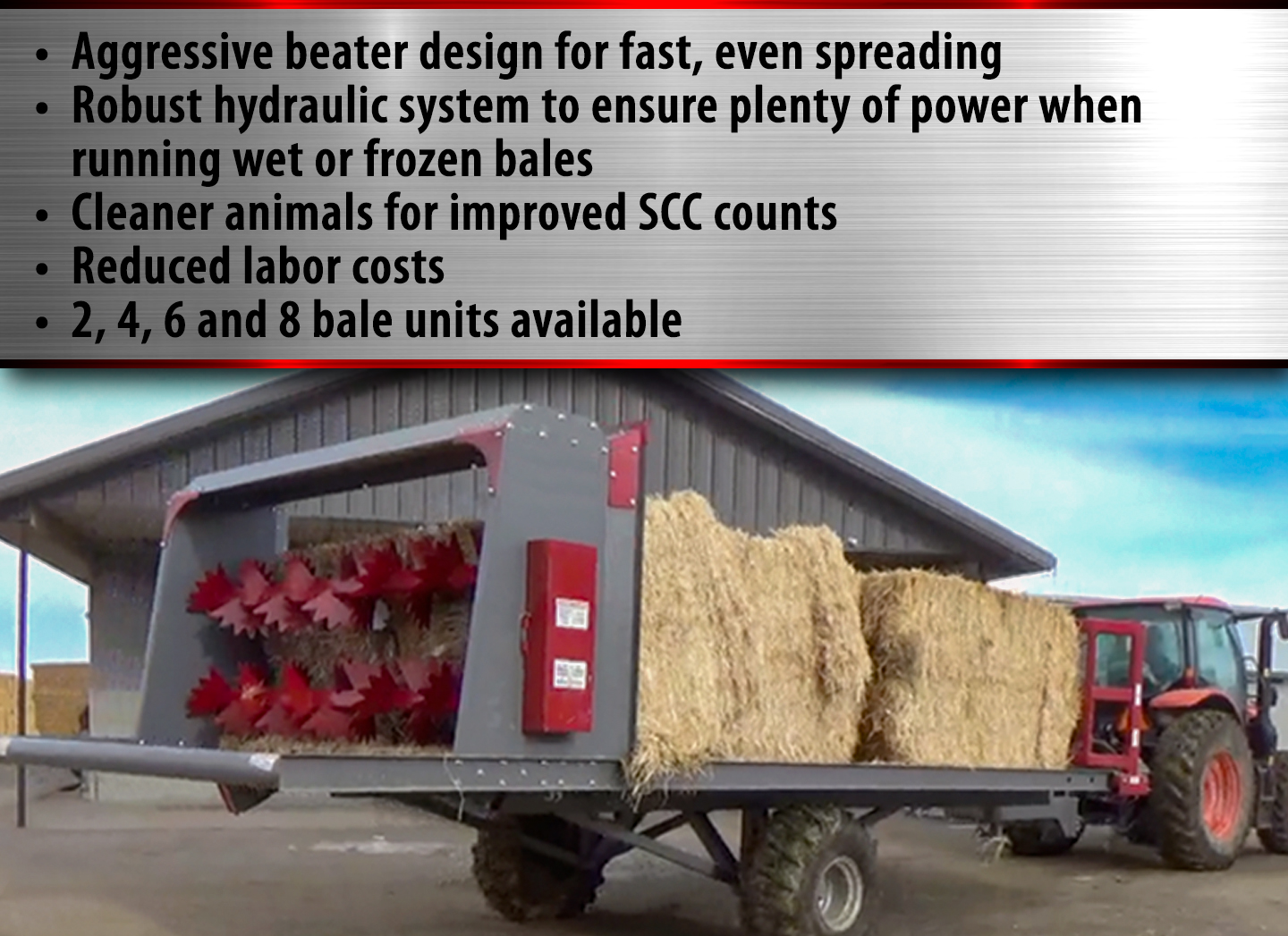

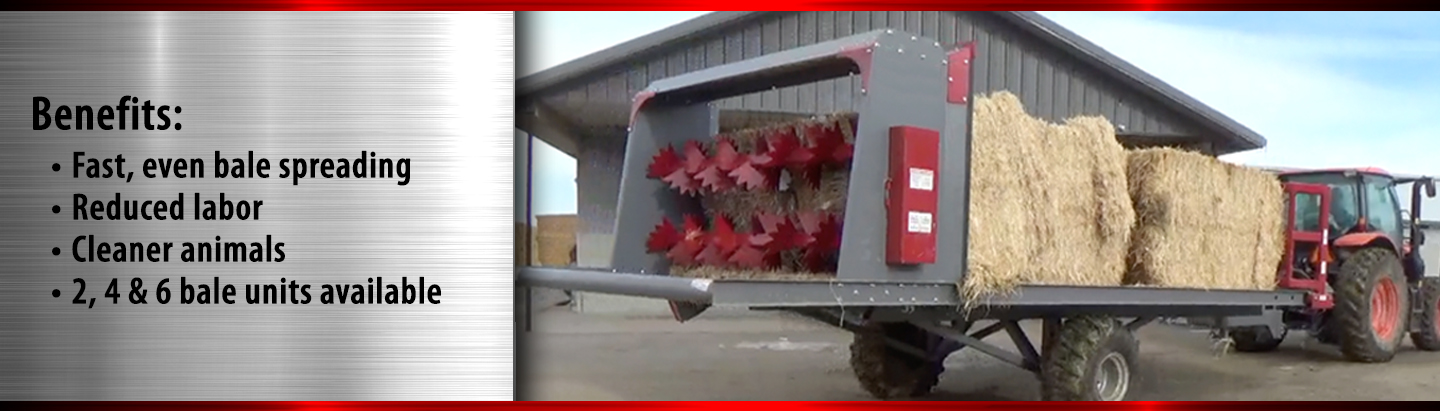

Aggressive beater design for fast, even spreading.


2 Bale (Recommended PTO HP 75+)


4 Bale (Recommended PTO HP 85+)


6 Bale (Recommended PTO HP 95+)


8 Bale (Recommended PTO HP 150+)


Extremely heavy duty trailer frame and axles.


Robust oversize chains, sprockets and components.


Heavy duty wheels with flotation tires.


Replaceable UHMW wear guides on push rack. Built in ring to hold twine barrel.


Large beater bearings on outside of housing for easy access.

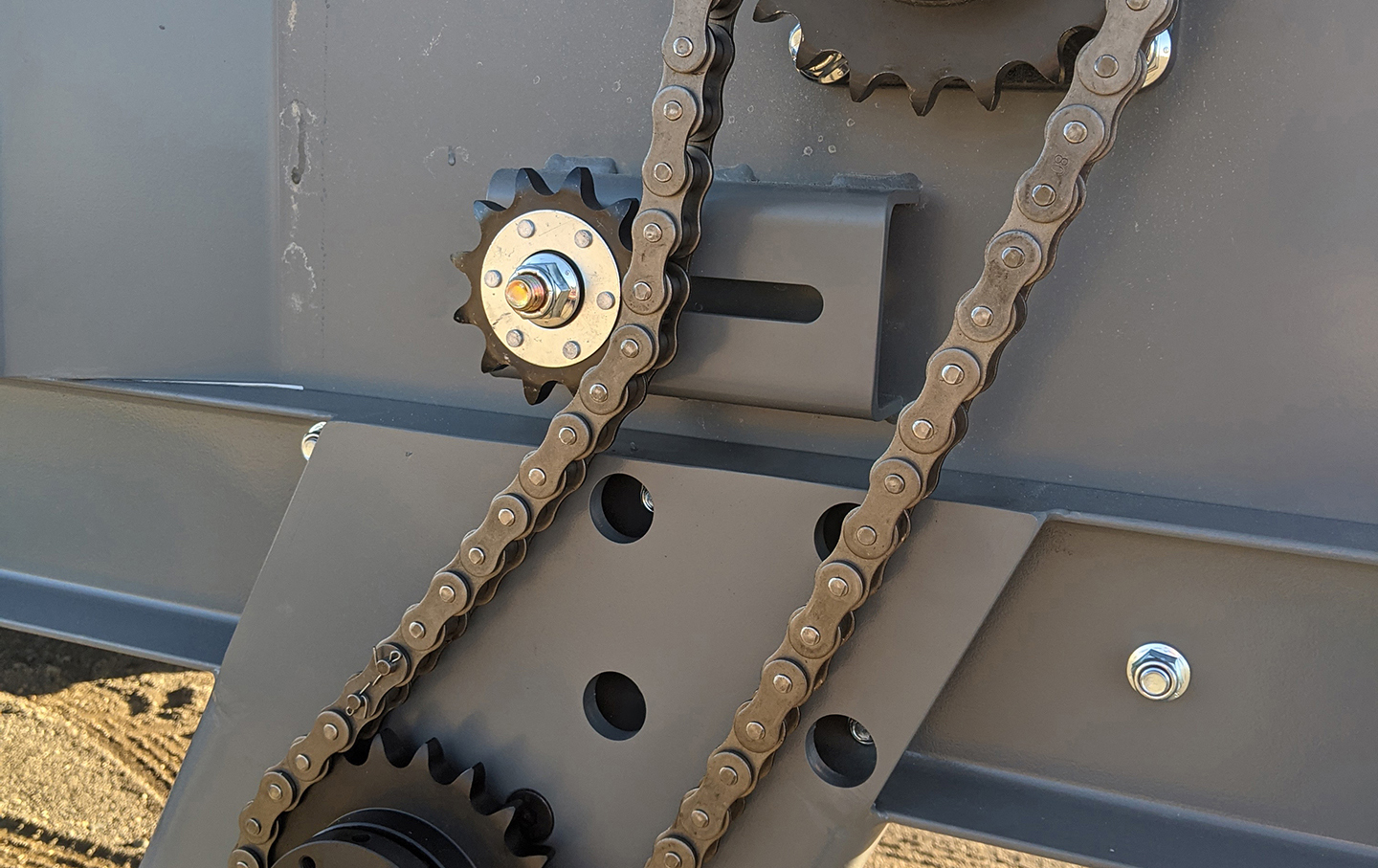

Easily accessible chains and drive components. Service friendly.

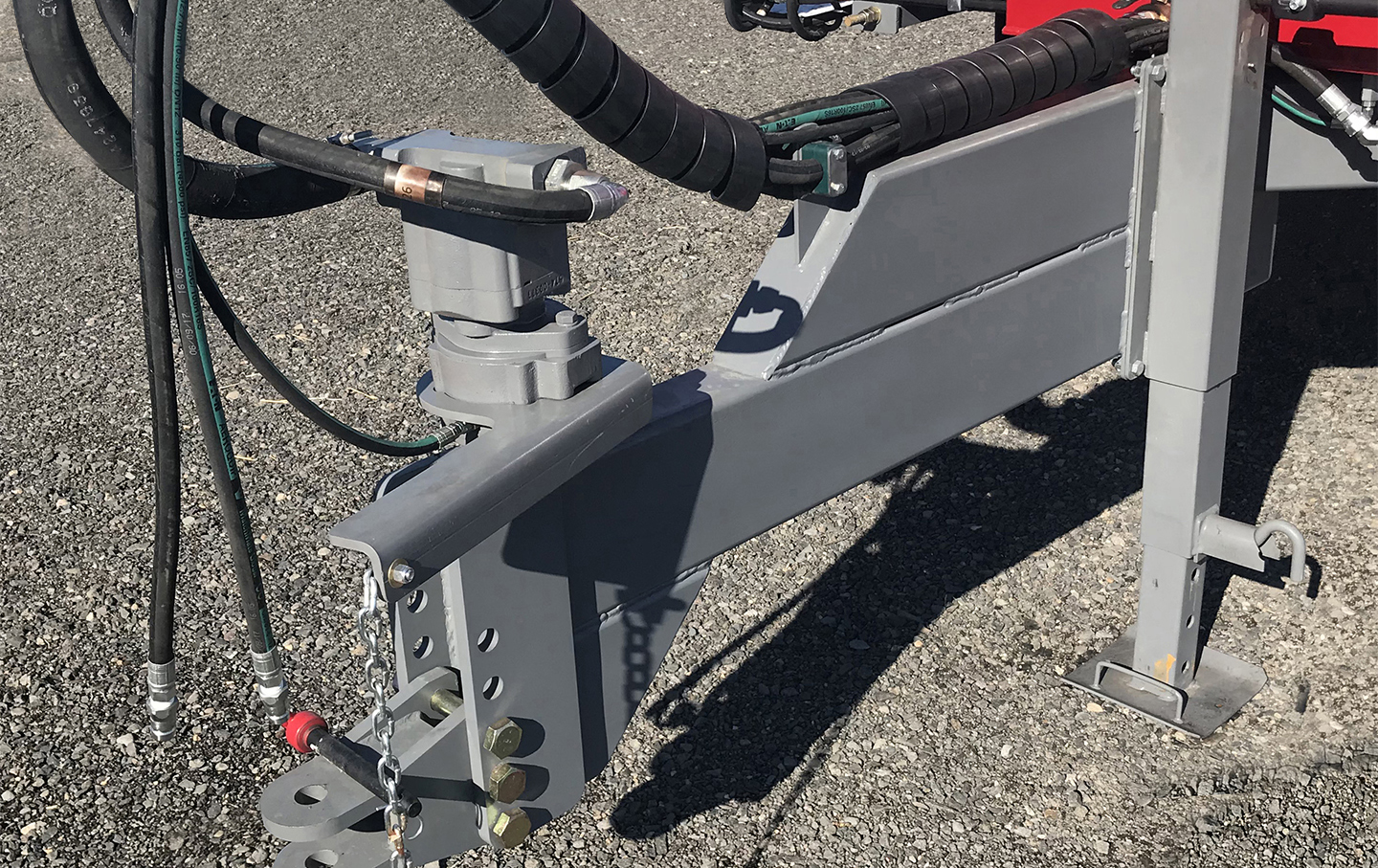

540 PTO driven pump rests on trailer tongue when not in use. Keeps it off the ground. Heavy duty tongue, frame and jack.


Easily accessible push rack flow control.


Oversize hydraulic system to ensure plenty of power when running wet or frozen bales.


Heavy duty floor chains with pull back tabs.


Tire guard to protect hydraulic pump hose.

Trailer Specifications

  • Model: Bale Blaster Straw Spreader (4 and 6 Bale Models)
  • Spindle: 9,000 lb. rated Agricultural
  • Bearings: Inner: LM613449 Outer: 25580 Seal: 26464
  • Tire: 18.40 in. X 16.1 in. Bolt Pattern: 8 Bolt, 8 in. center line diameter
  • Hitch: Clevis Type, Max Capacity: 20,000 lb. Clevis Pin Size: 1 in. diameter by 8 in. length
  • Jack: Bulldog Model 182410 Max Capacity: Static 12,000 lb. Lift 10,000 lb.
  • Hydraulic Oil: Chevron THF 1000 or equivalent Volume: 30 gallons Filter: RBSZ10ELEMENT
  • Heavy channel sides
  • Adjustable clevis hitch
  • Heavy duty frame and tongue
  • 10,000 lb. jack
  • Solid, smooth floor
  • Durable powder coat finish
  • Hydraulic stop valves on push rack
  • Pull back tabs on floor chains
  • Large bearing on OUTSIDE of housing for easy access
  • Steel hydraulic lines to limit hoses
  • Rear guard bar (keeps animals out of beater)
  • O Ring & JIC hydraulic system - less leaks
  • Easily accessible push rack flow control
  • Replacement UHMW bearing block for push rack guide
  • Self contained Beater Drive System
  • Heavy duty floor chains
  • Removable beater housing
  • Tire guard to protect hydraulic pump hose
  • 1 year limited warranty
2 Bale
4 Bale
6 Bale
