Calf Bottle Trailers
| Trailer Sizes for 2 and 3 qt Bottles | |
|---|---|
| 48 Bottle with tricycle wheel | 308 Bottle, split pan |
| 60 Bottle with tricycle wheel | 392 Bottle, split pan |
| 105 Bottle with tricycle wheel | 504 Bottle, split pan or wide pan |
| 154 Bottle with tricycle wheel | 616 Bottle, wide pan |
| 196 Bottle, single pan | 840 Bottle, wide pan |
| 252 Bottle, single pan | 1008 Bottle, wide pan |
| Trailer Sizes for 4 qt Bottles | |
|---|---|
| 78 Bottle with tricycle wheel | 228 Bottle, single pan |
| 114 Bottle, single pan | 288 Bottle, split pan |
| 144 Bottle, single pan | 372 Bottle, split pan |
| 186 Bottle, single pan | |

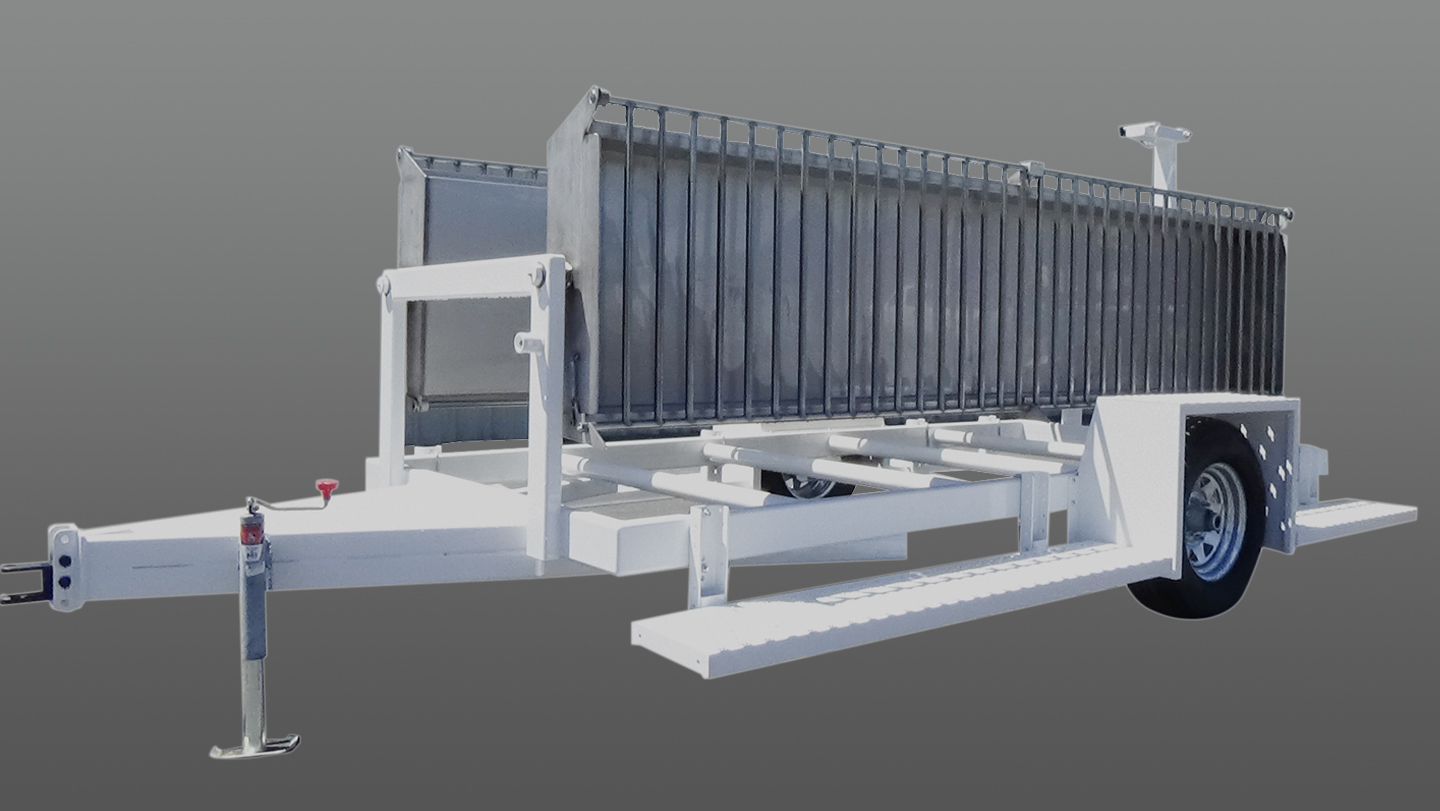

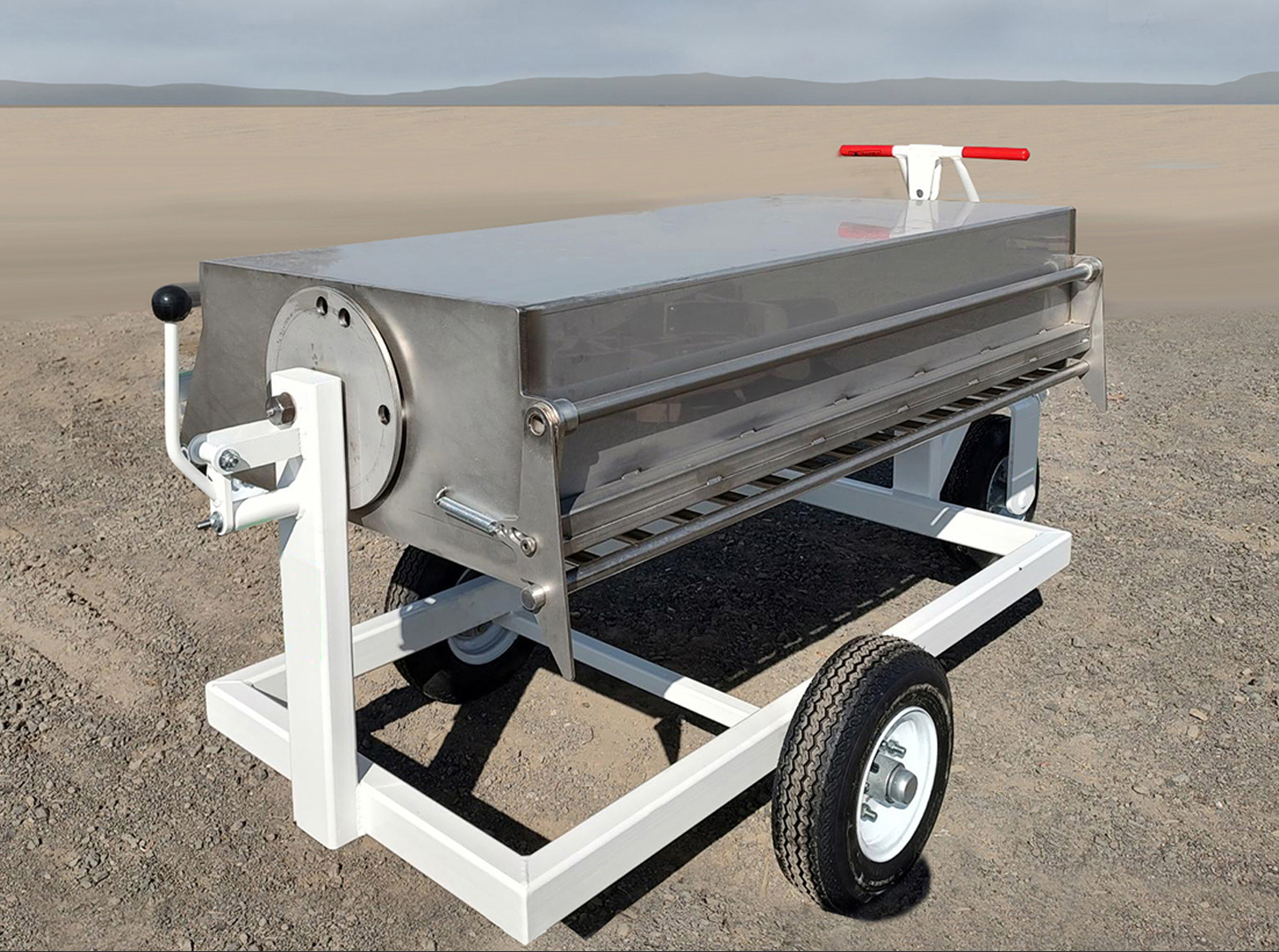

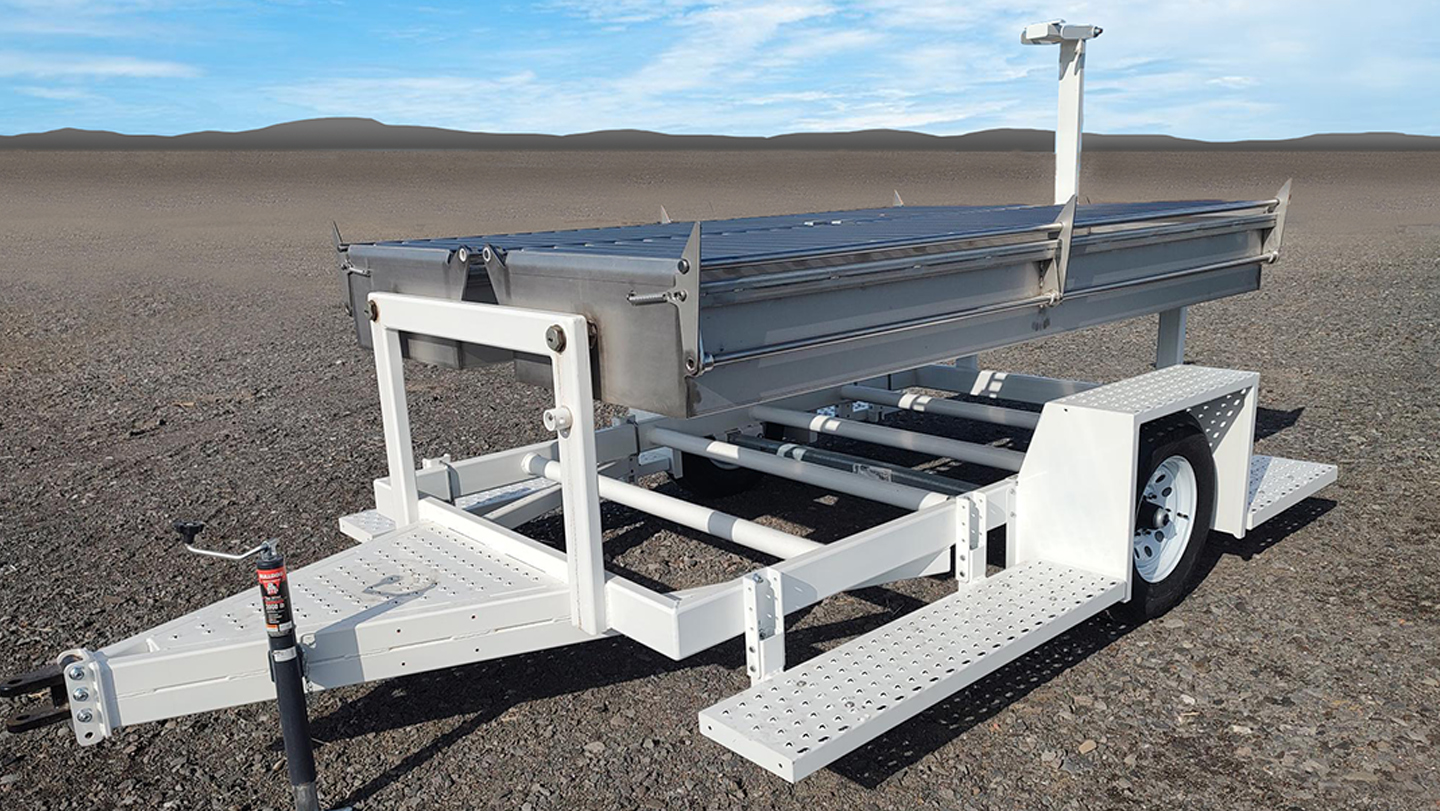

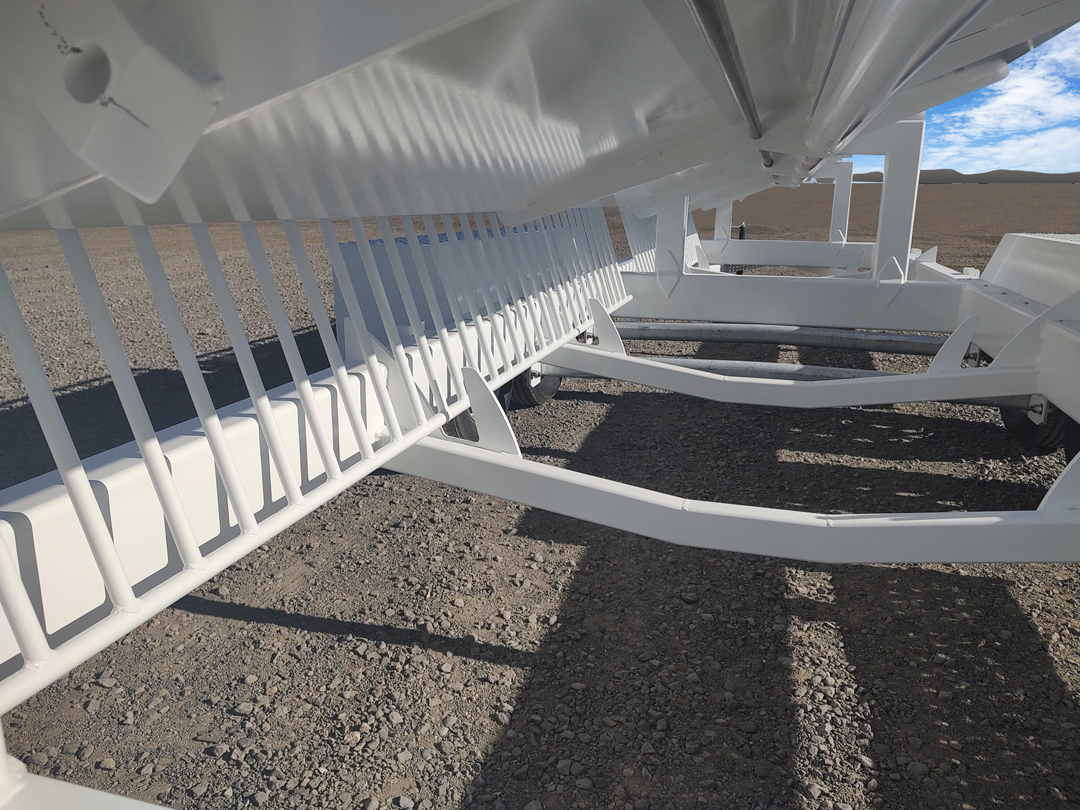

Single and split pan trailers feature stainless steel pans and bottle racks.

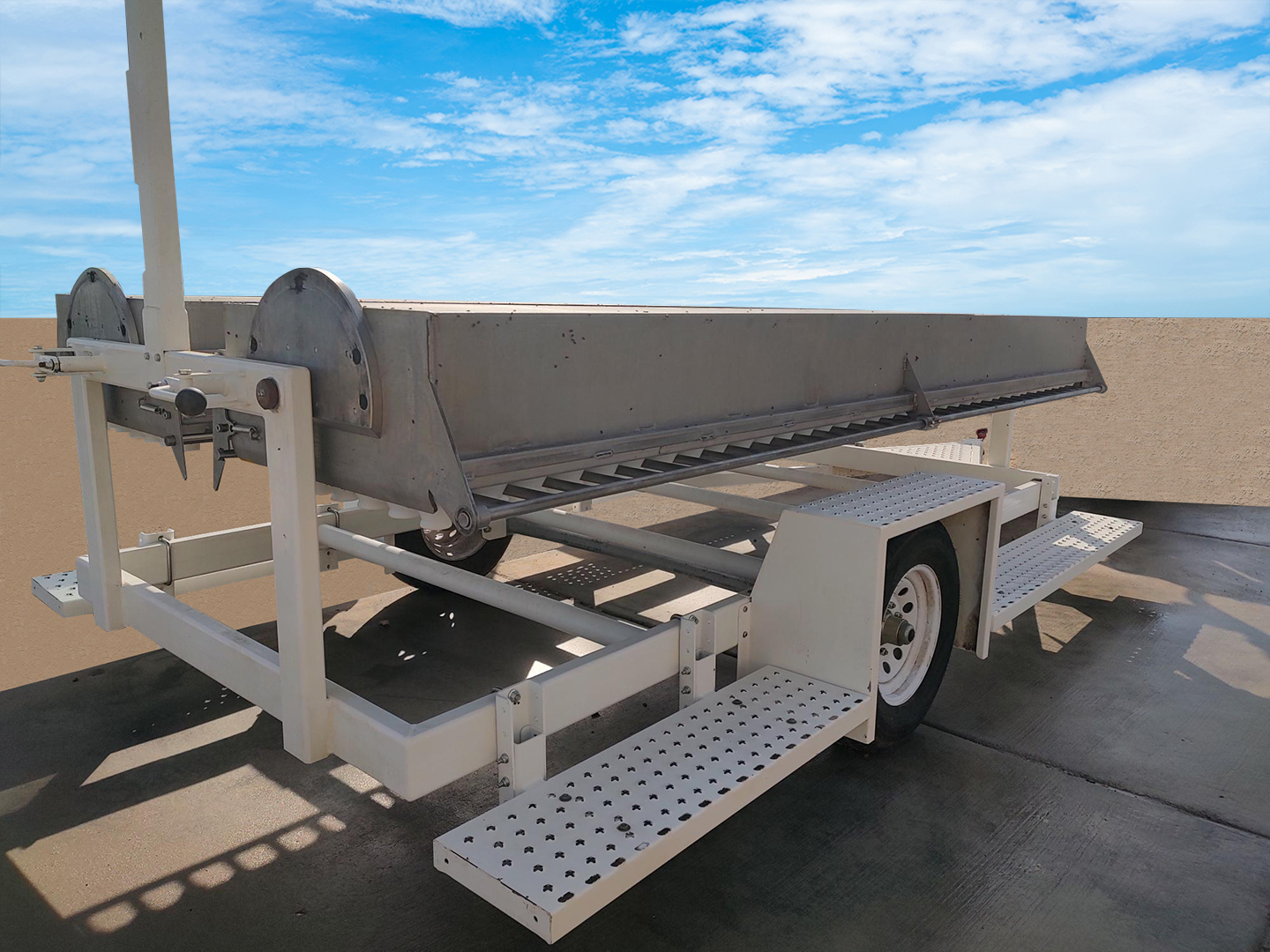

Adjustable, non-slip running boards with full fenders.
Durable powder coat finish comes standard on all trailer chassis.

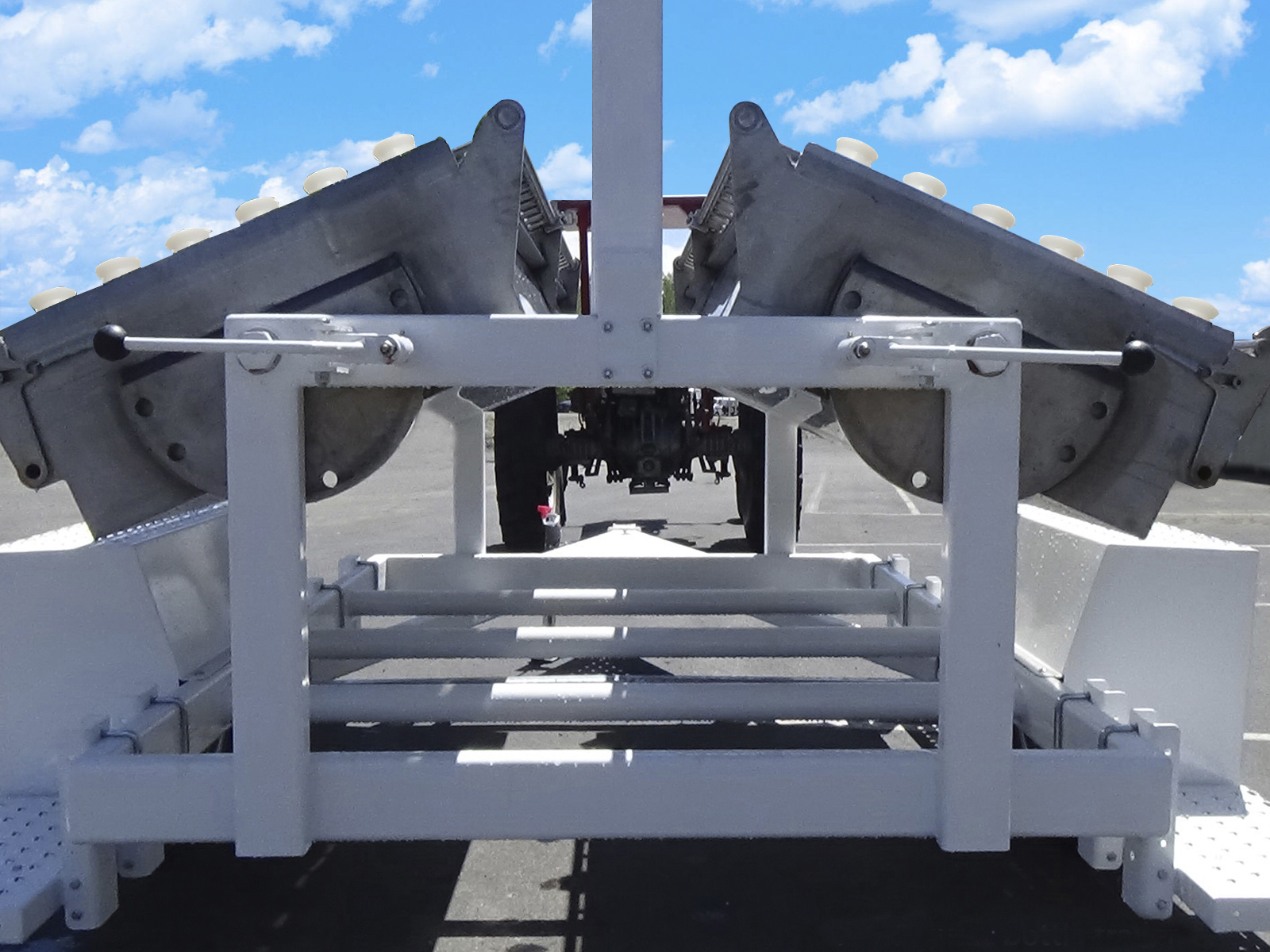

Operator friendly controls for easy pan rotation. Pans can be locked in multiple positions for easy bottle filling, feeding, cleaning and draining.
Heavy duty torsion suspension axles.

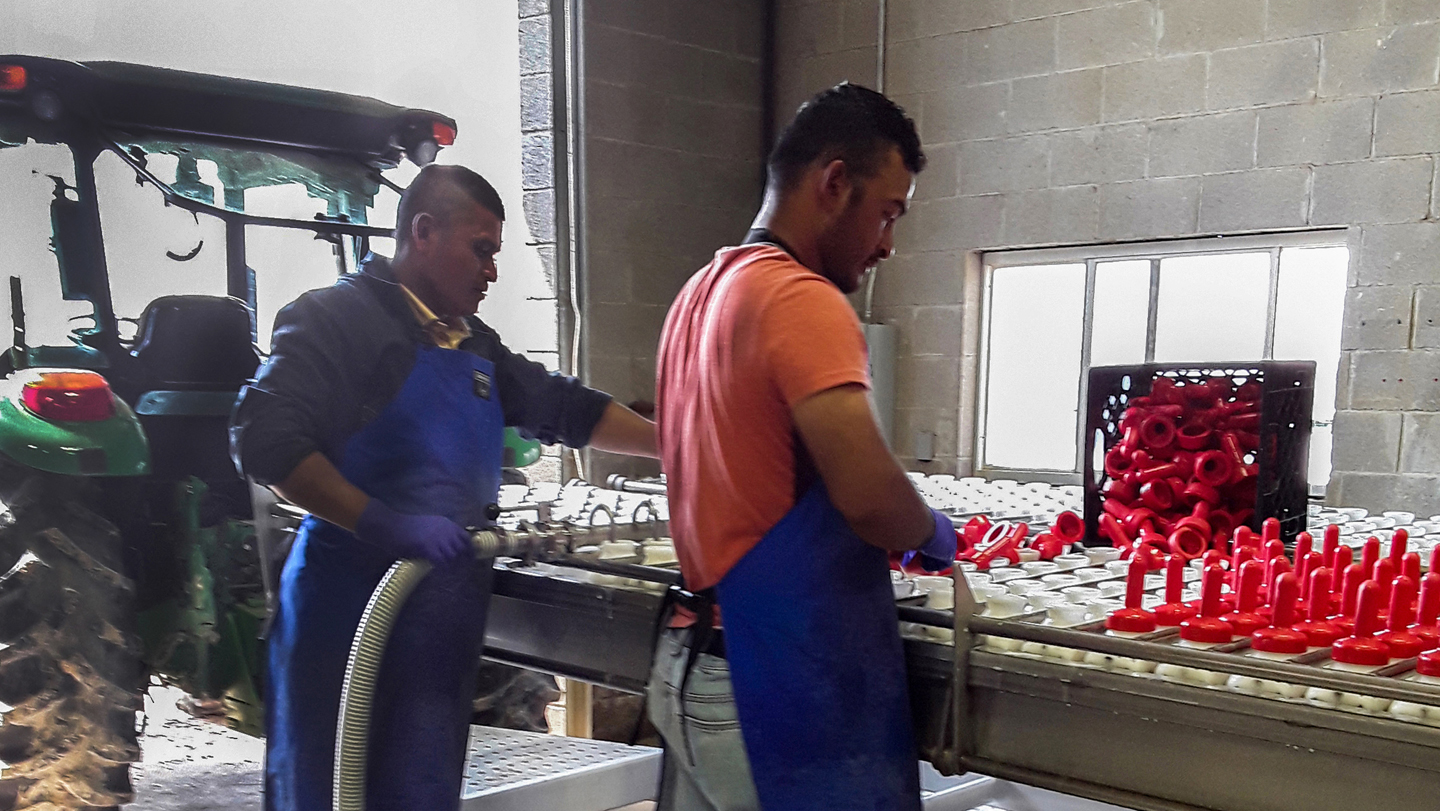

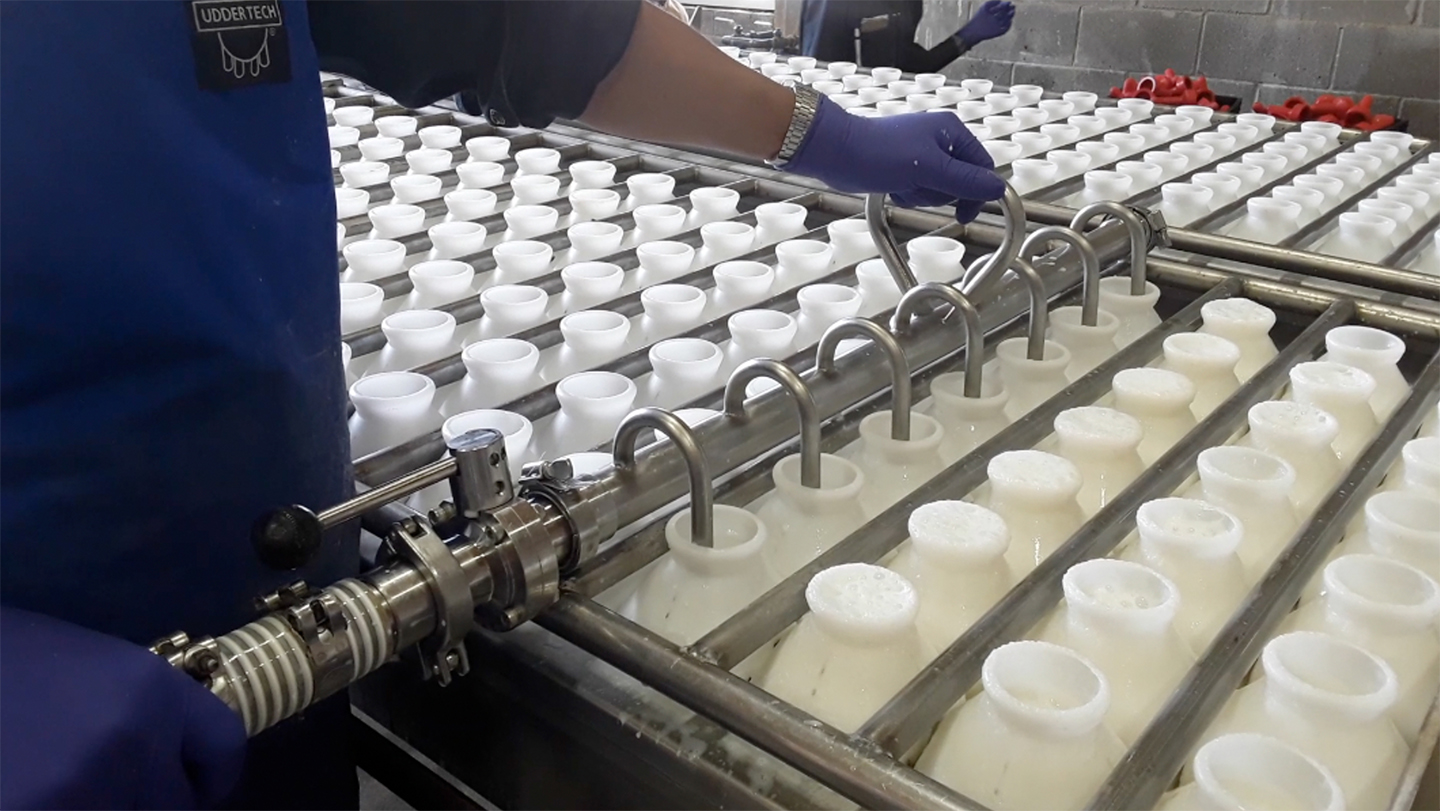

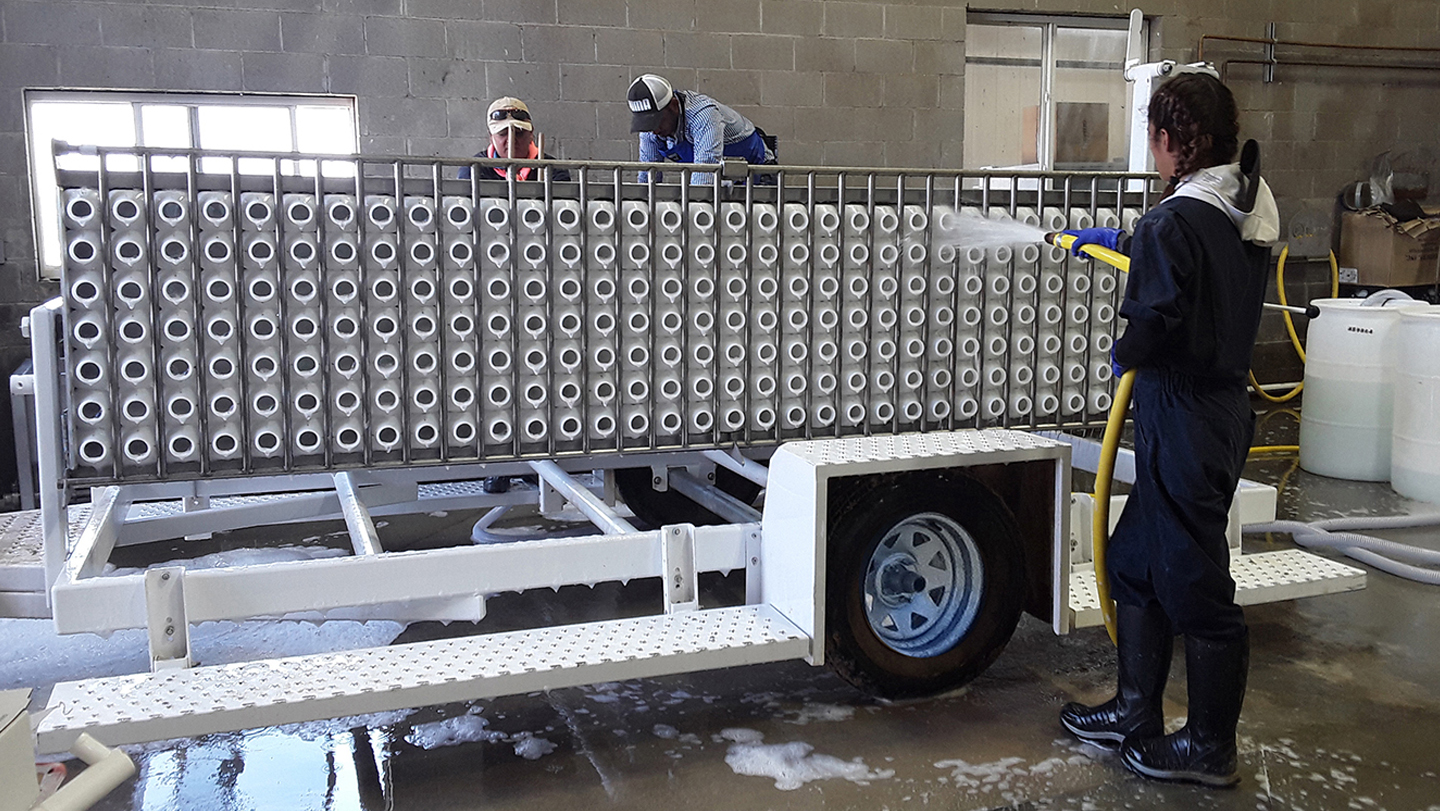

Our filling manifold makes it possible to fill the bottles quickly and without waste.

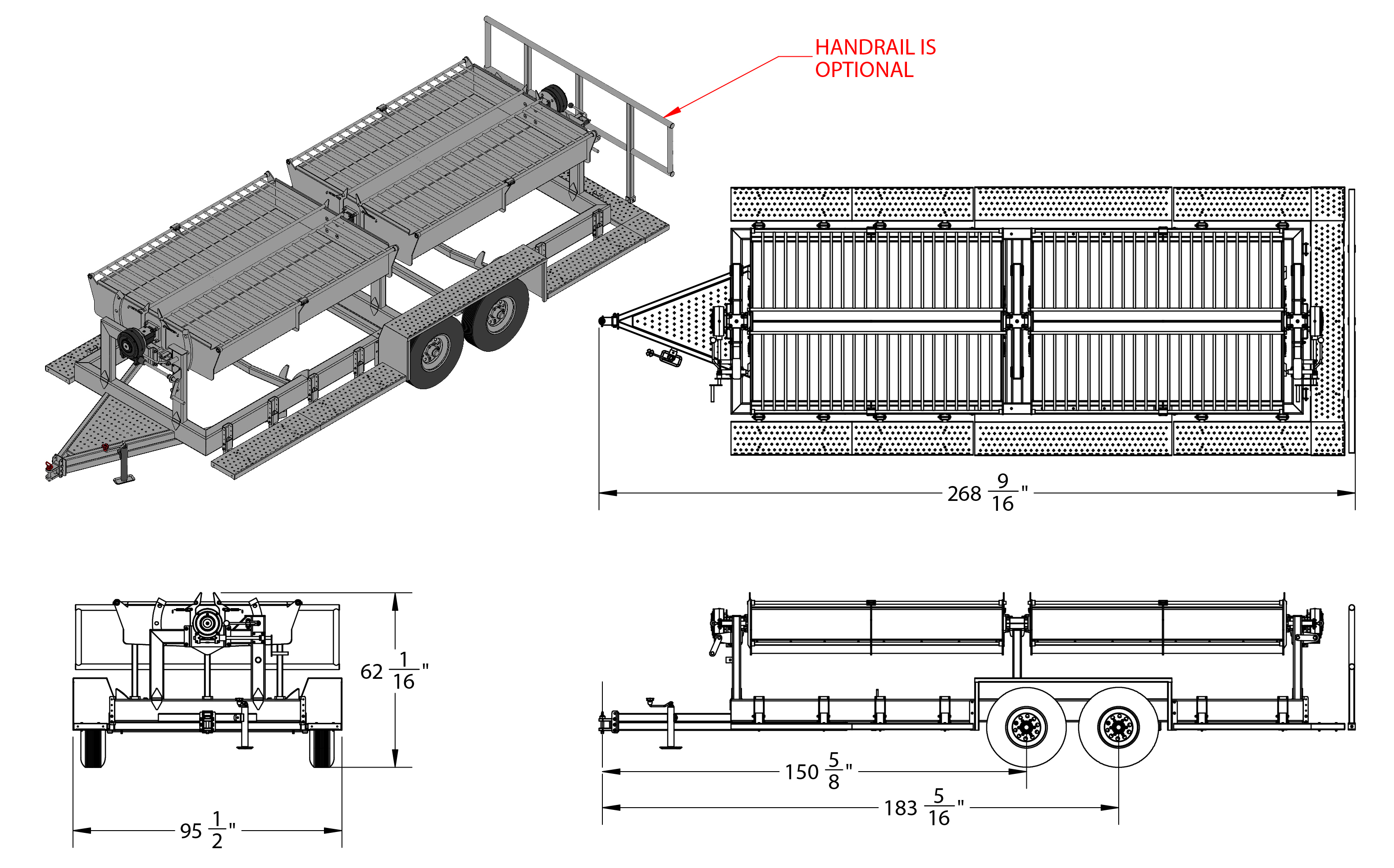

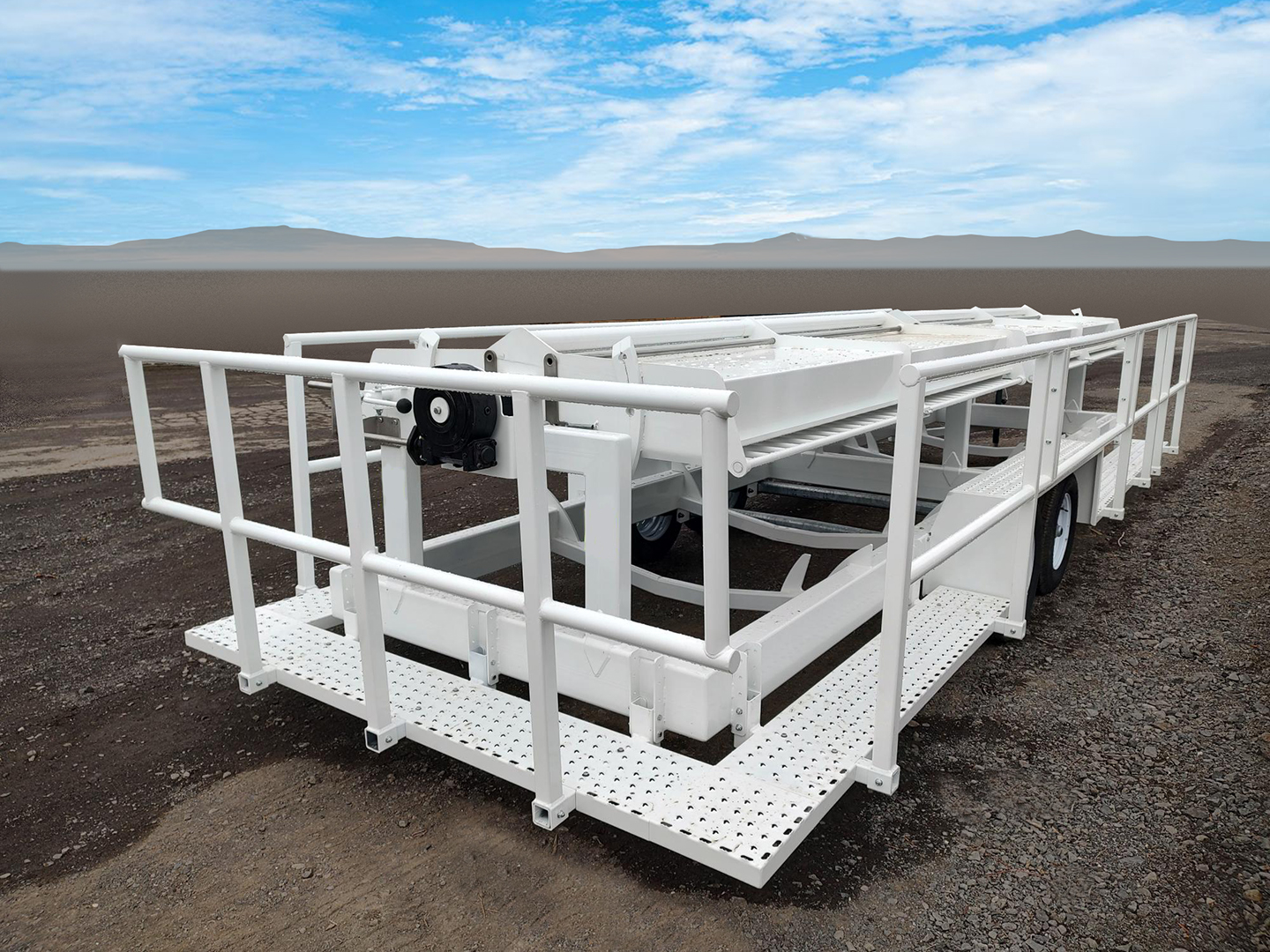

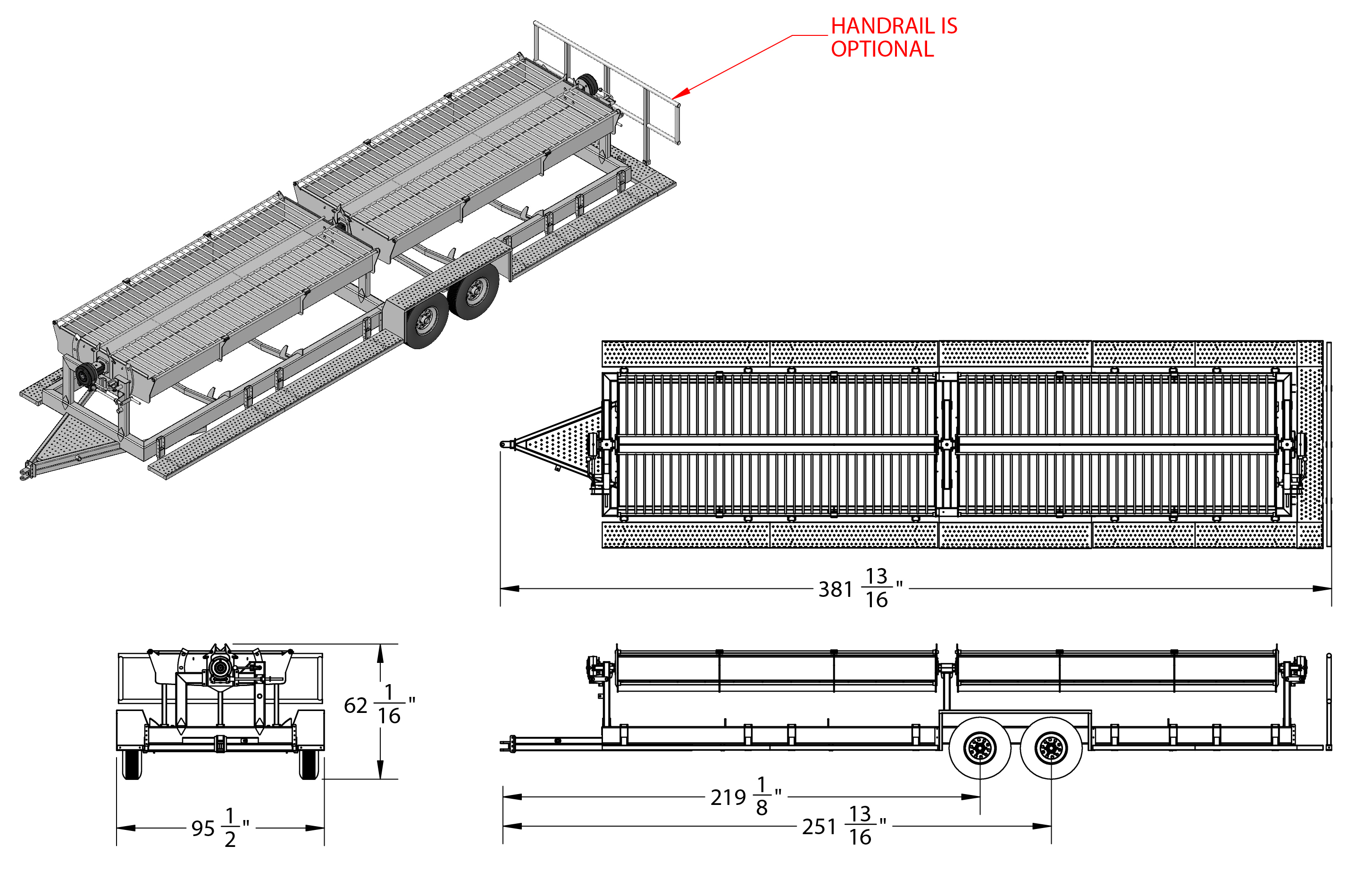

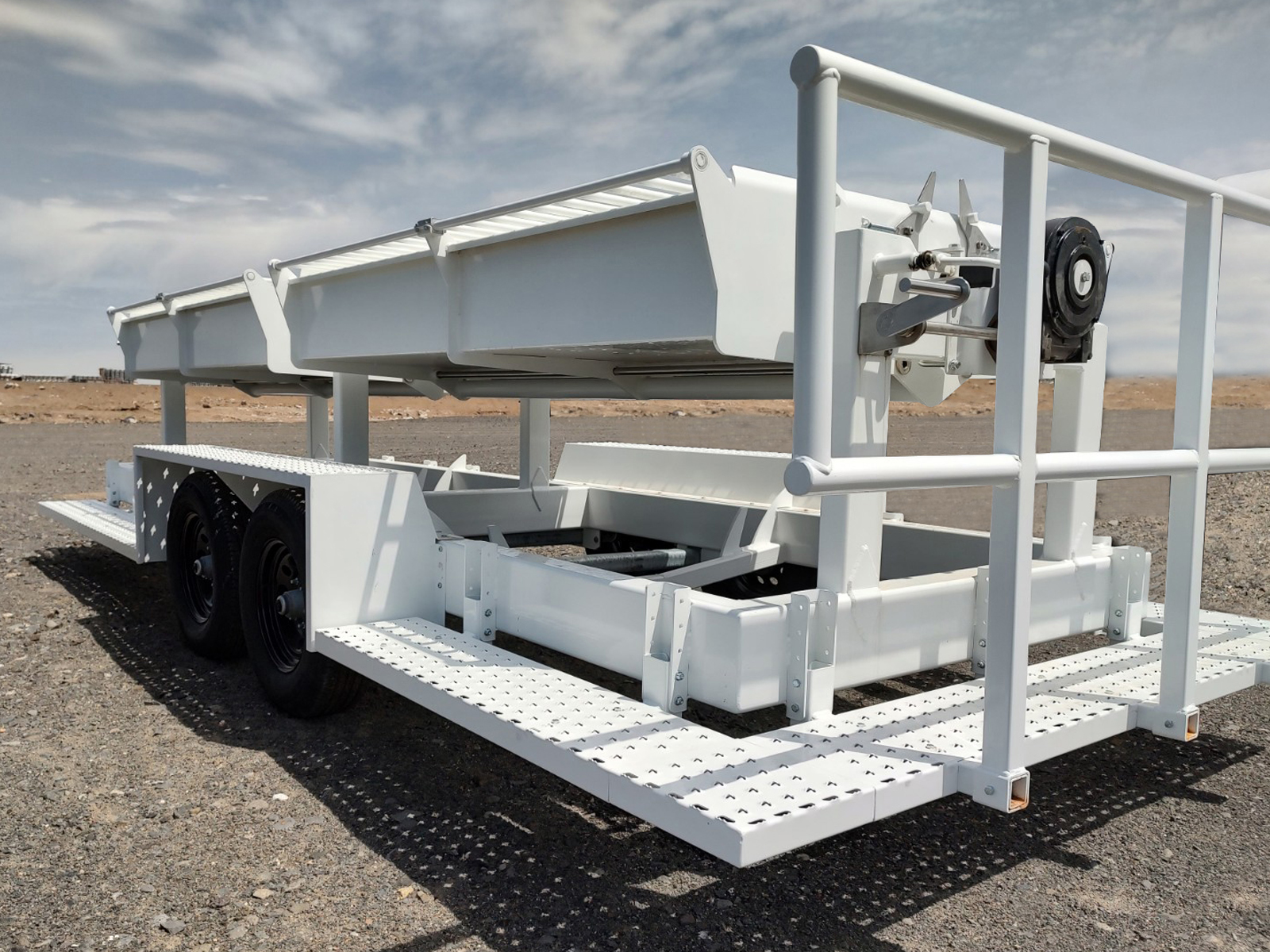

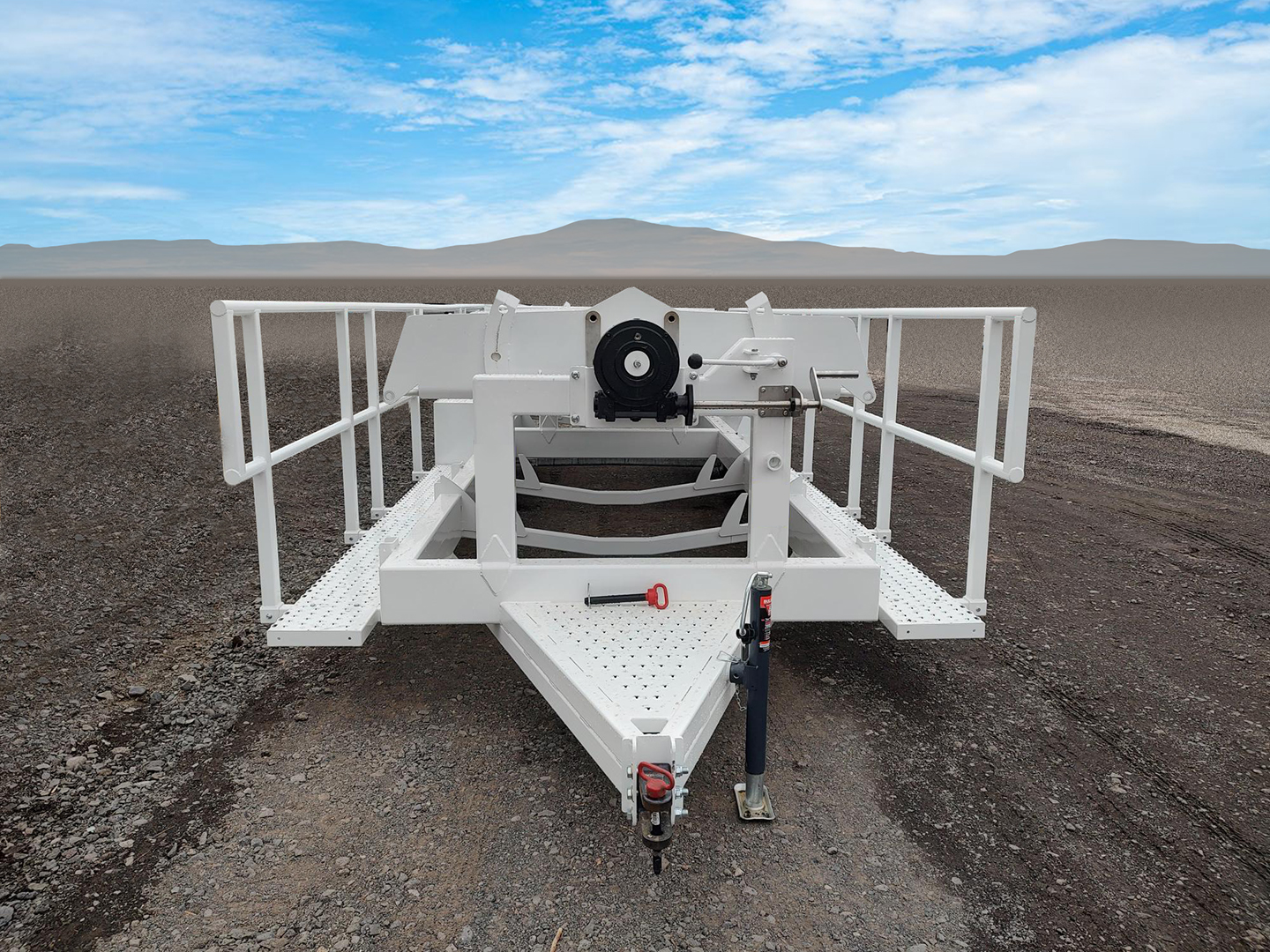

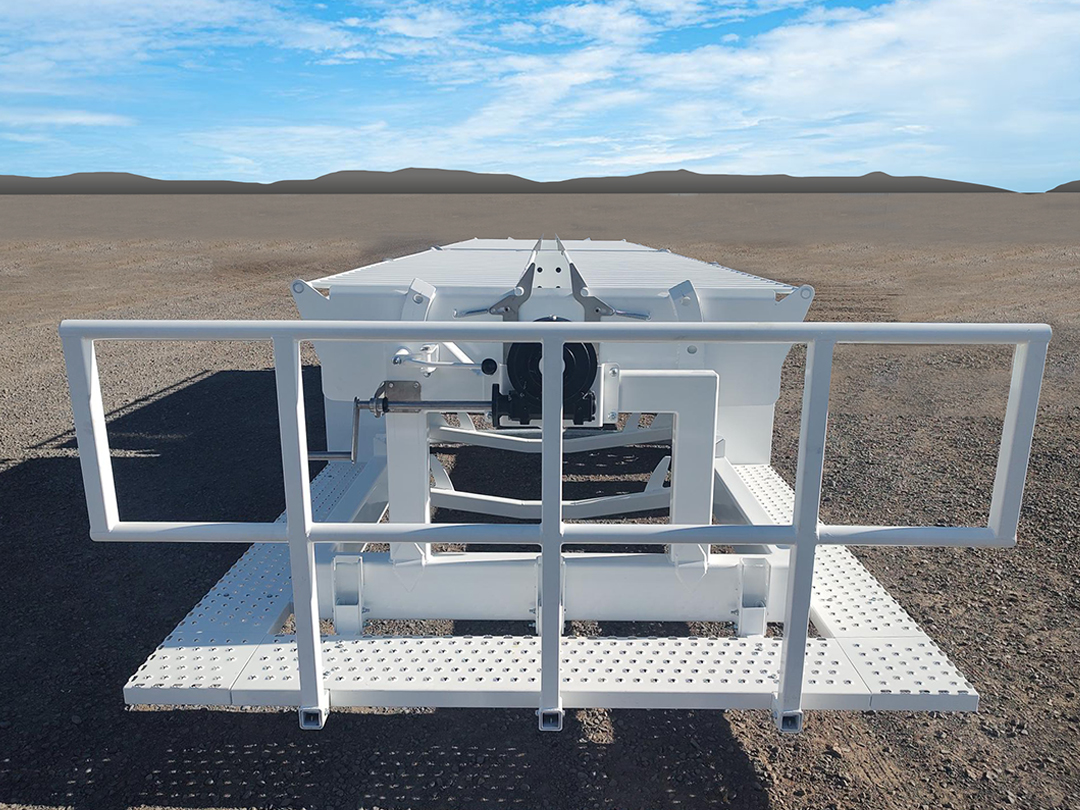

504 wide pan shown with optional handrail and wrap around running boards.

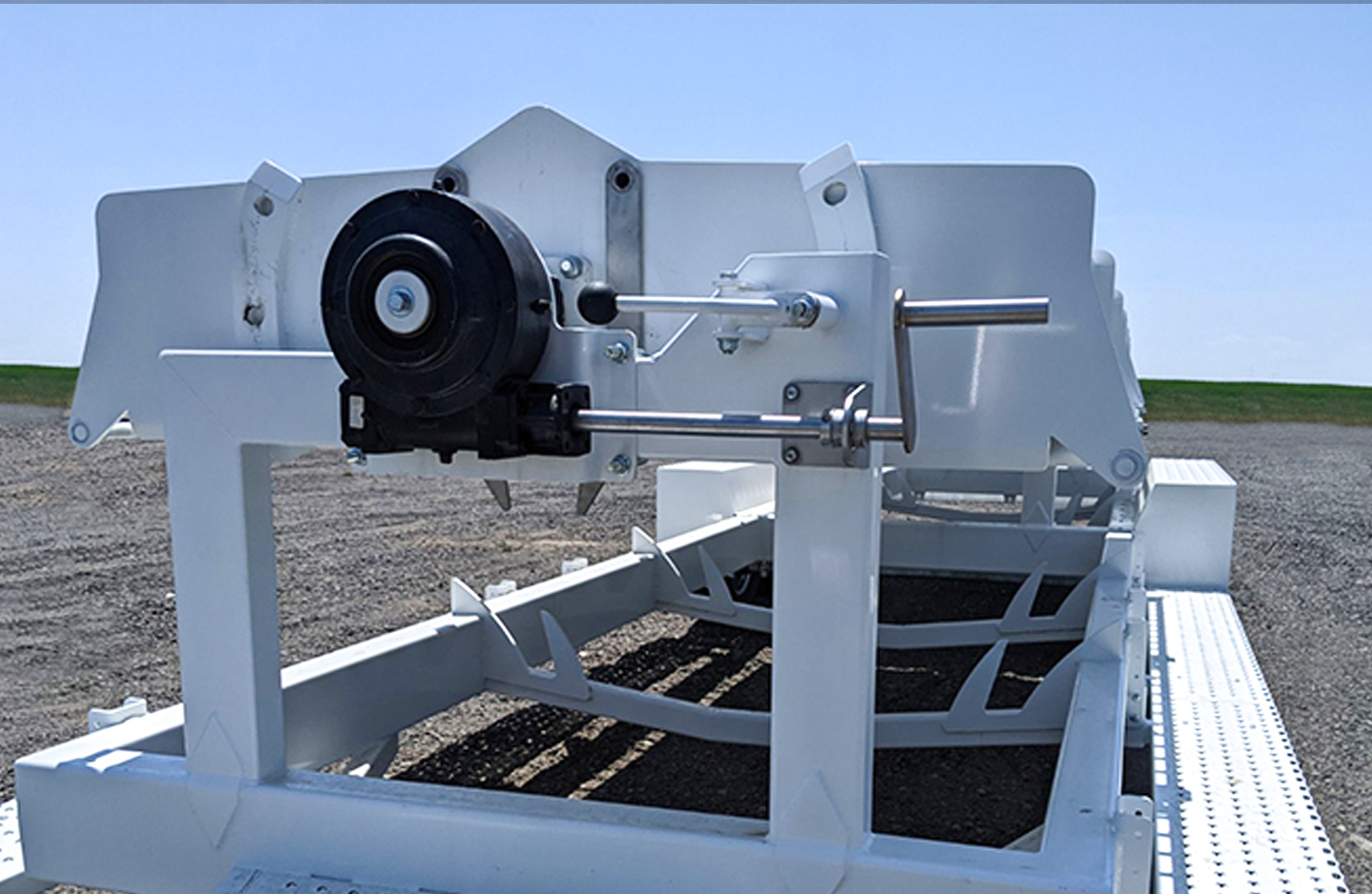

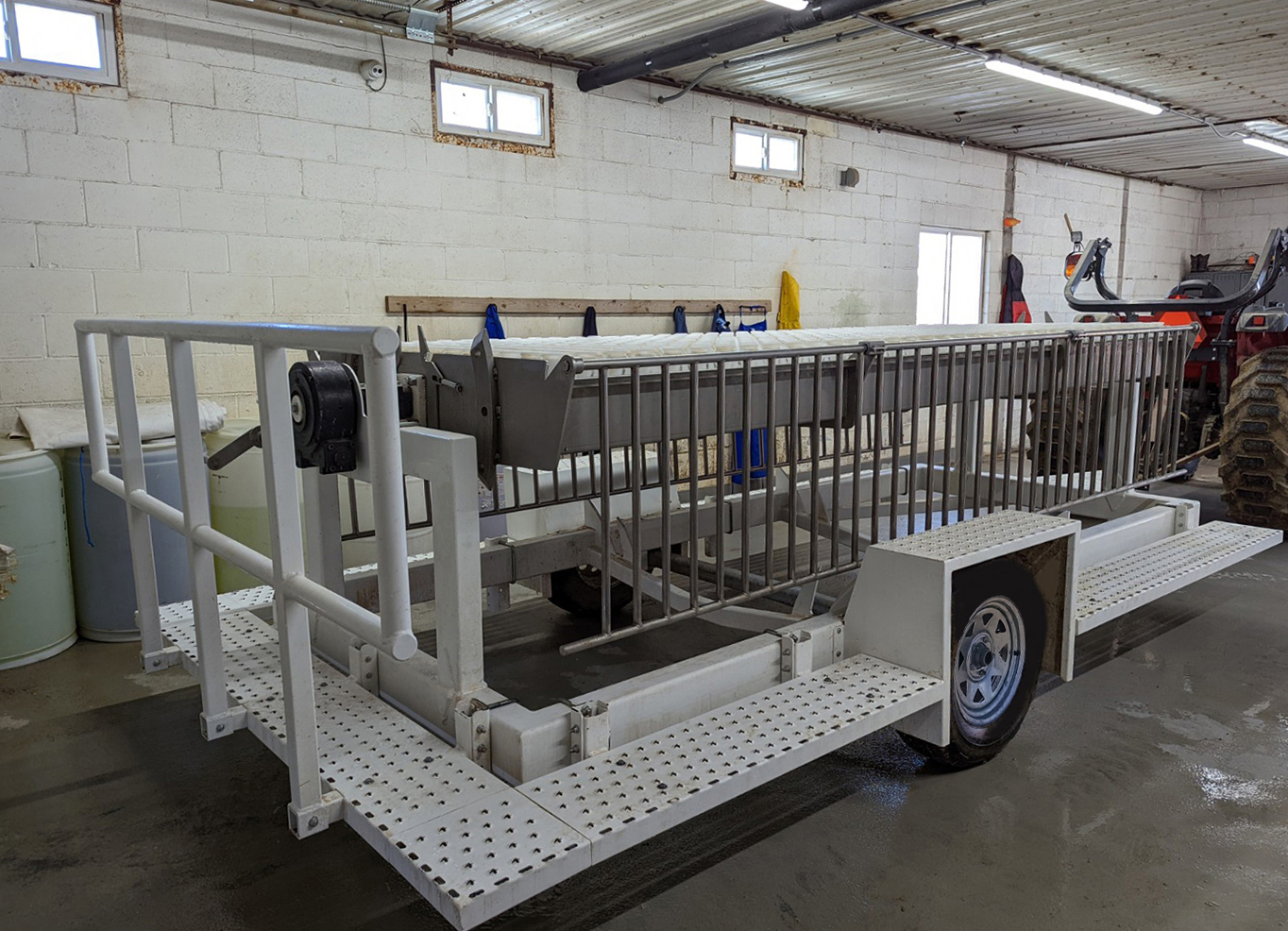

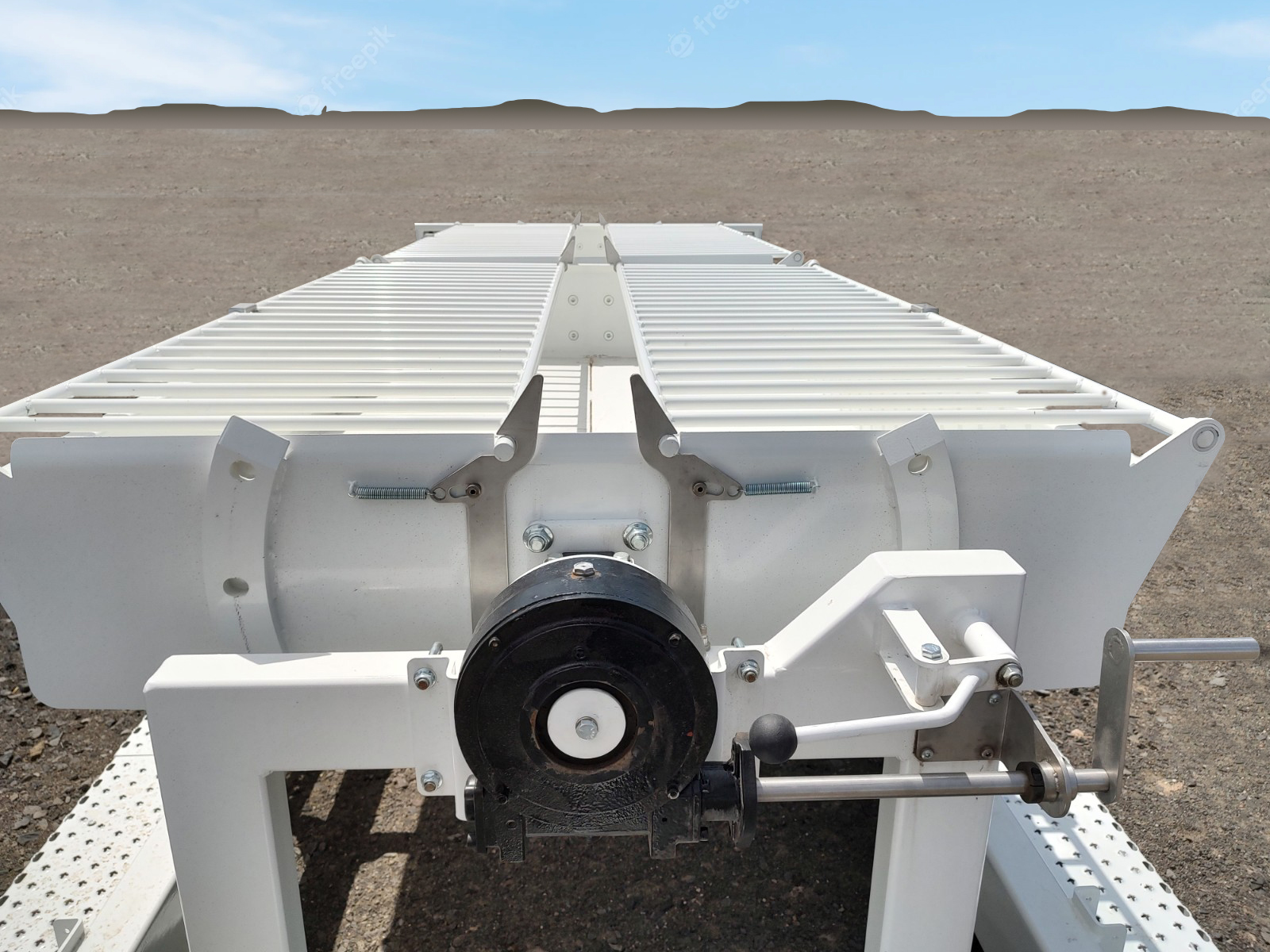

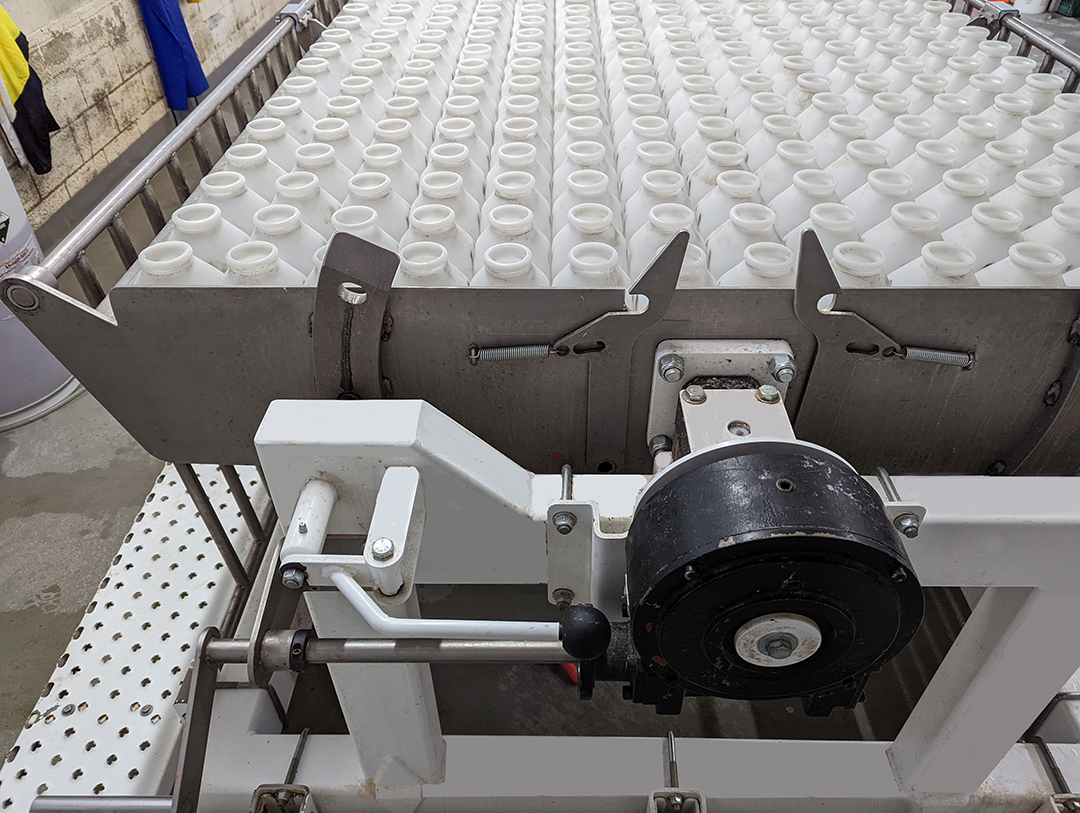

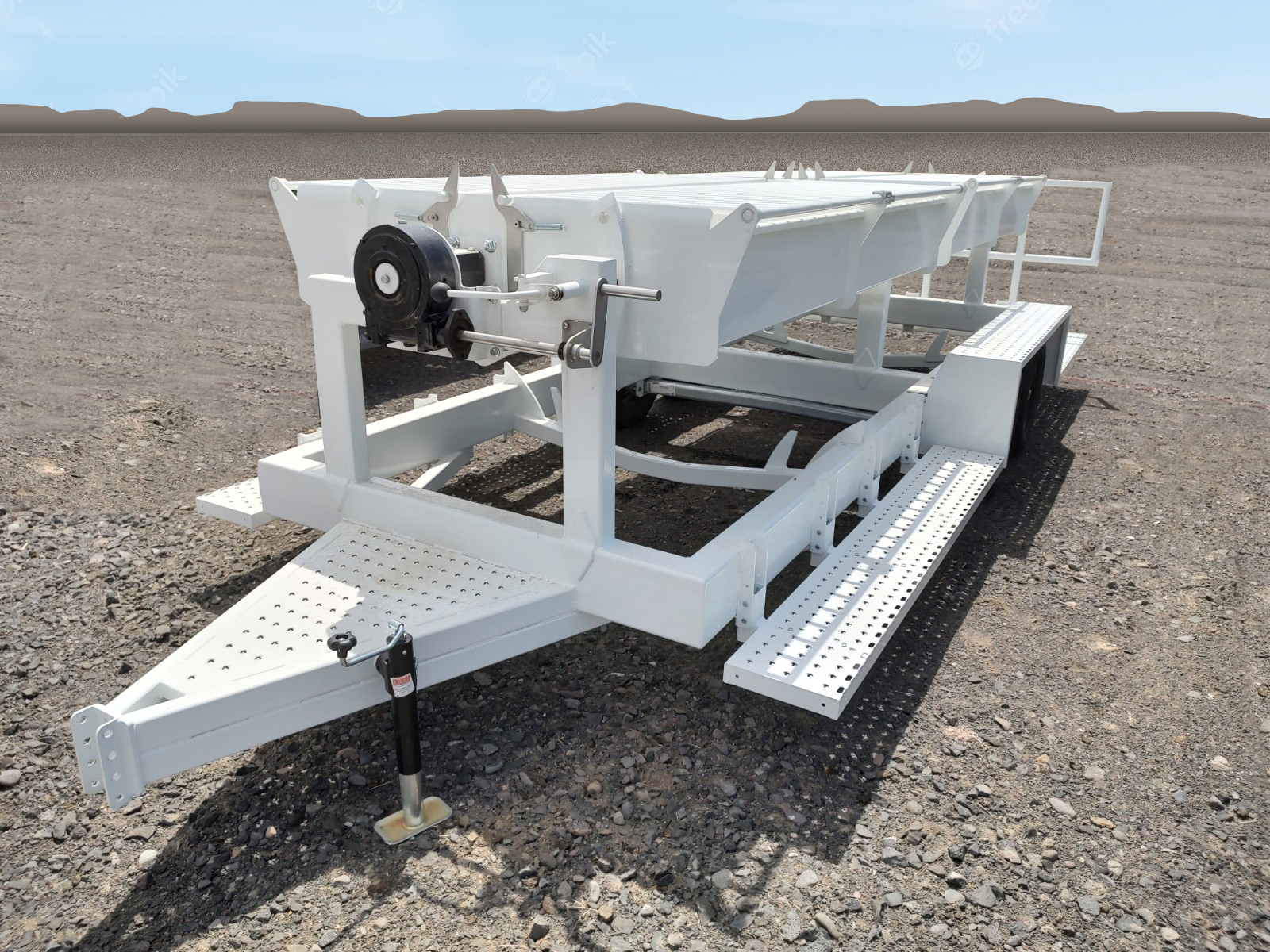

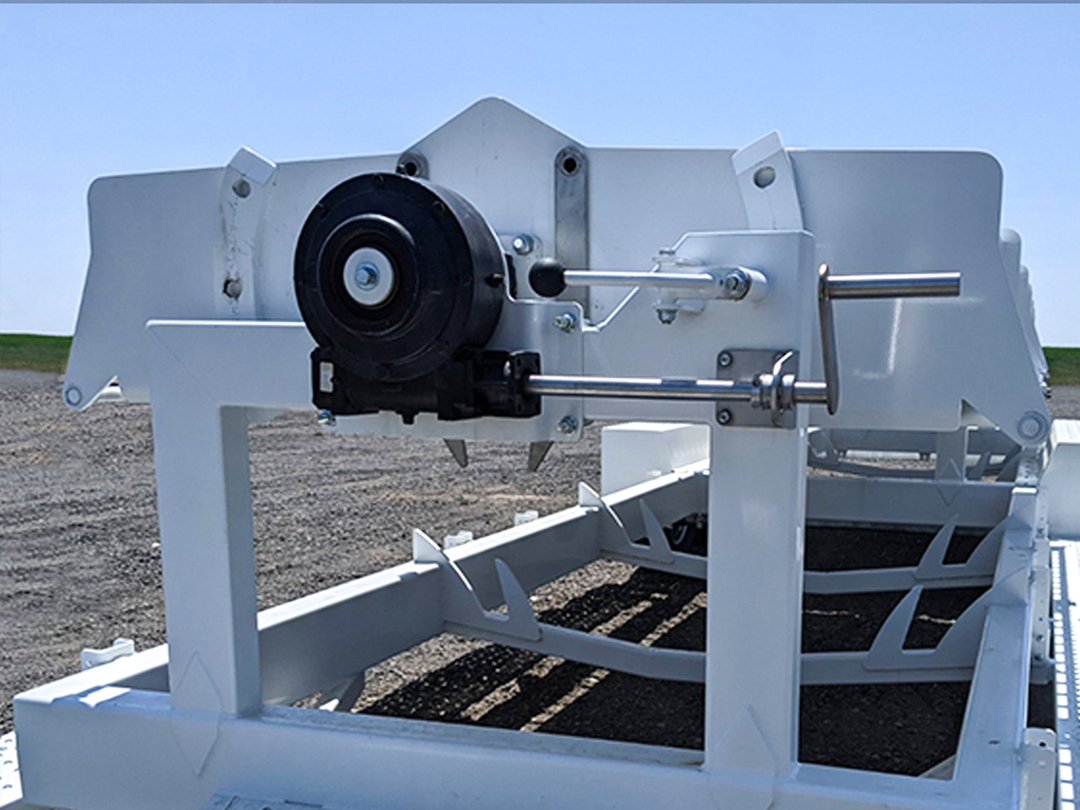

Wide pan trailers feature our exclusive crank handle system allowing one person to safely and easily rotate the pan.

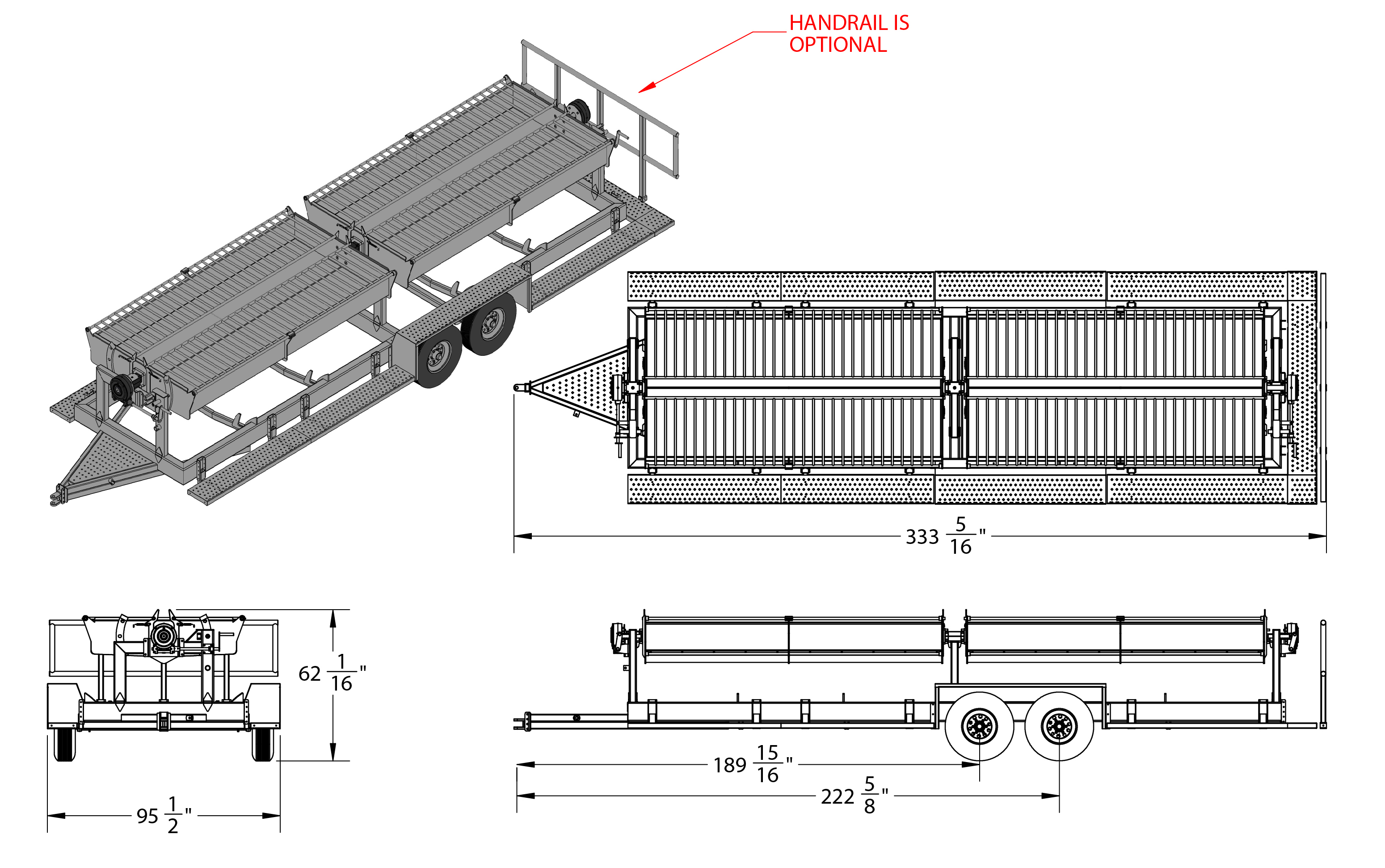

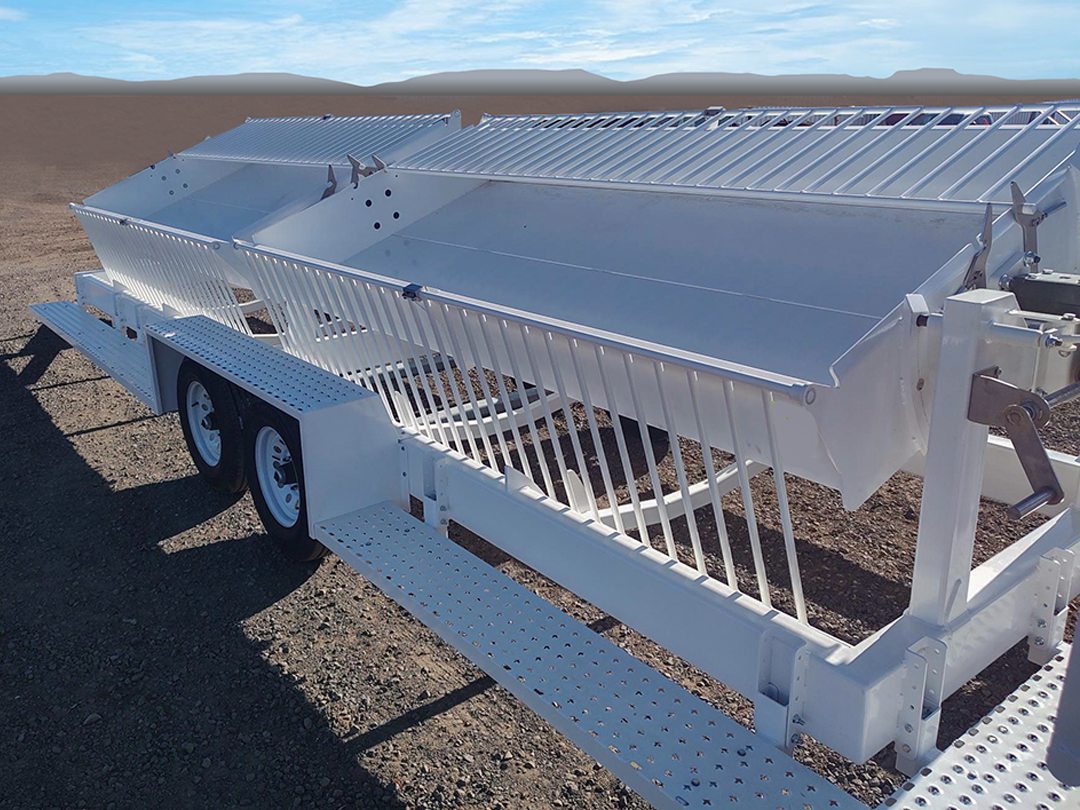

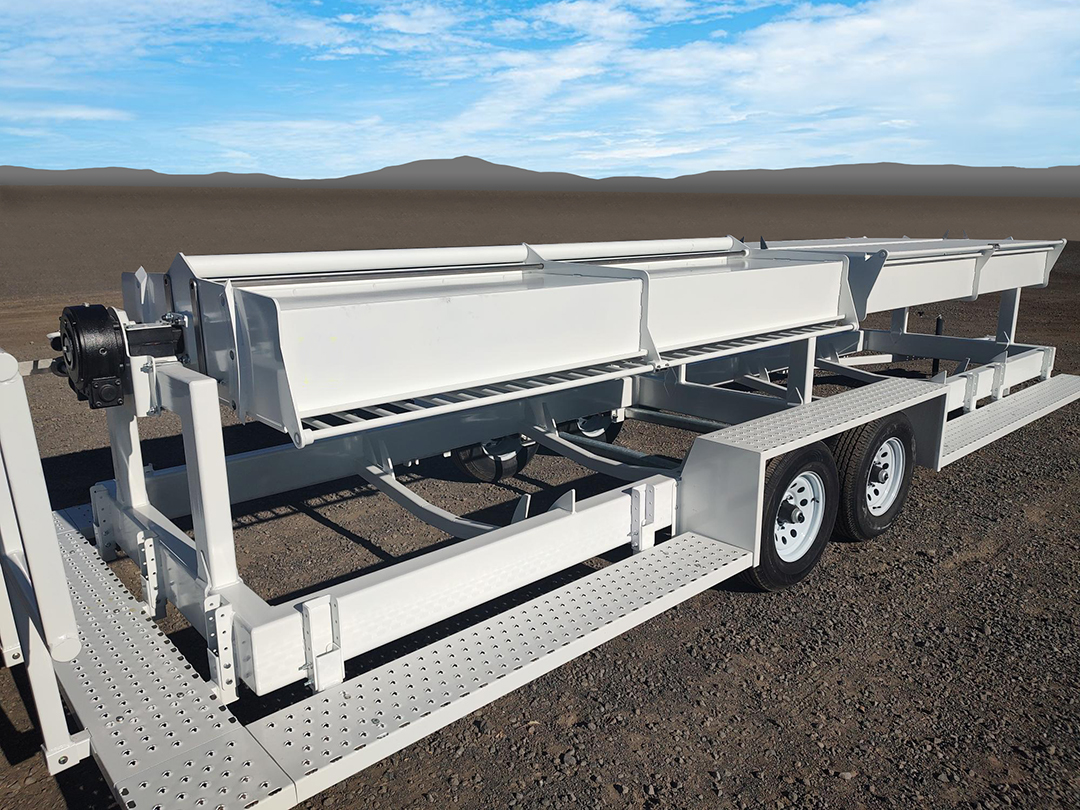

616, 840 and 1008 Wide Pan Bottle Trailers

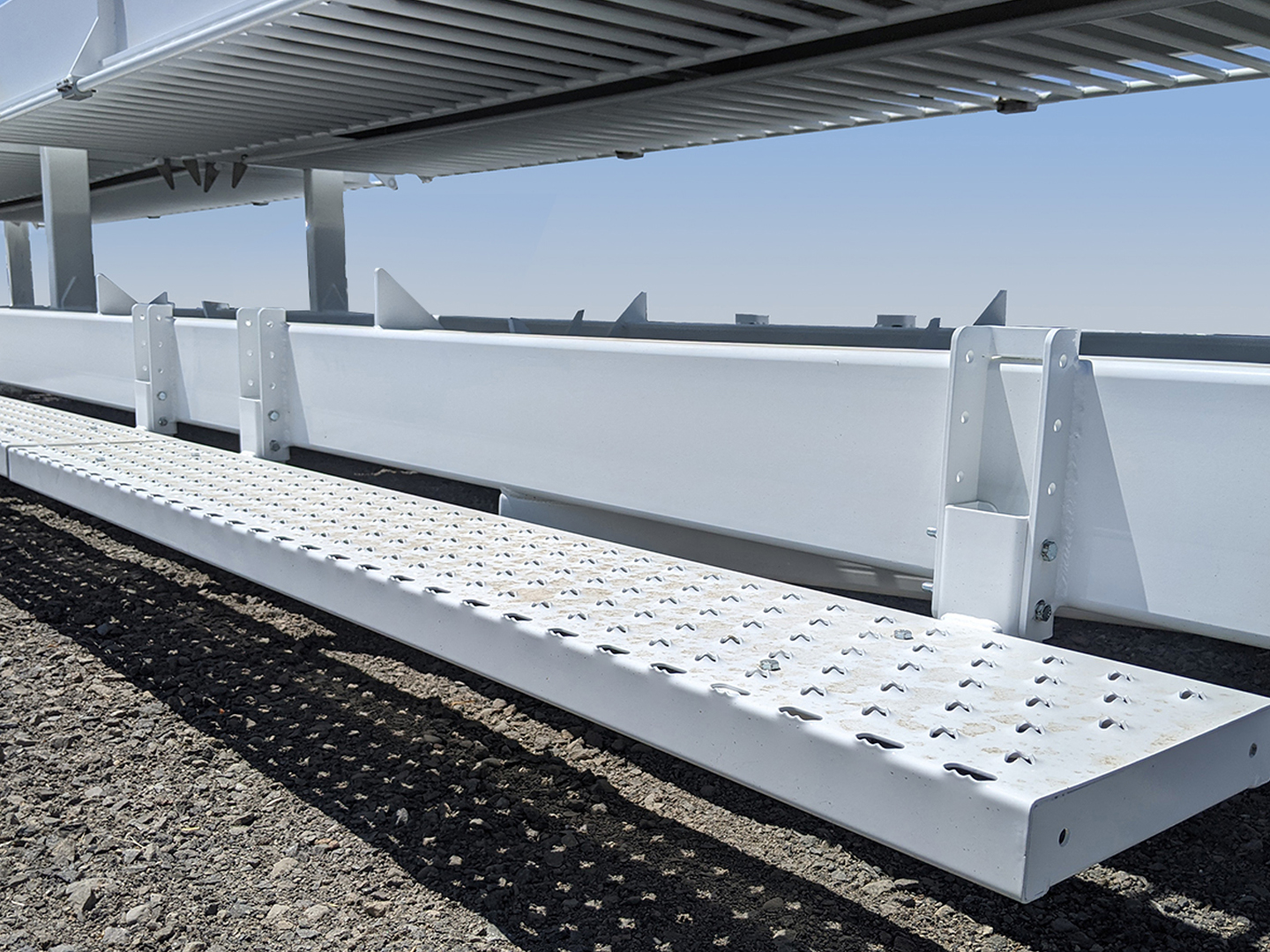

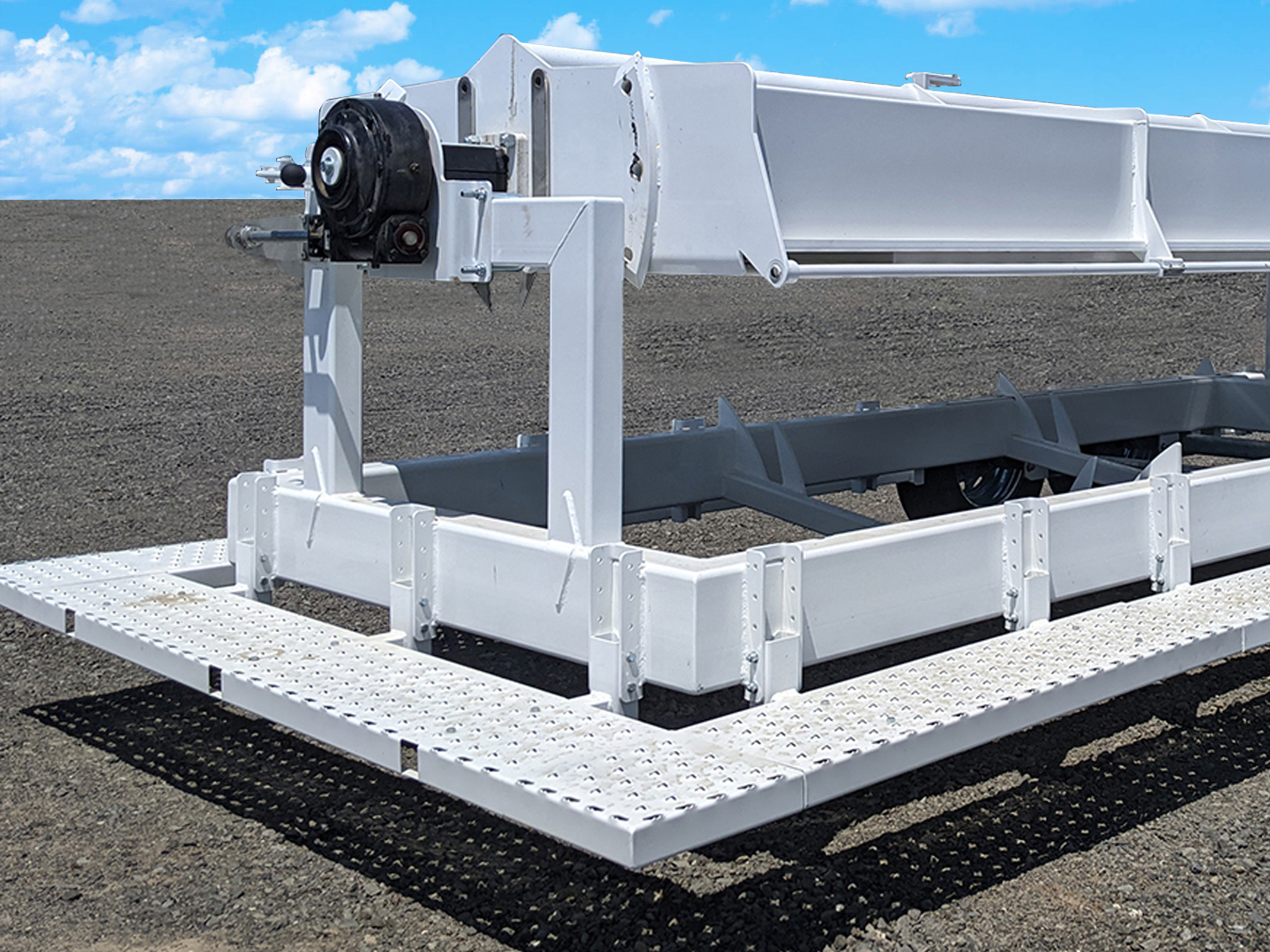

Full wrap-around running boards come standard on wide pan trailers.

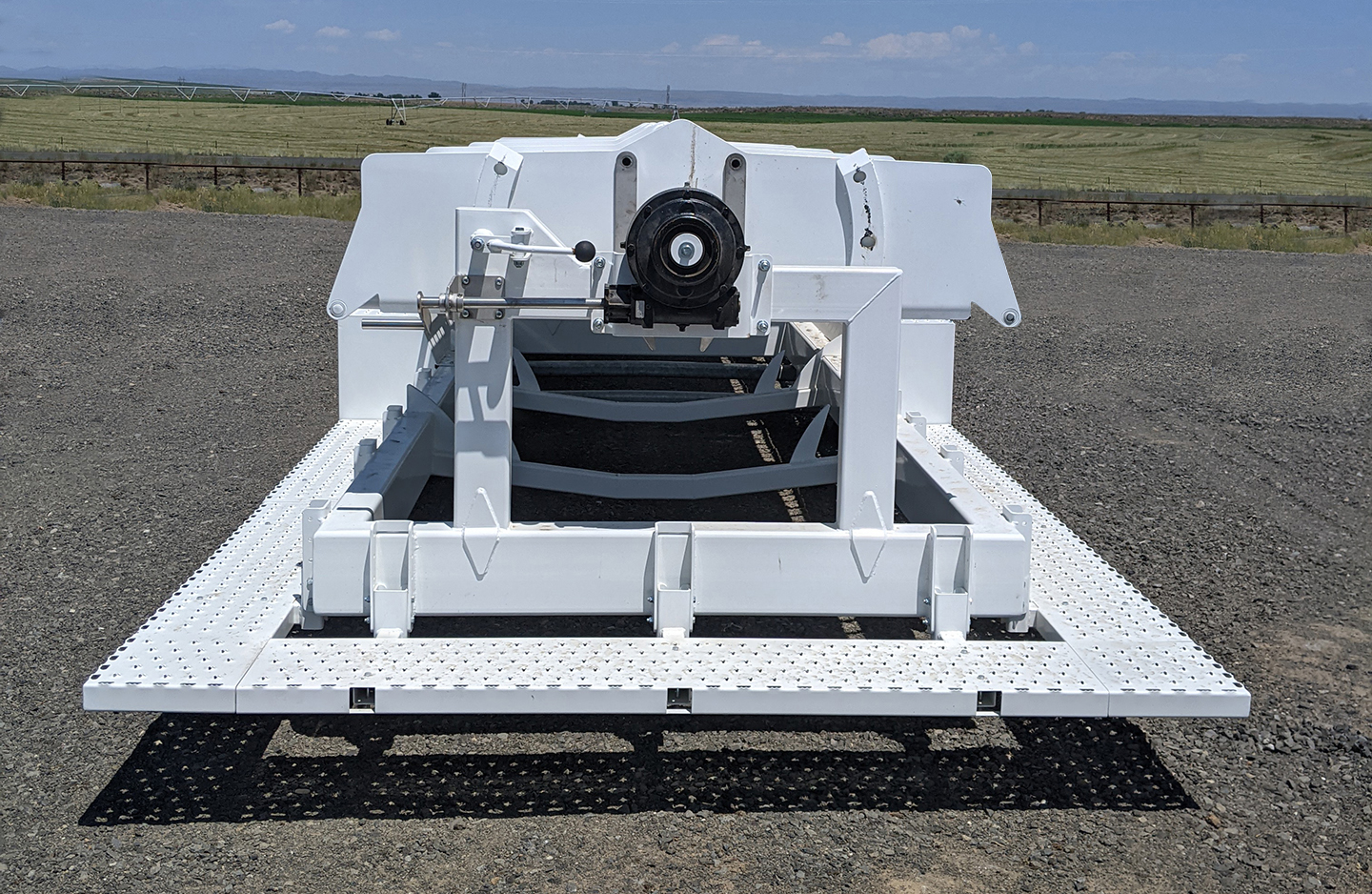

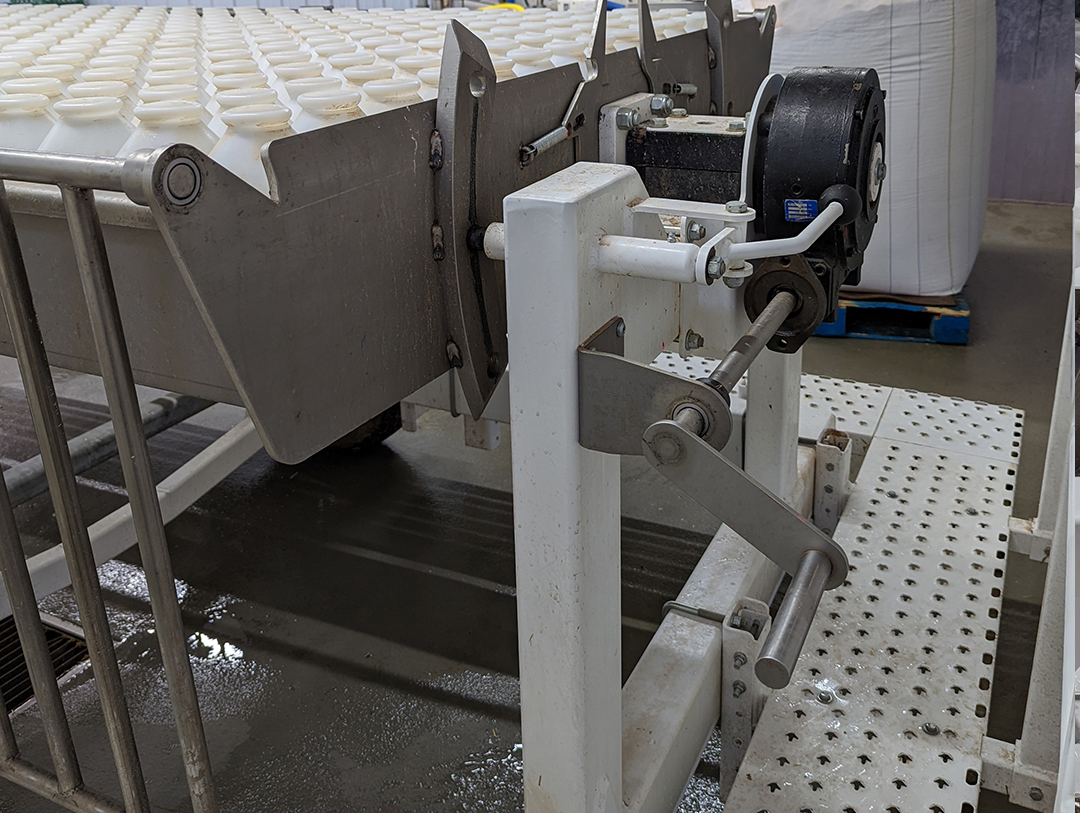

Exclusive crank handle system allows one person to safely and easily rotate the pan.

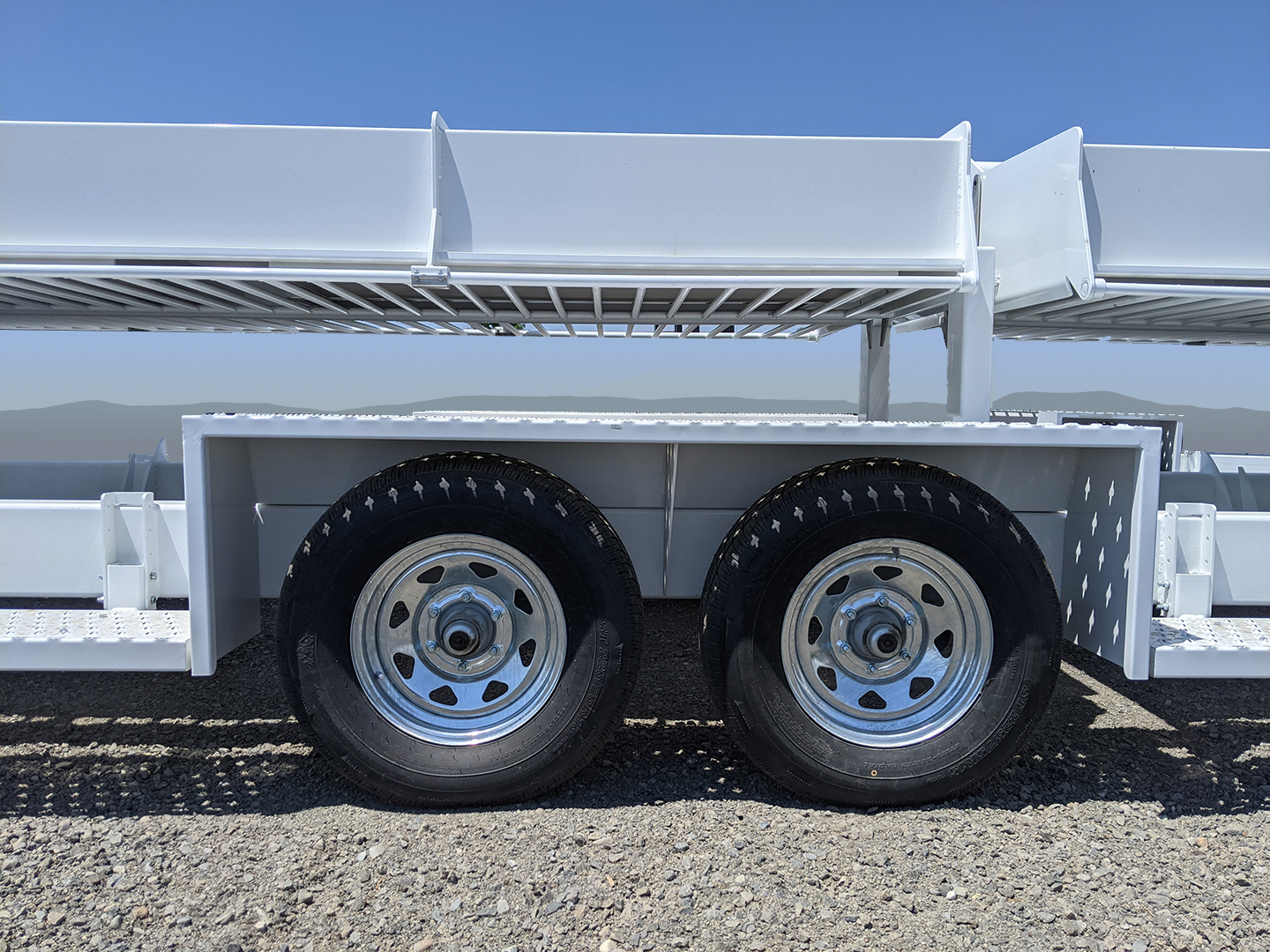

Heavy duty torsion suspension axles.
Adjustable, non-slip running boards with full fenders.
Pans can be locked in multiple positions for easy bottle filling, feeding, cleaning and draining.

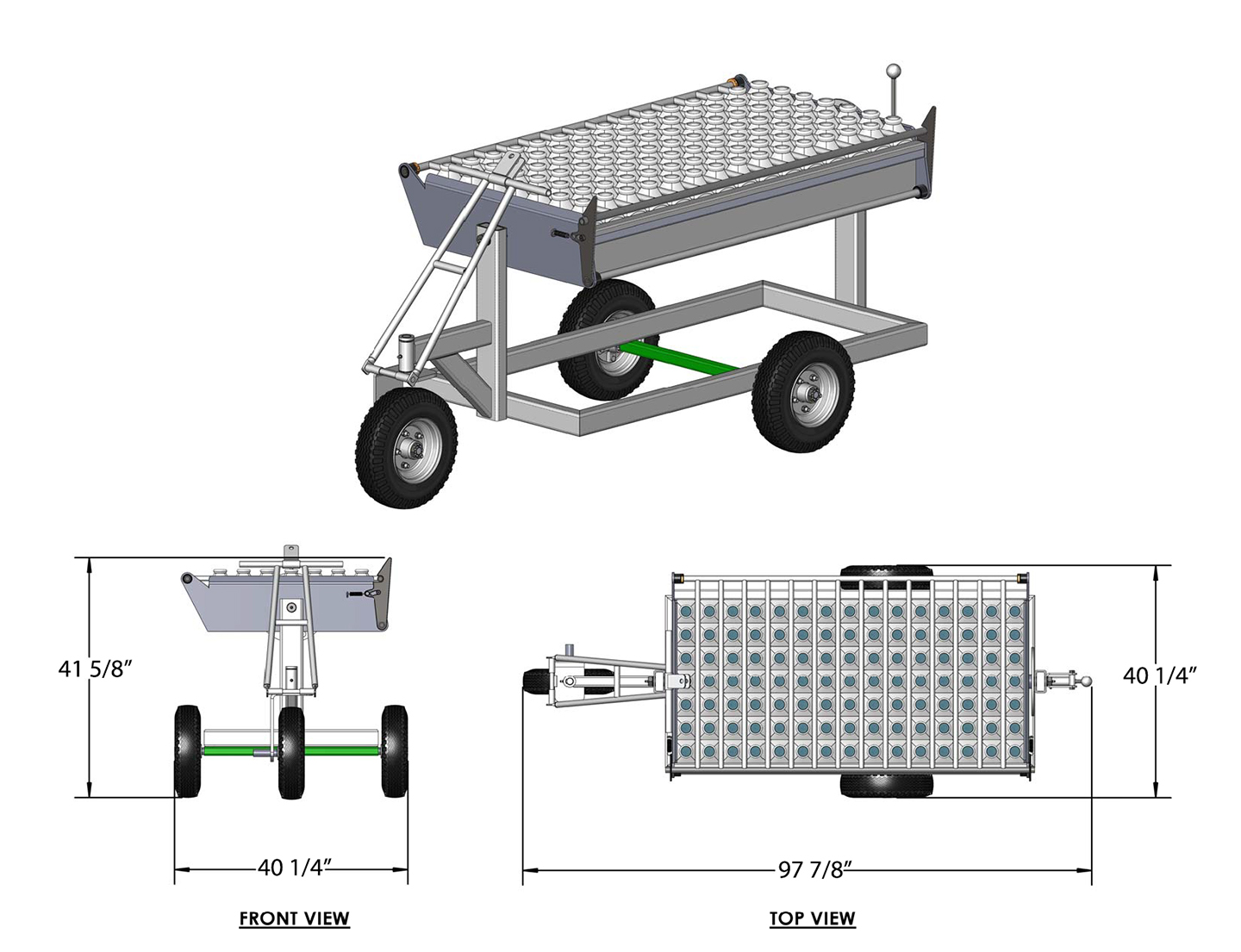

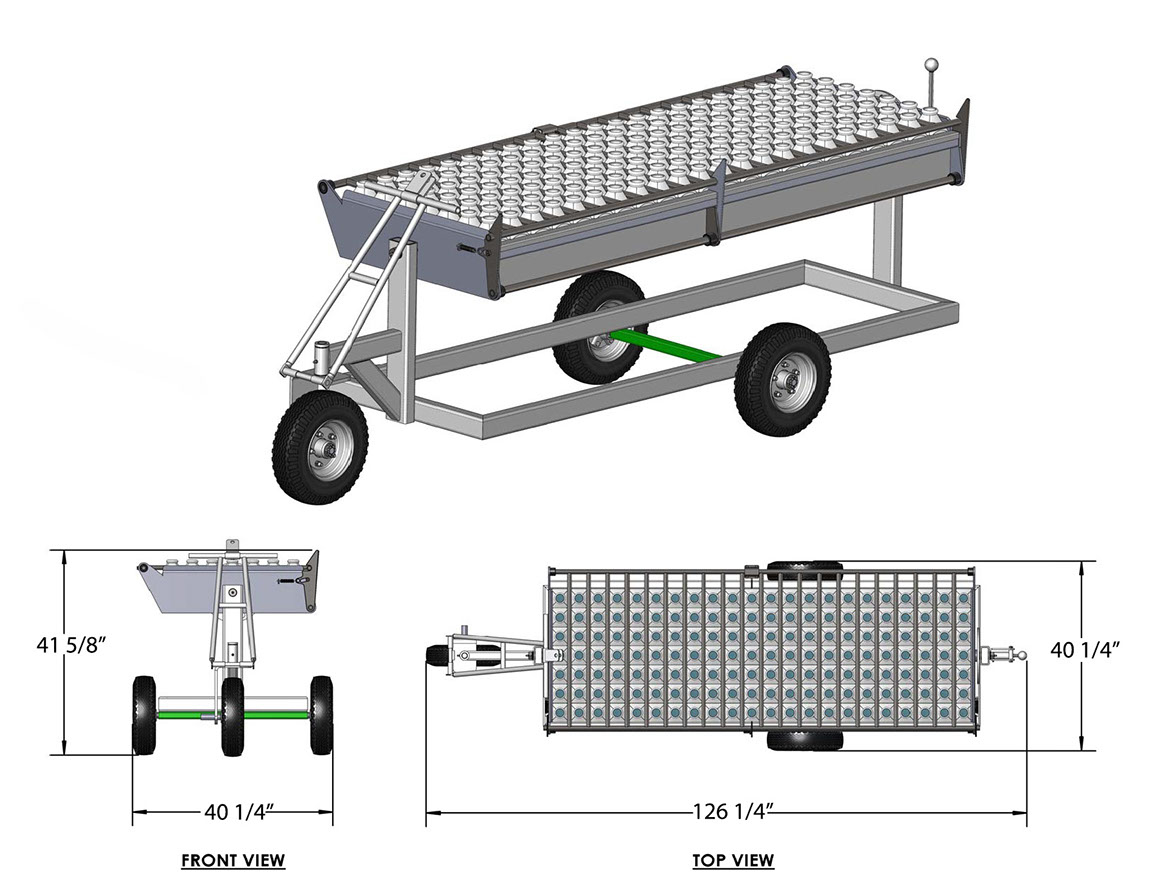

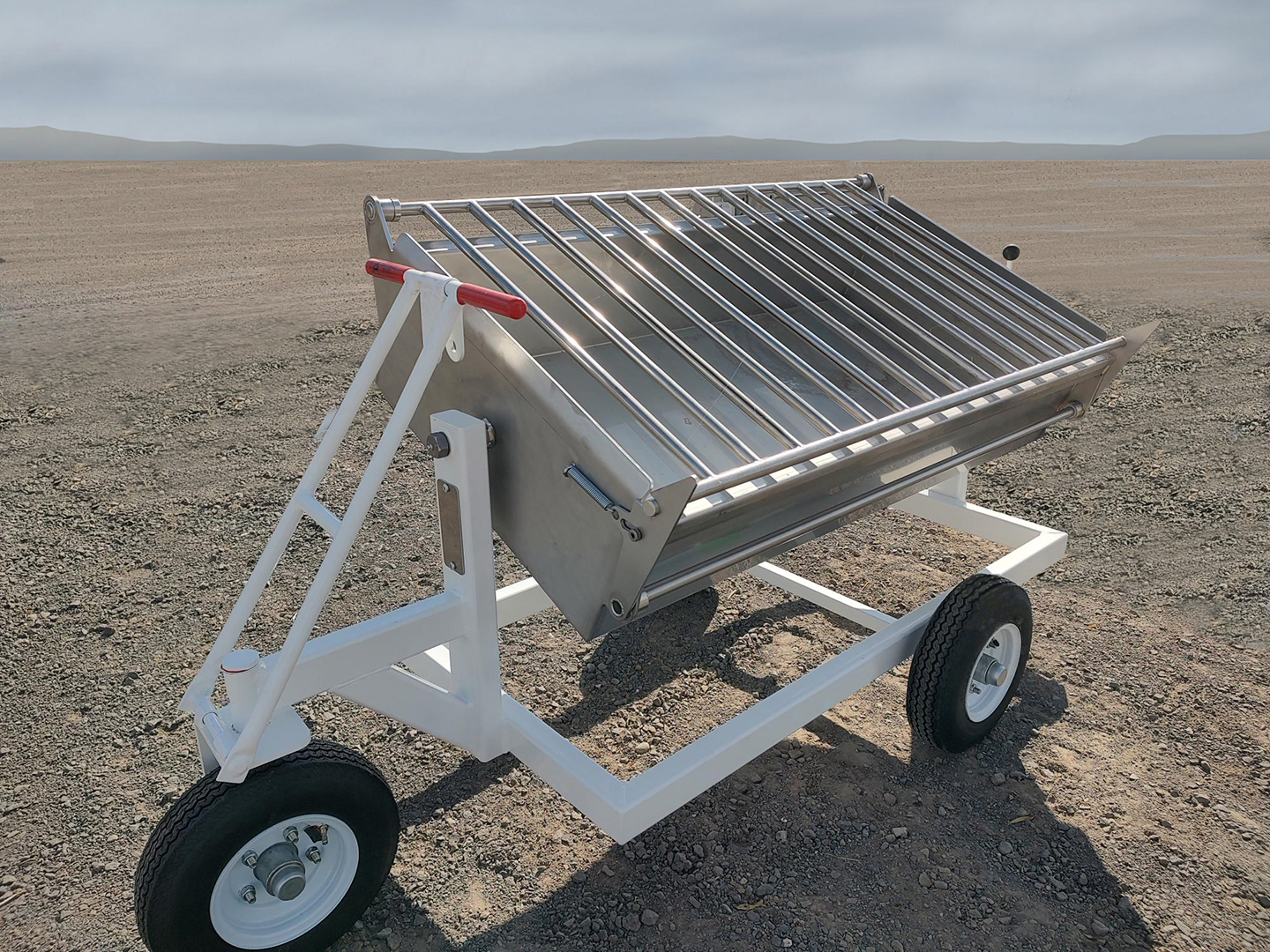

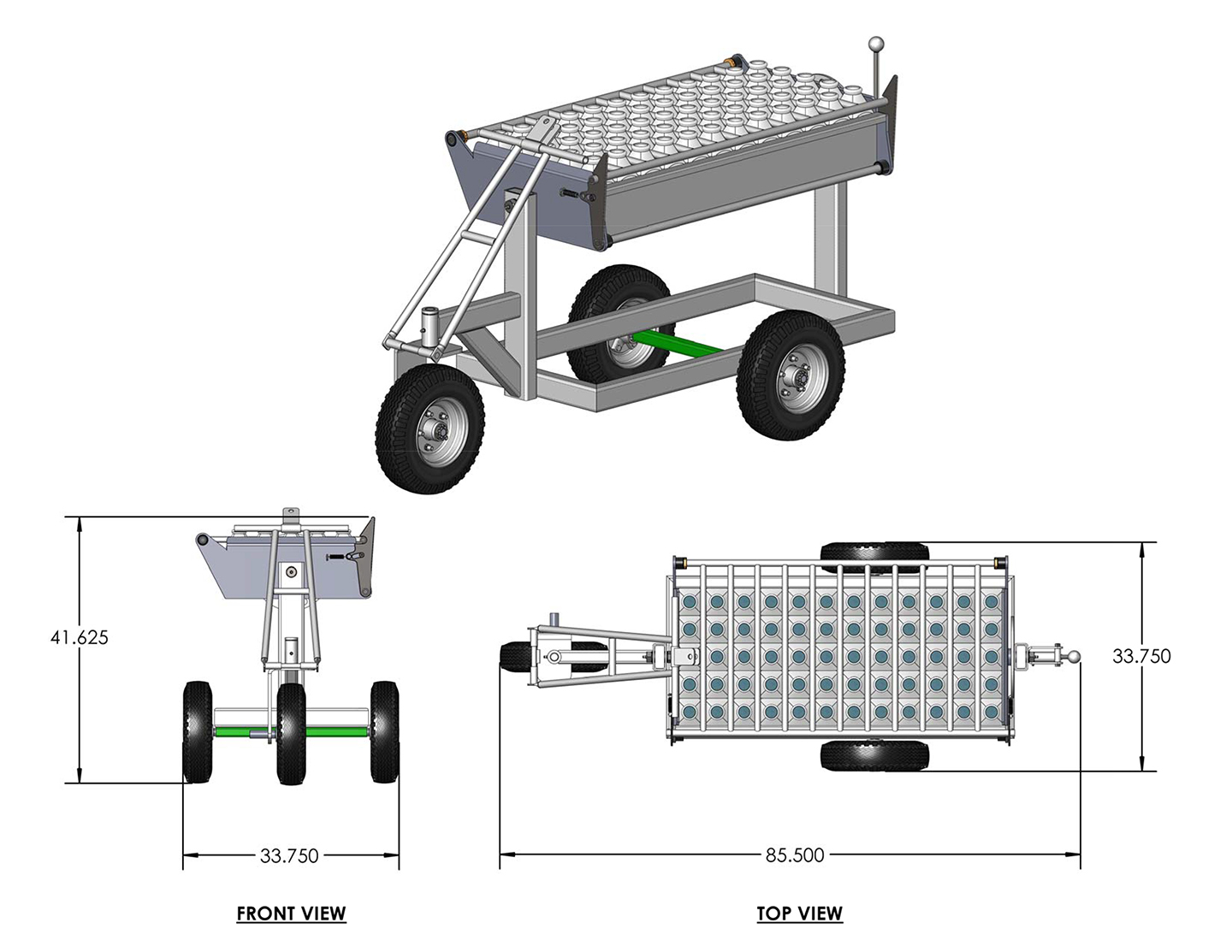

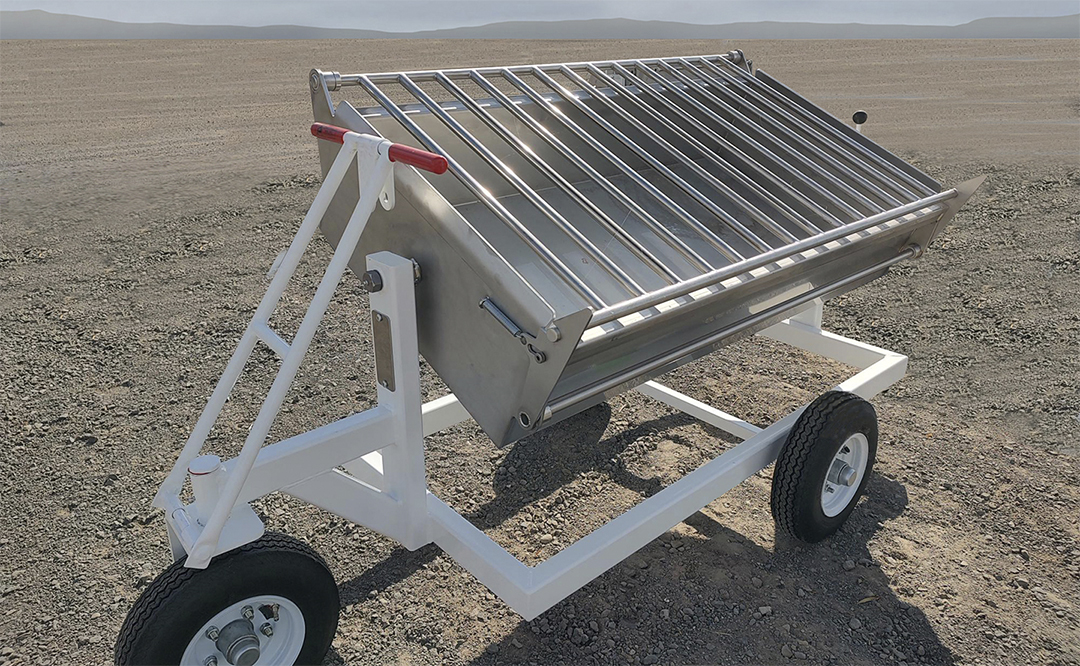

48 Bottle Trailer
60 Bottle Trailer
105 Bottle Trailer (Holds 105 - 2 or 3 qt bottles or 78 - 4 qt bottles)
154 Bottle Trailer (Holds 154 - 2 or 3 qt bottles or 114 - 4 qt bottles)
196 Bottle Trailer (Holds 196 - 2 or 3 qt bottles or 144 - 4 qt bottles)
252 Bottle Trailer (Holds 252 - 2 or 3 qt bottles or 186 - 4 qt bottles)
308 Bottle Trailer (Holds 308 - 2 or 3 qt bottles or 228 - 4 qt bottles)
392 Bottle Trailer (Holds 392 - 2 or 3 qt bottles or 288 - 4 qt bottles)
504 Bottle Trailer (Holds 504 - 2 or 3 qt bottles or 372 - 4 qt bottles)
616 Wide Bottle Trailer
840 Wide Bottle Trailer
1008 Wide Bottle Trailer
For Calf Bottle Trailers with Tricycle Wheel (Trikes)
5-Lug 3.5K Axle Hub & Bearing Kit - 6VH845VC1-ZL
66.93
5-Lug 3.5K Axle Bearing & Seal Kit - BK1-150
12.58
For Calf Bottle Trailers up to and including 392 Bottles
5-Lug 3.5K Axle Hub & Bearing Kit
80.83
5-Lug 3.5K Axle Bearing & Seal Kit - BK1-150
12.58
For Calf Bottle Trailers 504 Bottles and Up
6-Lug 6K Axle Bearing & Seal Kit - BK3-100
23.69
6-Lug 6K Axle & Bearing Kit - 8-213-9VC1-E2
130.17
Other Calf Bottle Trailer Parts
Set of Pan Rack Center Bushings
130-3020 - 2 pcs per set
16.20
Pan Rack Latch Bolt
#90298A705
8.16
Pan Rack Center
Bushing Cover with Bolts
6.51
Rack Latch Spring - 651CS
5.82
1 1/2" Large Pan Pivot Bolt #130-3016 (includes pivot bolt, 2 ss washers, keeper bolt, grease zirk)
66.14
1" Small Pan Pivot Bolt #130-3017 (includes pivot bolt, 2 ss washers, keeper bolt, grease zirk)
56.14
8 1/2" Long Narrow Pan Latch Pin #A01589P-01 (includes spring, pin and flange nut)
62.78
11 1/4" Long Narrow Pan Latch Pin #132-3030 (includes spring, pin and flange nut)
85.50
Pan Latch Release Handle (Long)
Pan Latch Release Handle (Short - for wide pan trailers)
64.34
1 1/2" Pan Pivot Bushing, 1 1/2" VHMW, Bottle Trailer, Large Pan Bushing - #130-3022
9.52
Rack & Rack Latch Pivot Bushing
16.99
1" Cast Clevis Hitch - 3 Hole
59.50
Hitch Pins for Clevis Hitch
Various Sizes
5.17
