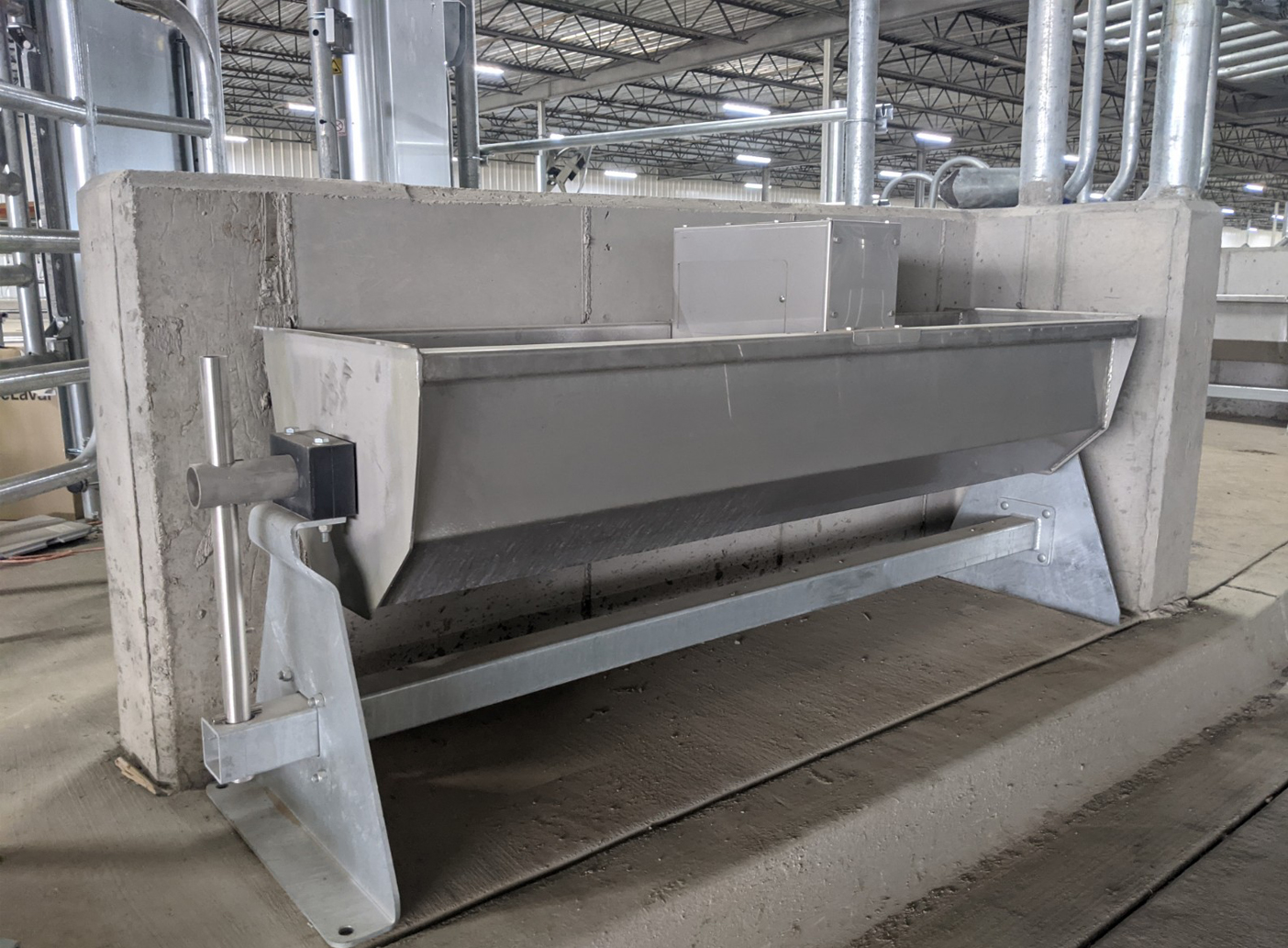

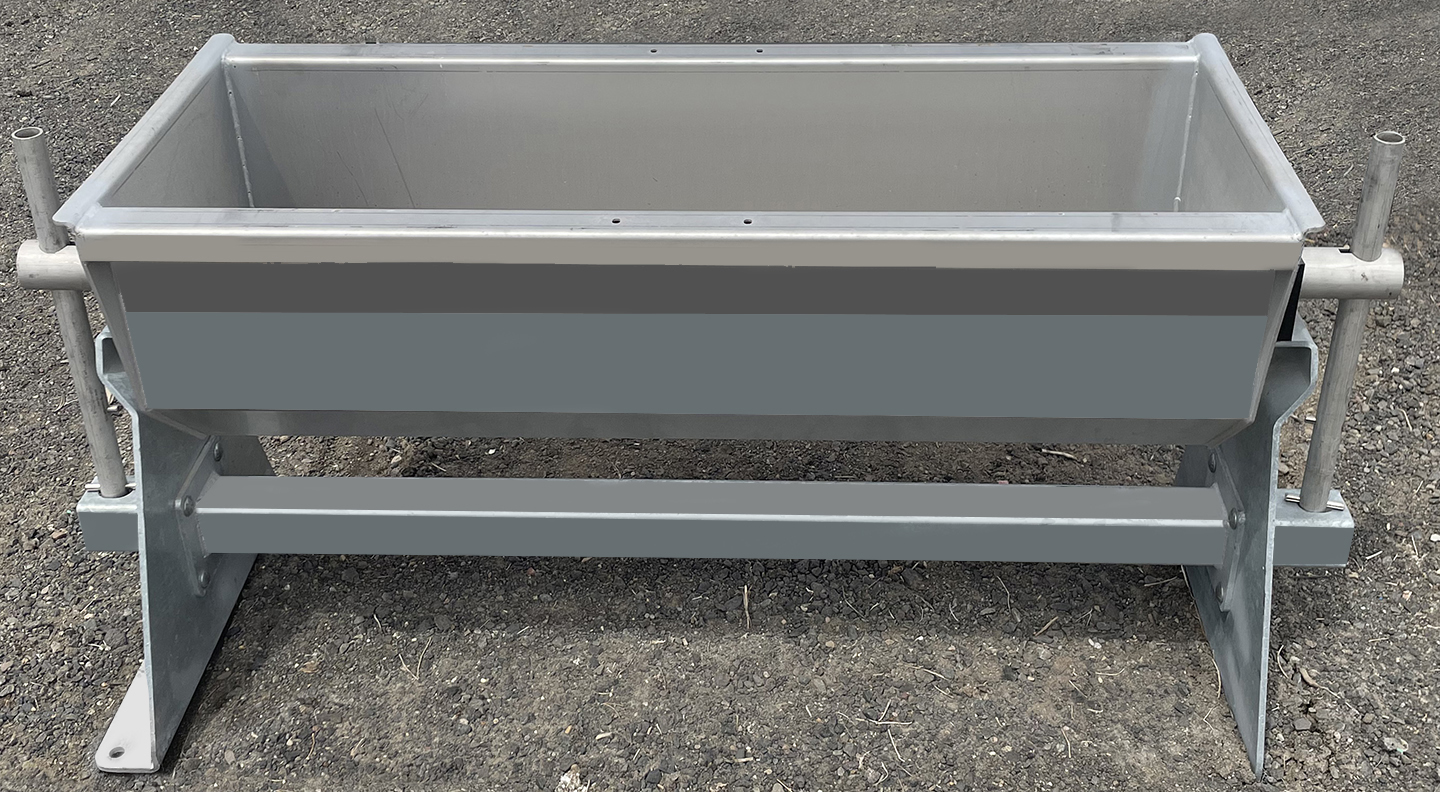

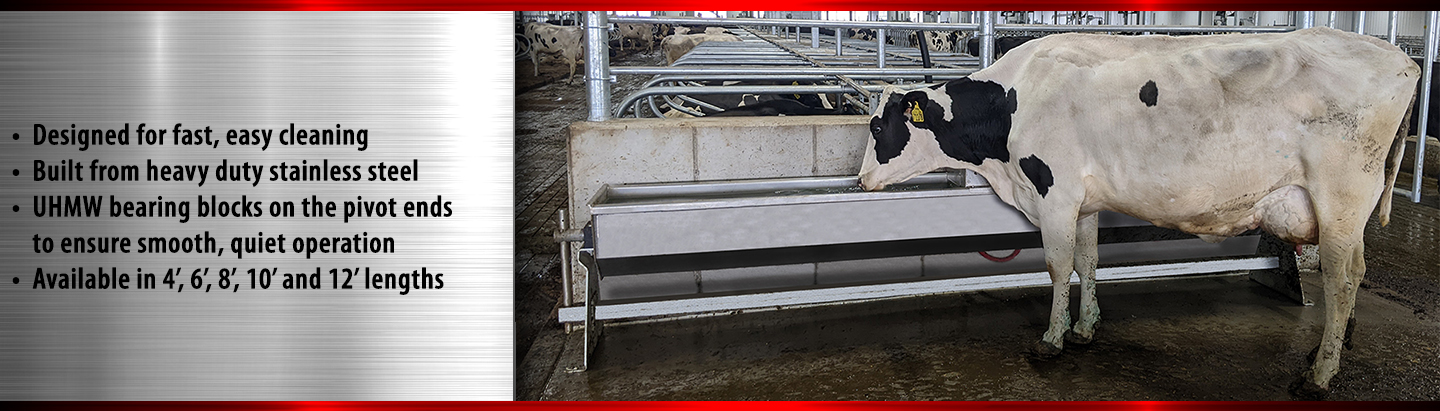

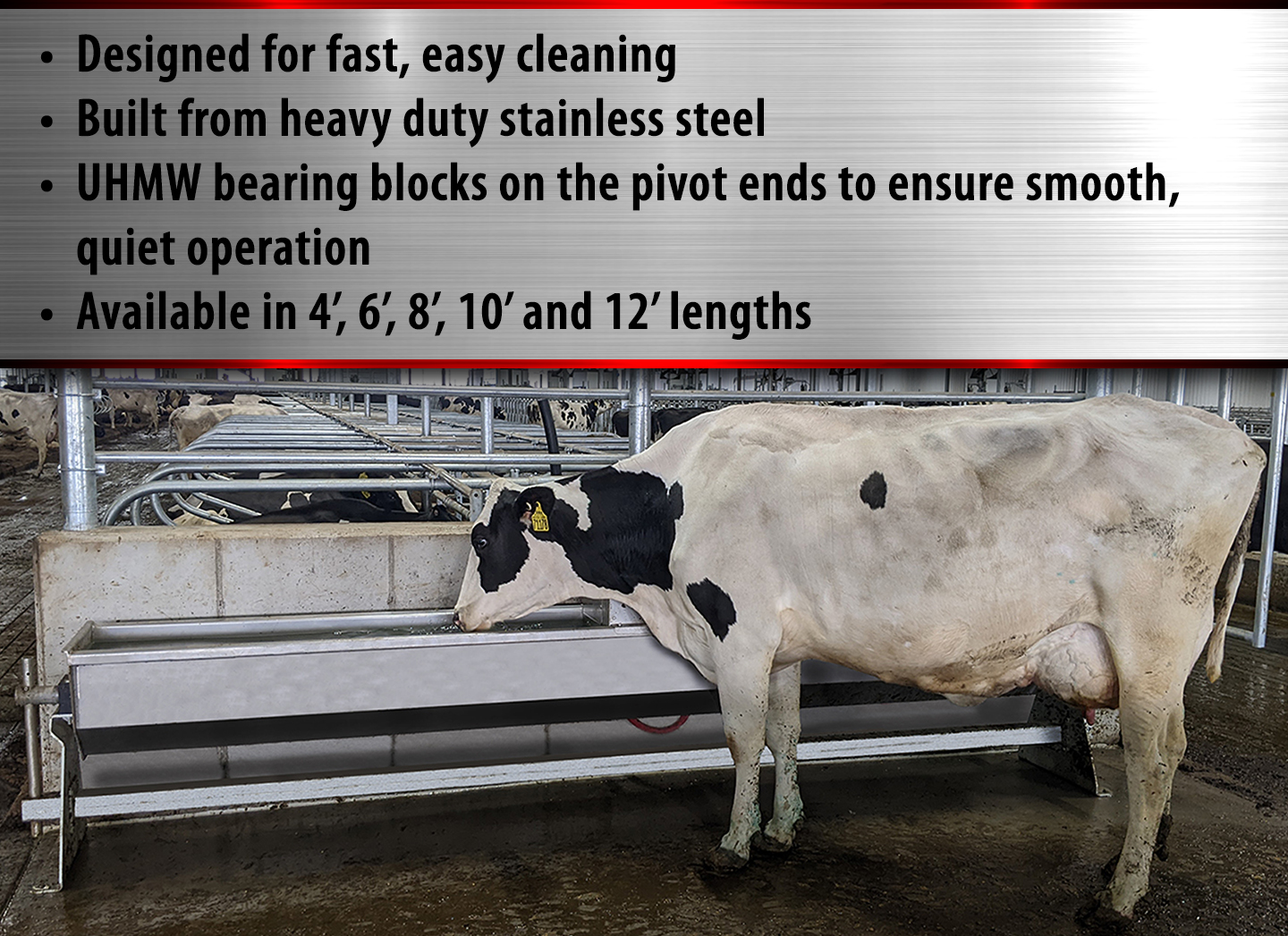

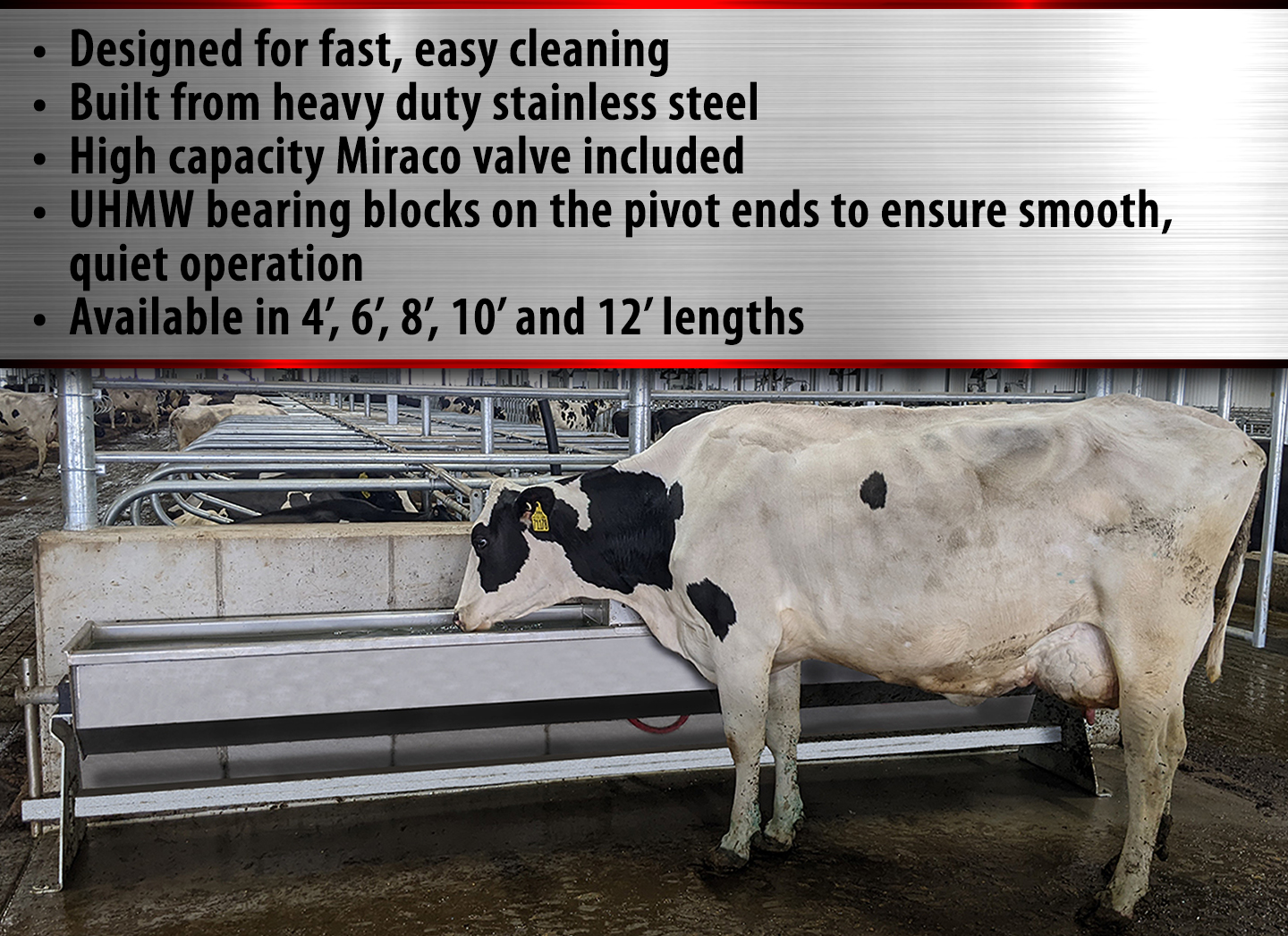

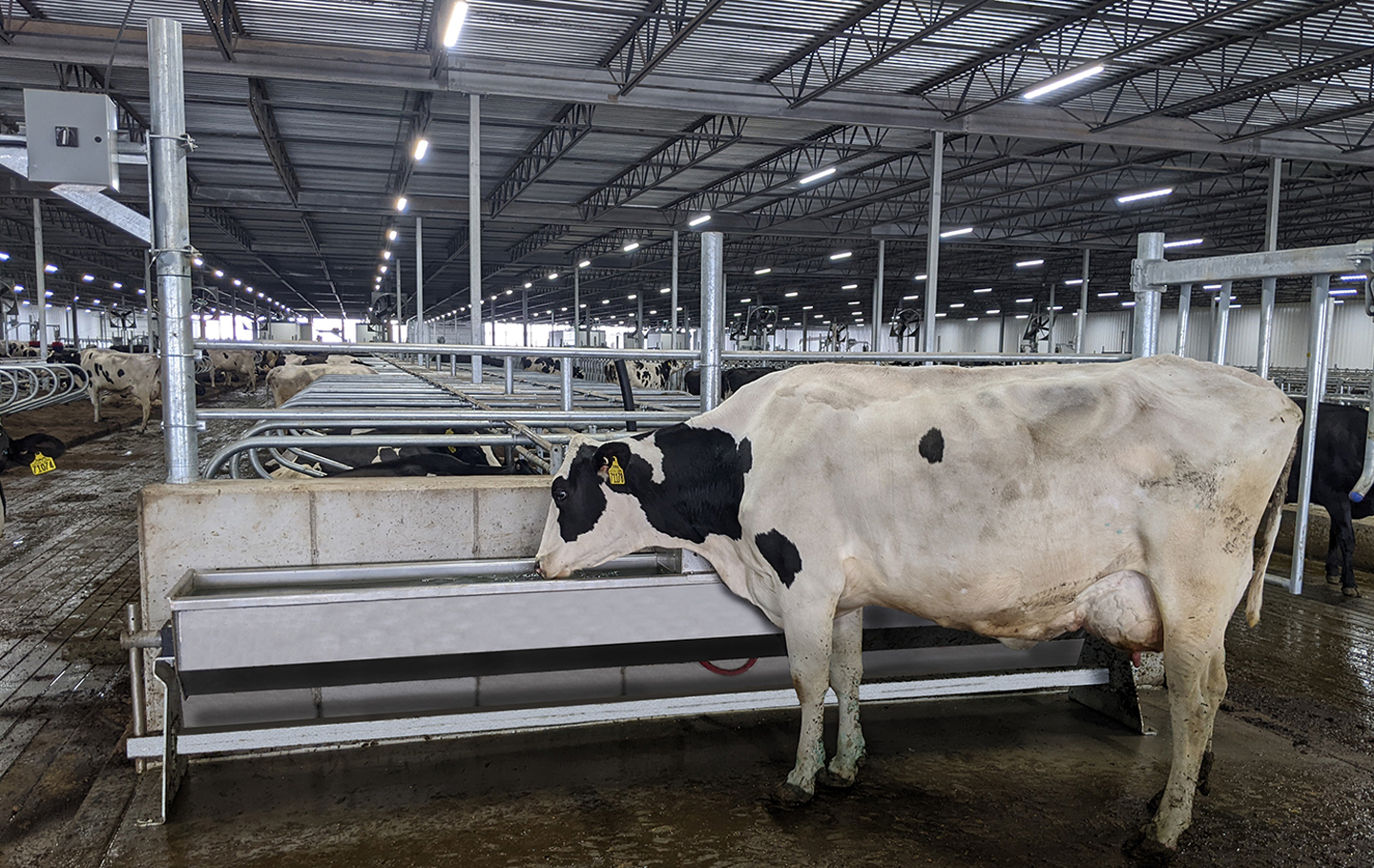

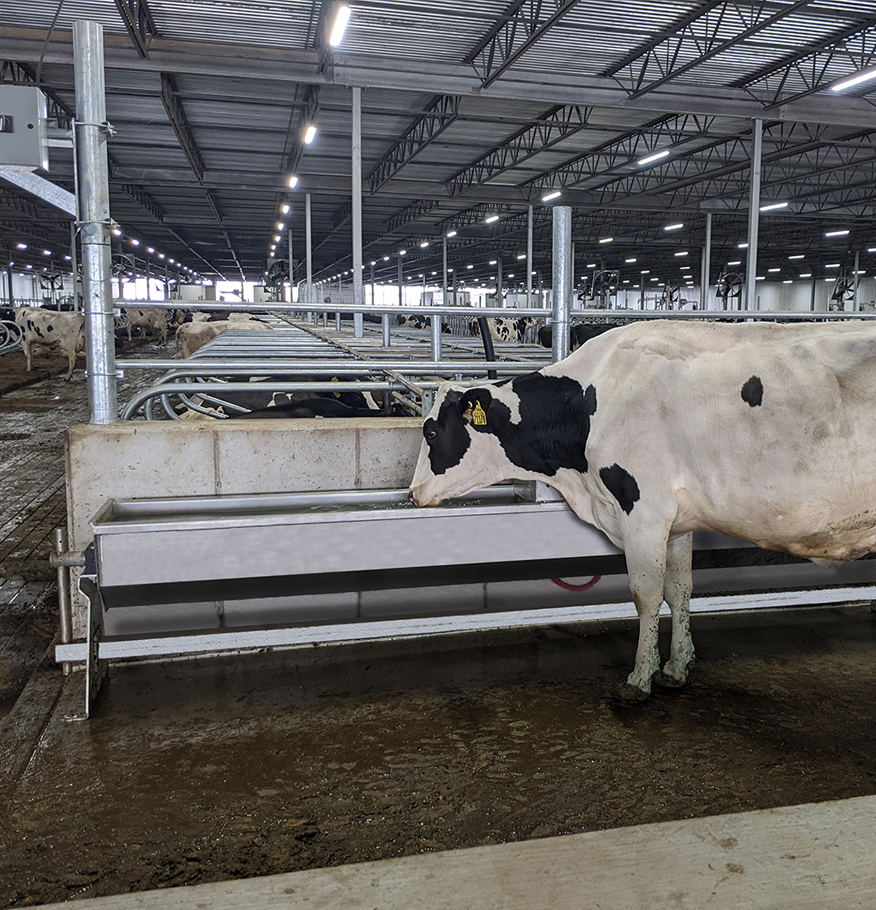

Stainless Steel Dump Type Water Troughs


Trough body is made from heavy duty 12 gauge stainless steel with 1/4" thick ends.


2" stainless pivot pipes with UHMW bearing blocks on each end to ensure smooth, quiet operation.

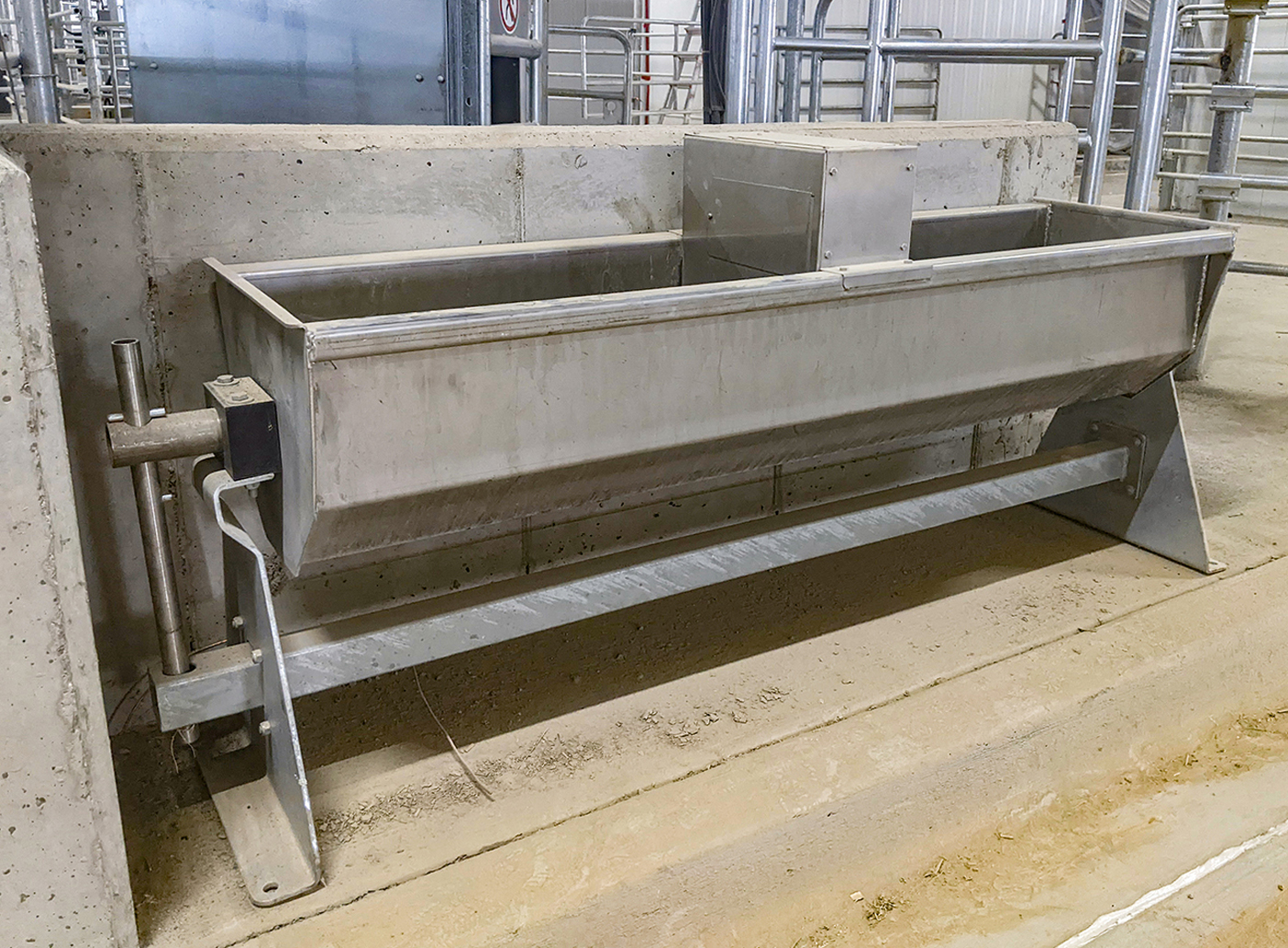

Heavy duty legs with torque tube connector to prevent flexing and twisting.

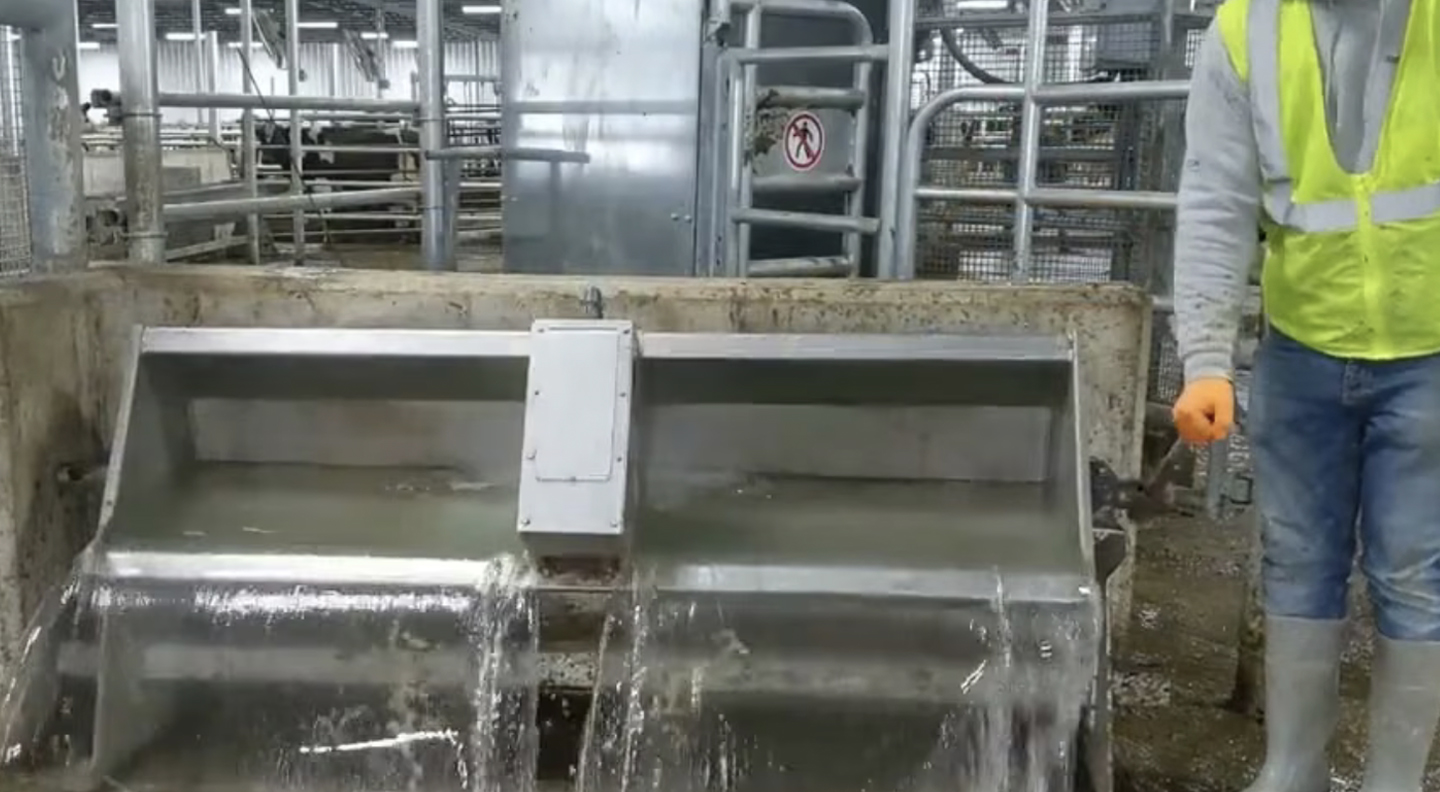

One person can safely and easily dump all of the water in a few seconds.


Available in 4', 6', 8', 10' and 12' lengths.

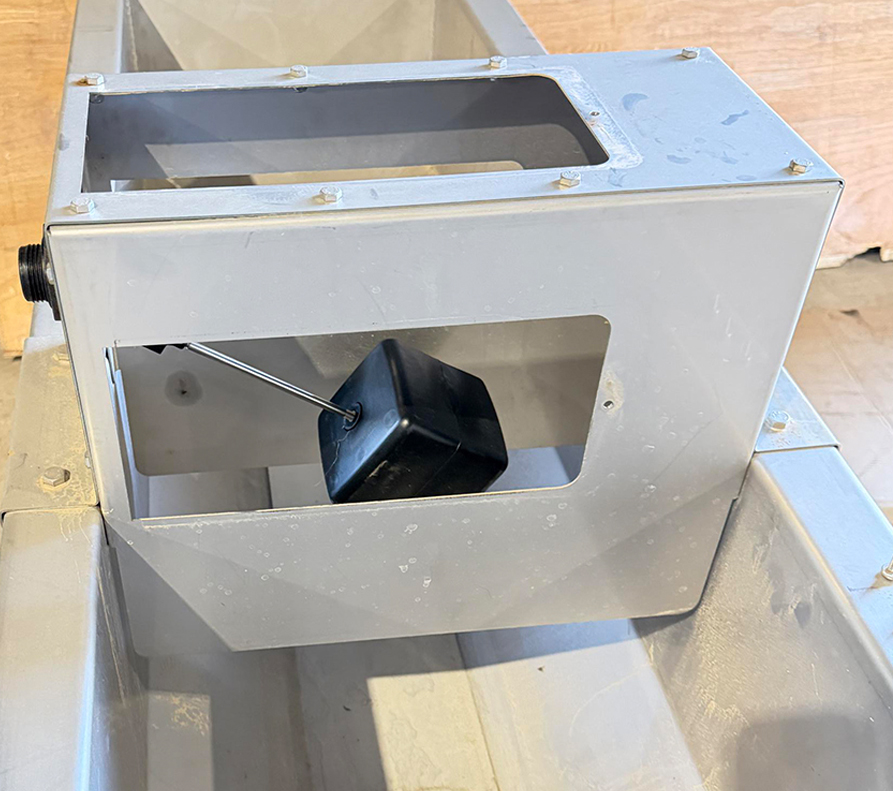

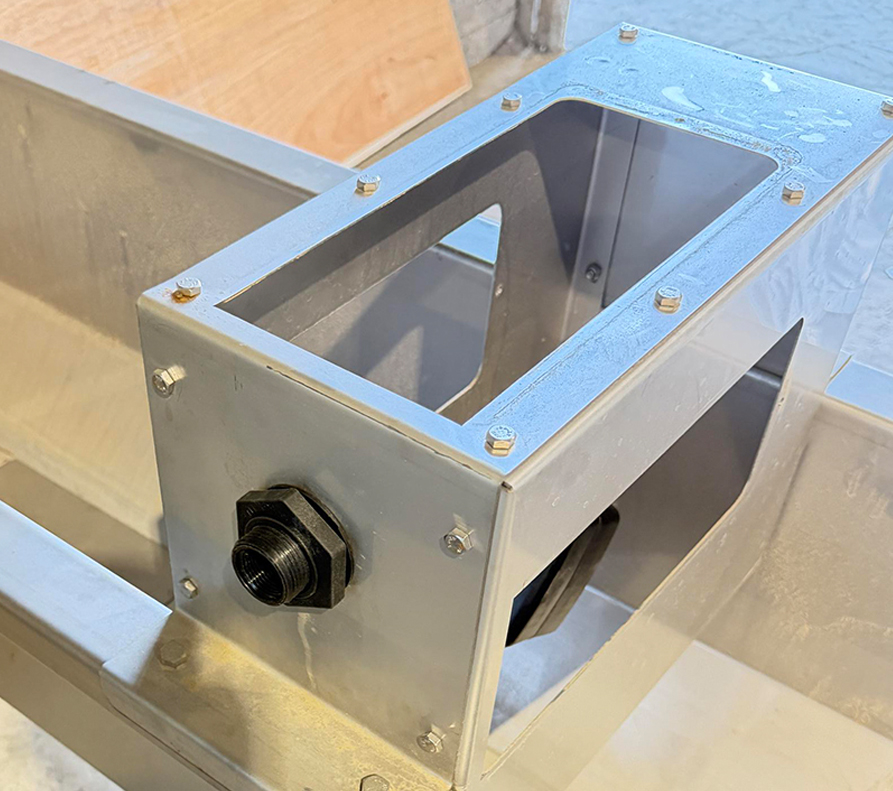

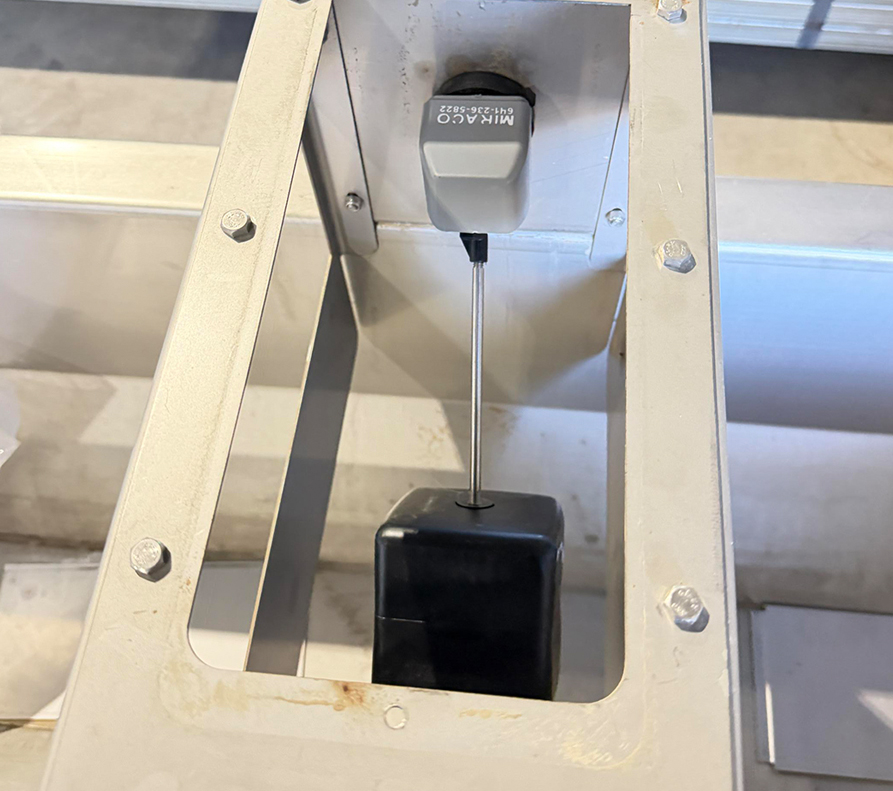

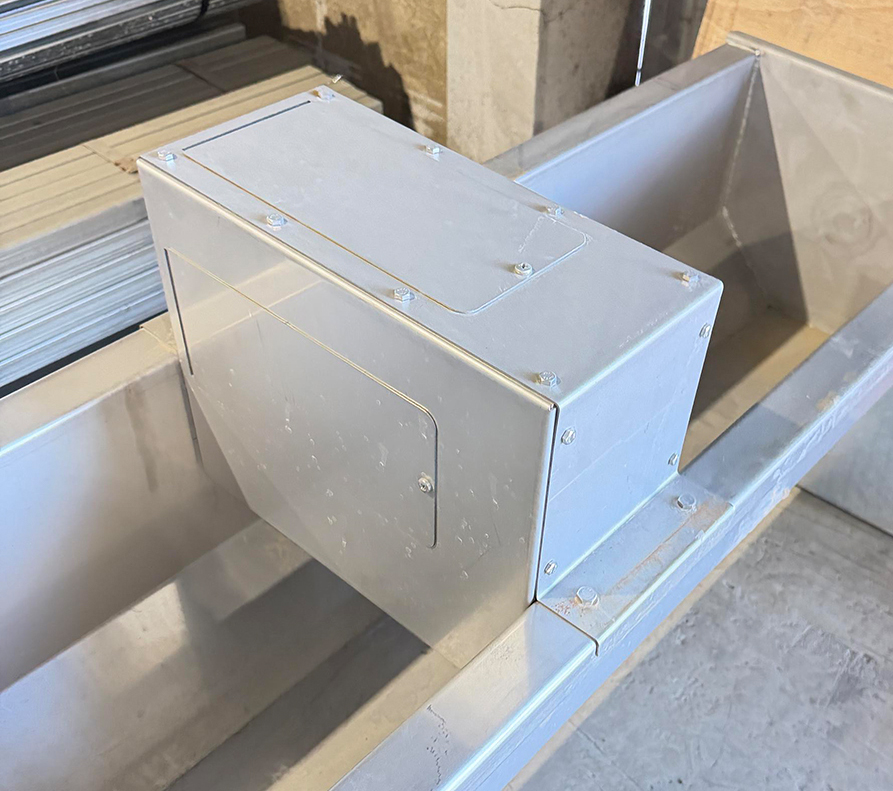

Easy access valve cover. Valve can be accessed through either side of the valve cover, through the top, or cover can be completely removed. High capacity Miraco valve included.

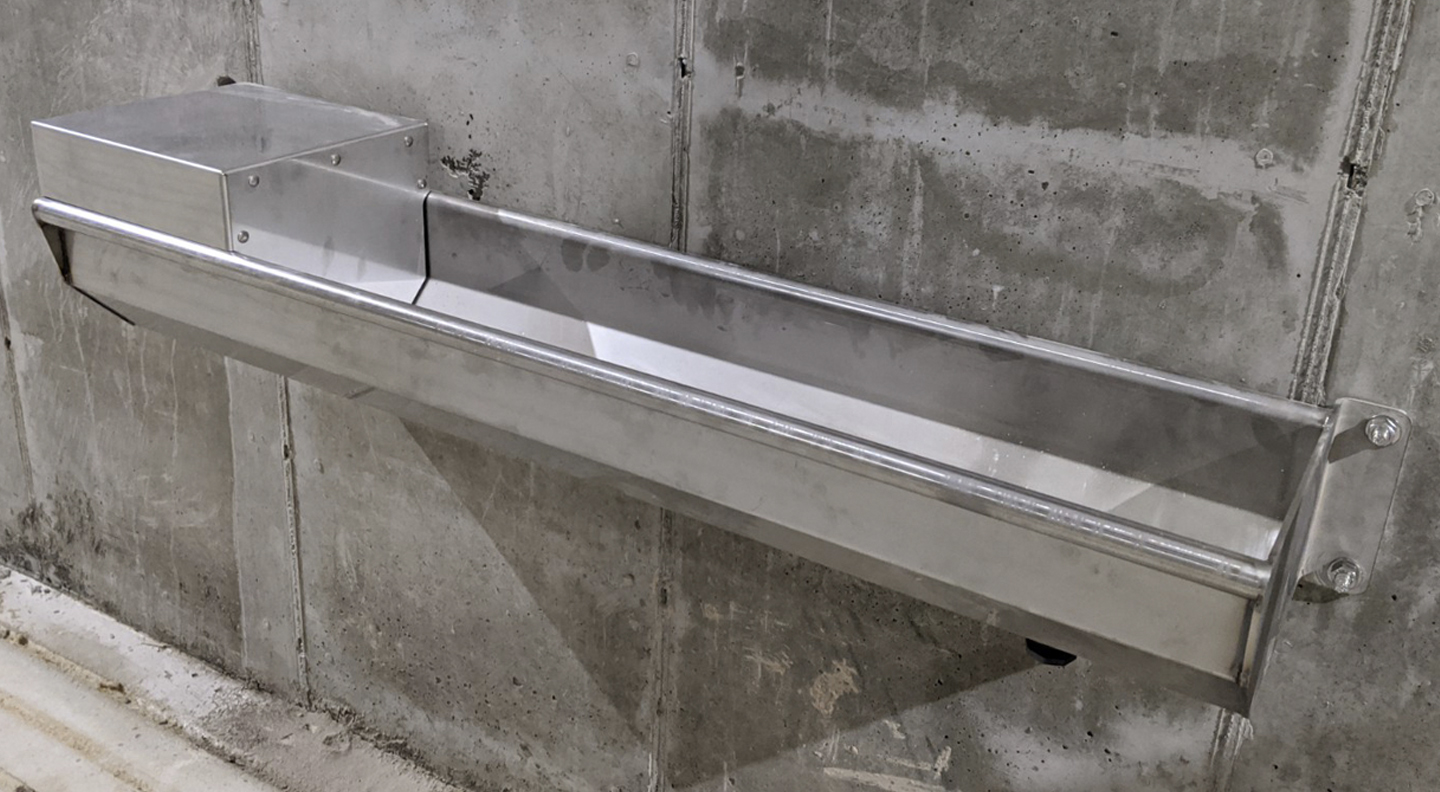

Wall mount troughs available.

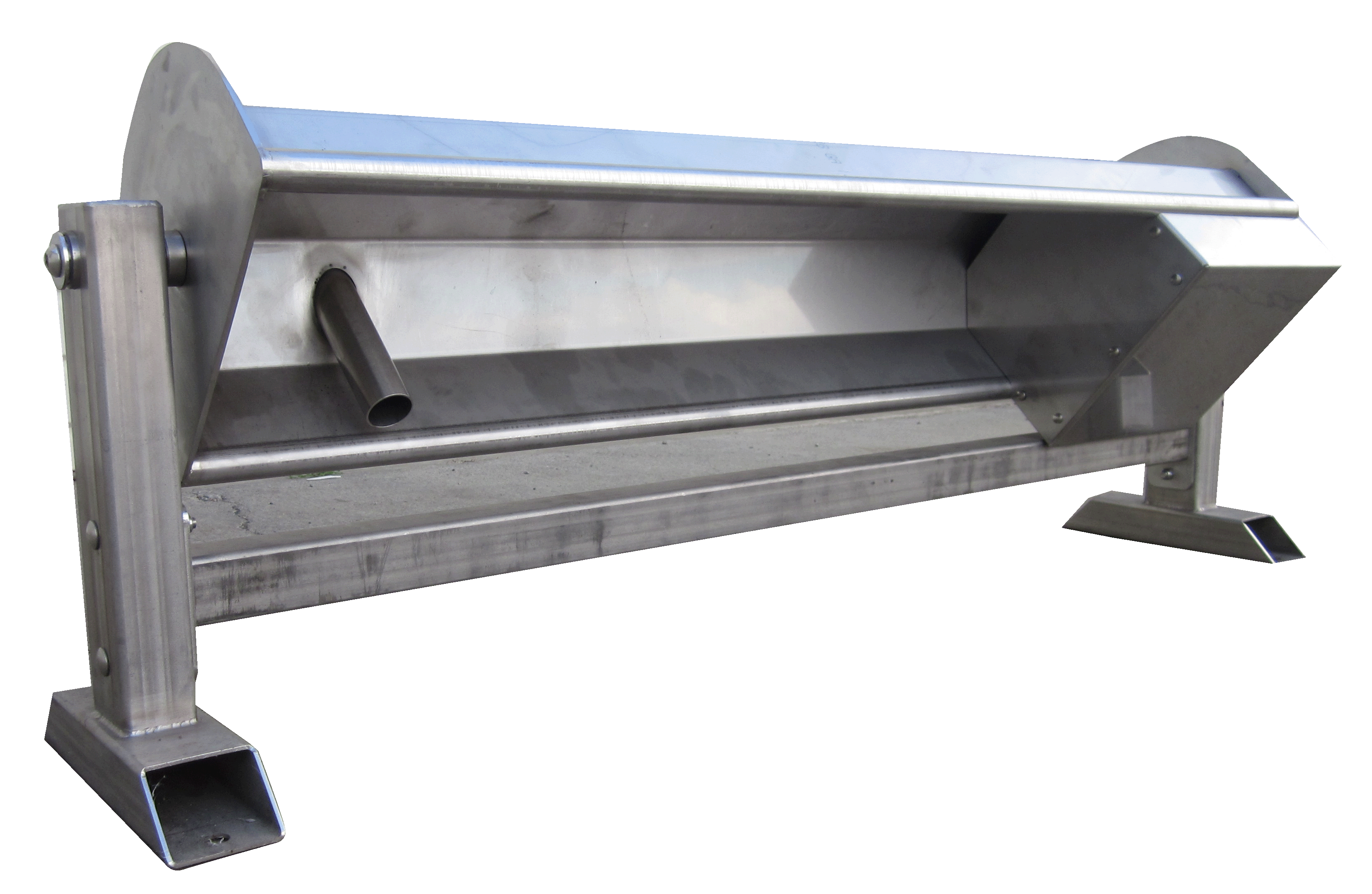

AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA 4' dump troughs also available for calves.

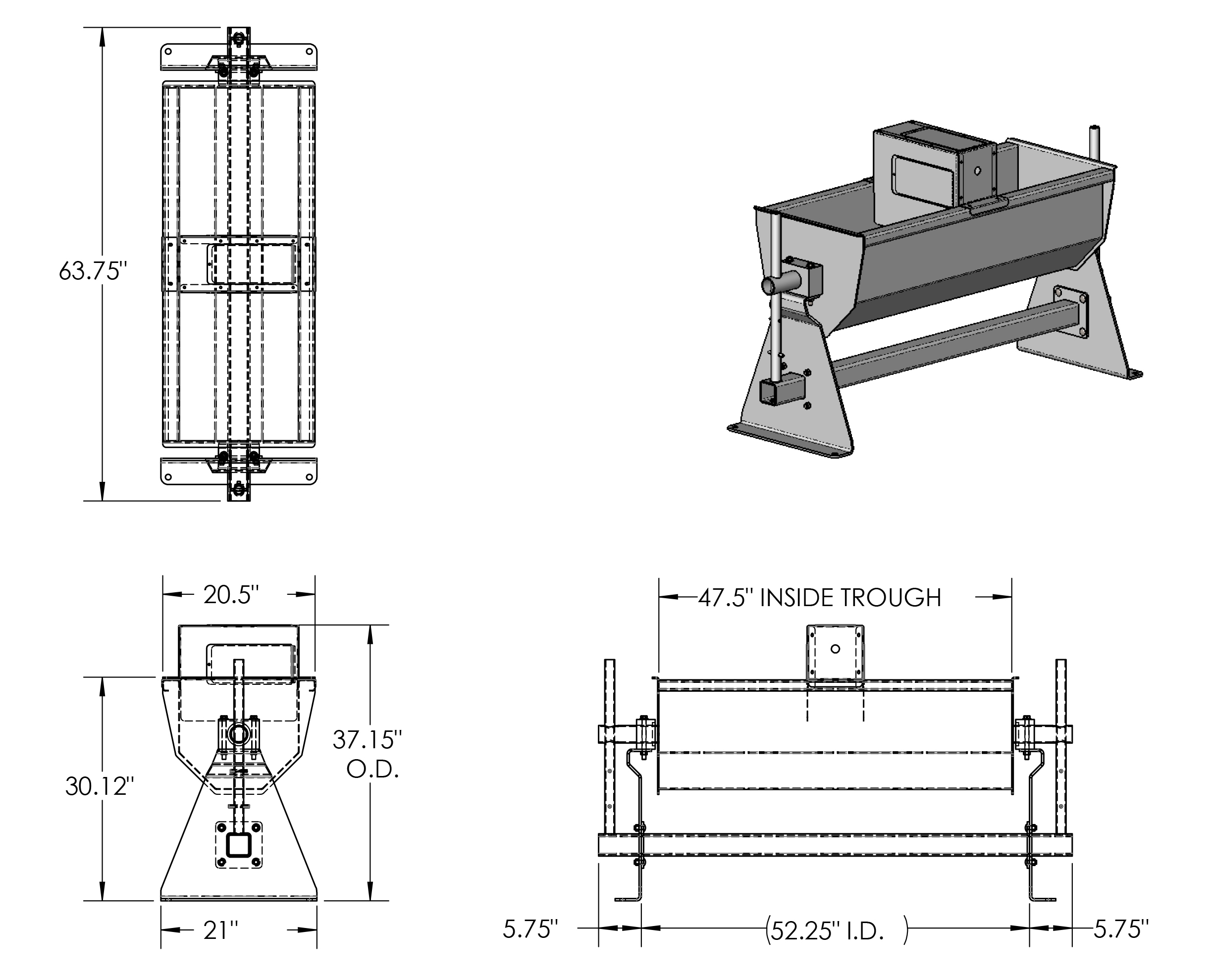

4' Trough


6' Trough

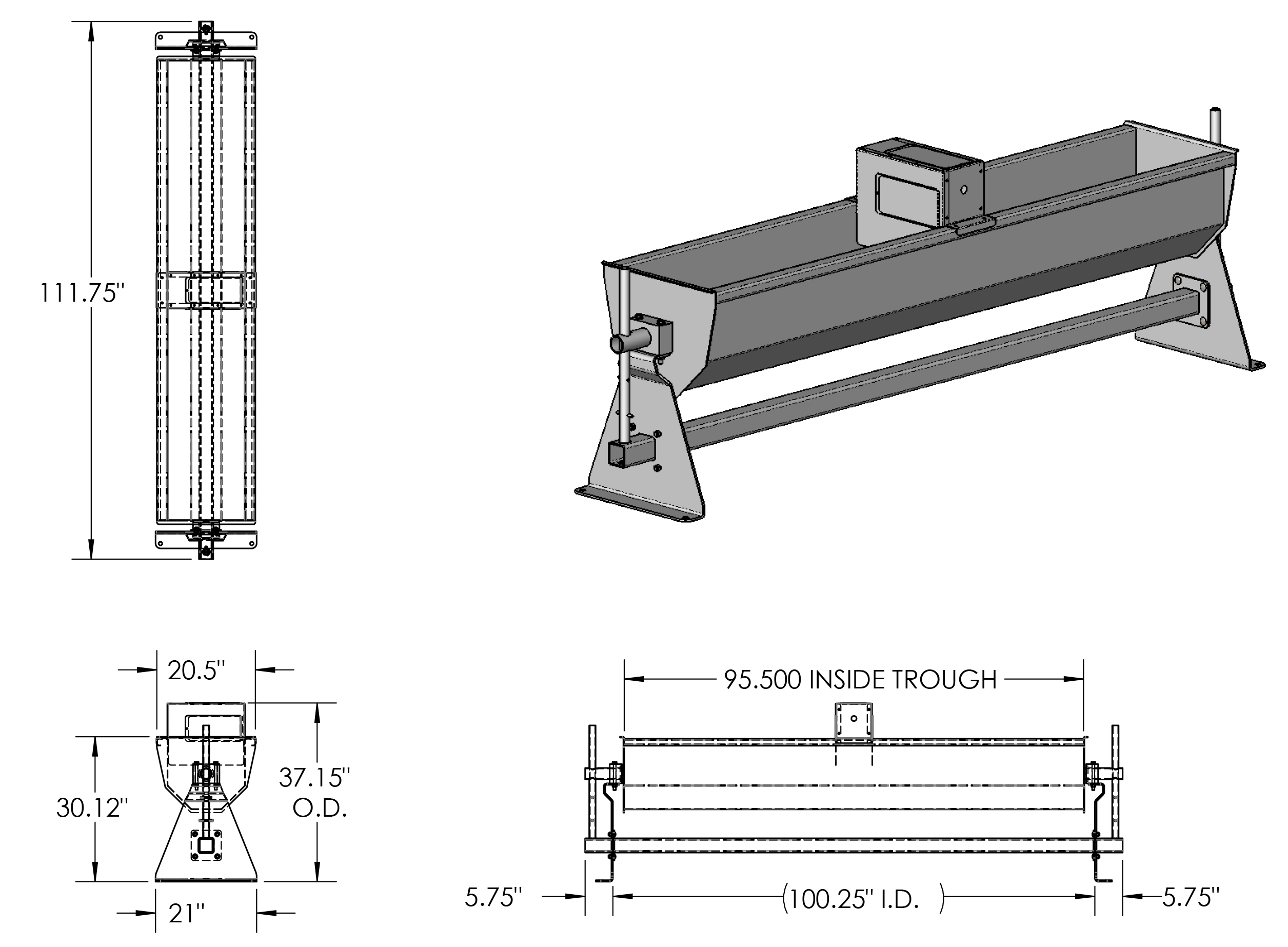

8' Trough

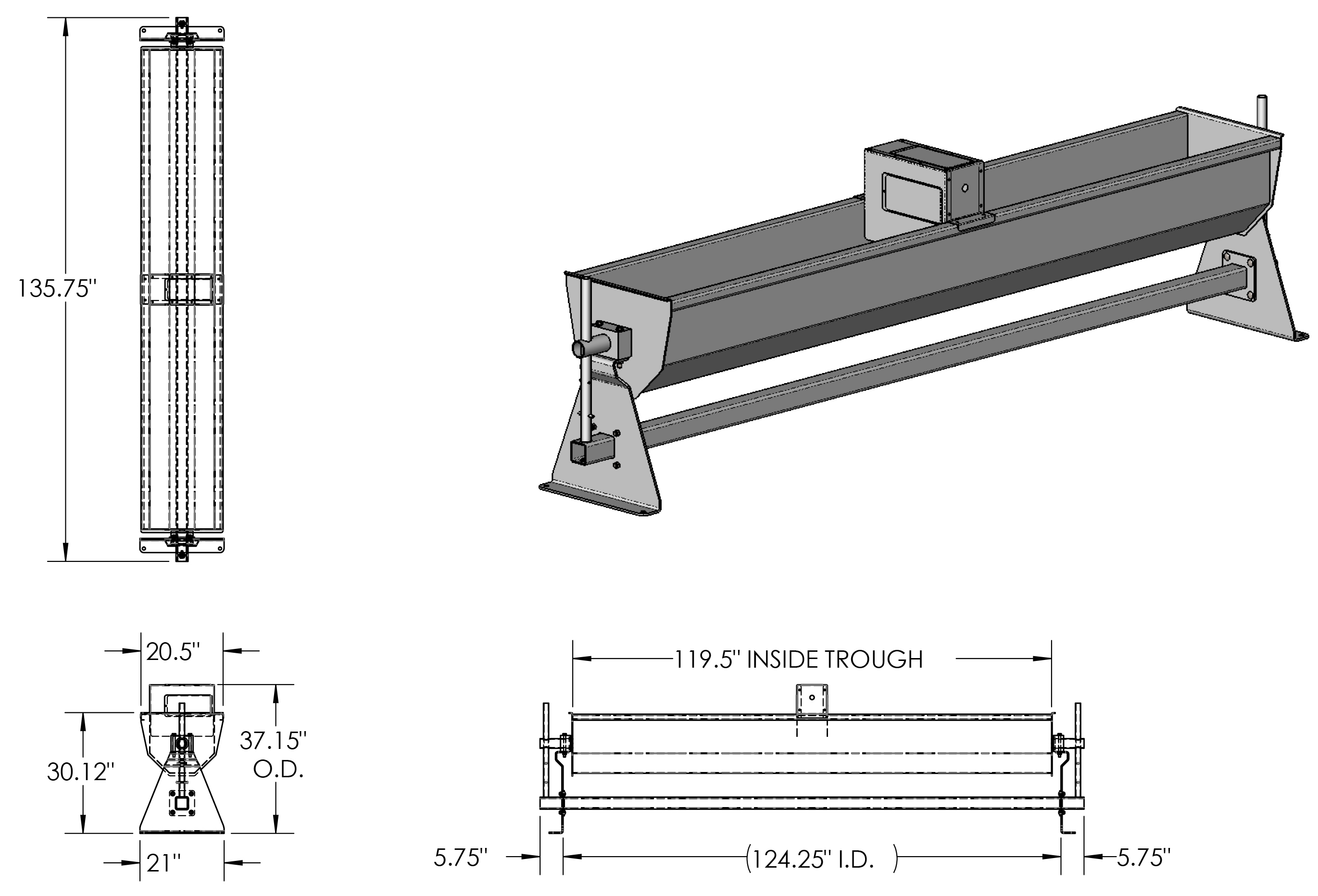

10' Trough

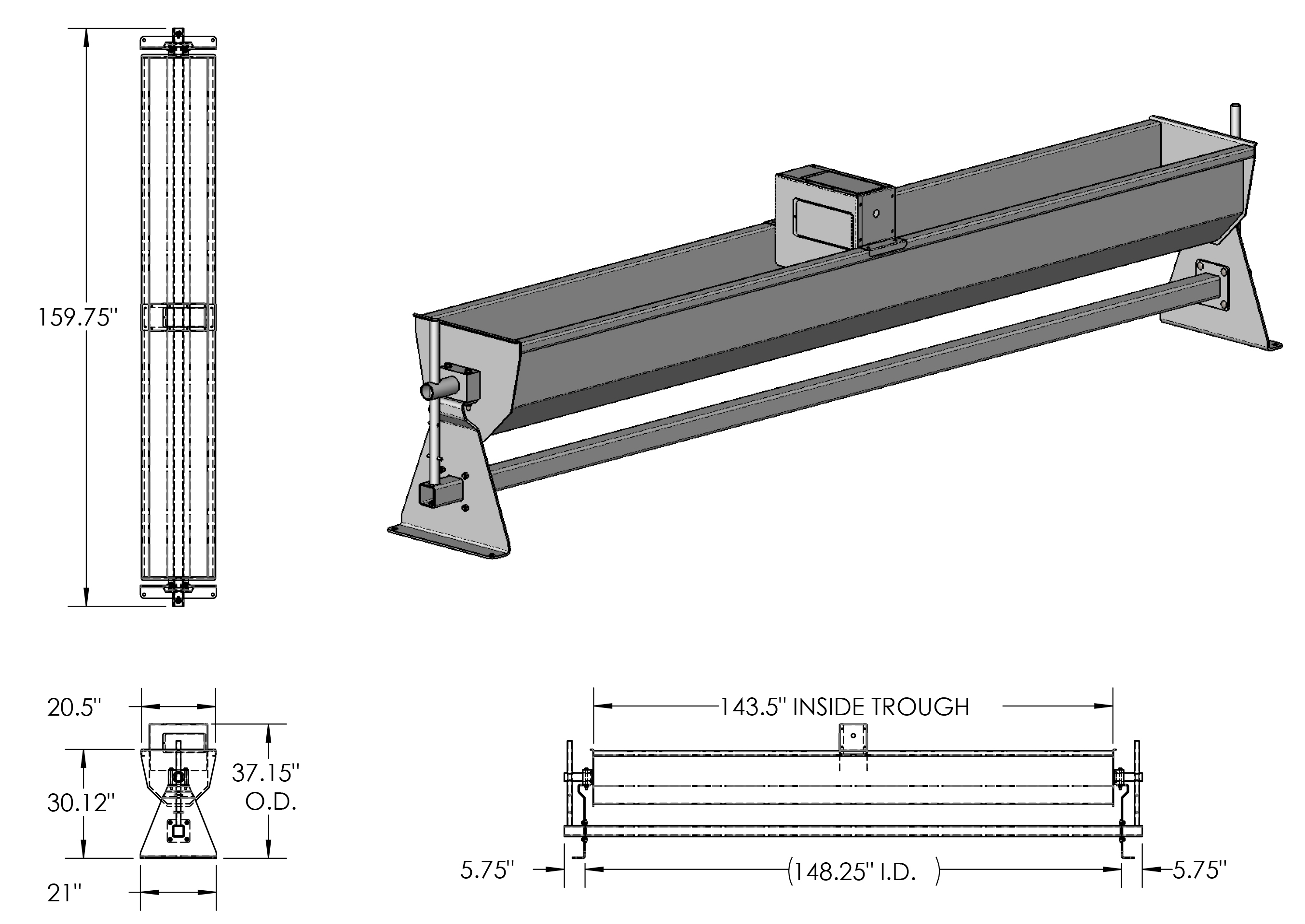

12' Trough
