Mounting hardware available for any application.

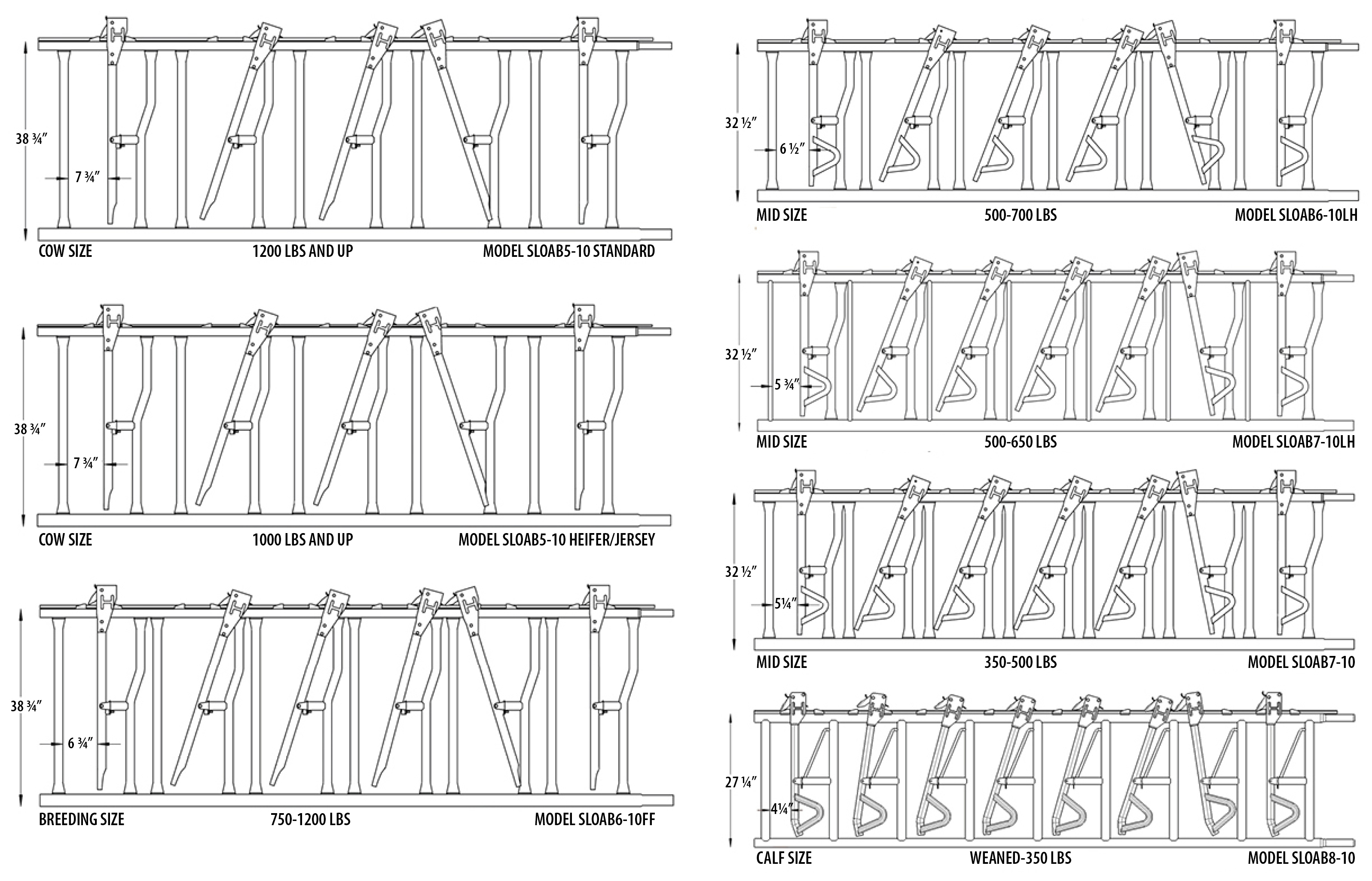

| Standard Sizes | |
|---|---|
| Cow Size | 4 holes in 8', 4 holes in 9', 4 holes in 10', 5 holes in 10', 6 holes in 12' |

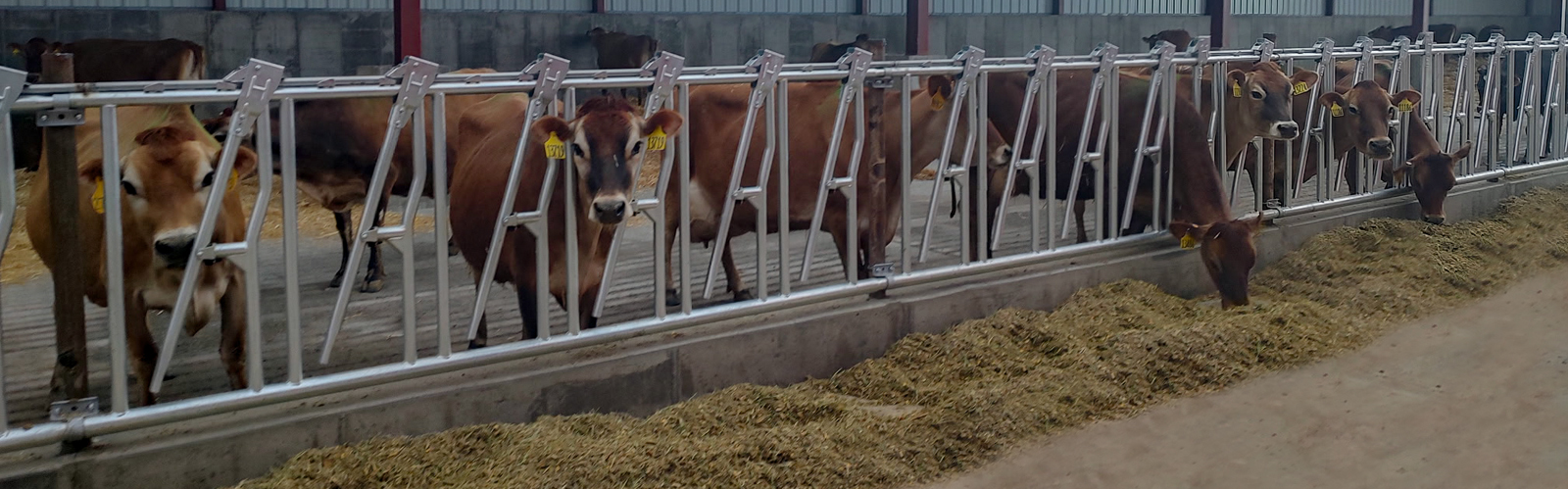

| Breeding Size | 5 holes in 8', 5 holes in 9', 6 holes in 10' Full Frame, 7 holes in 12' Full Frame, 7 holes in 10' large hole (breeding age Jersey) |
| Mid Size | 5 holes in 8', 6 holes in 10', 7 holes in 10', 8 holes in 12' |

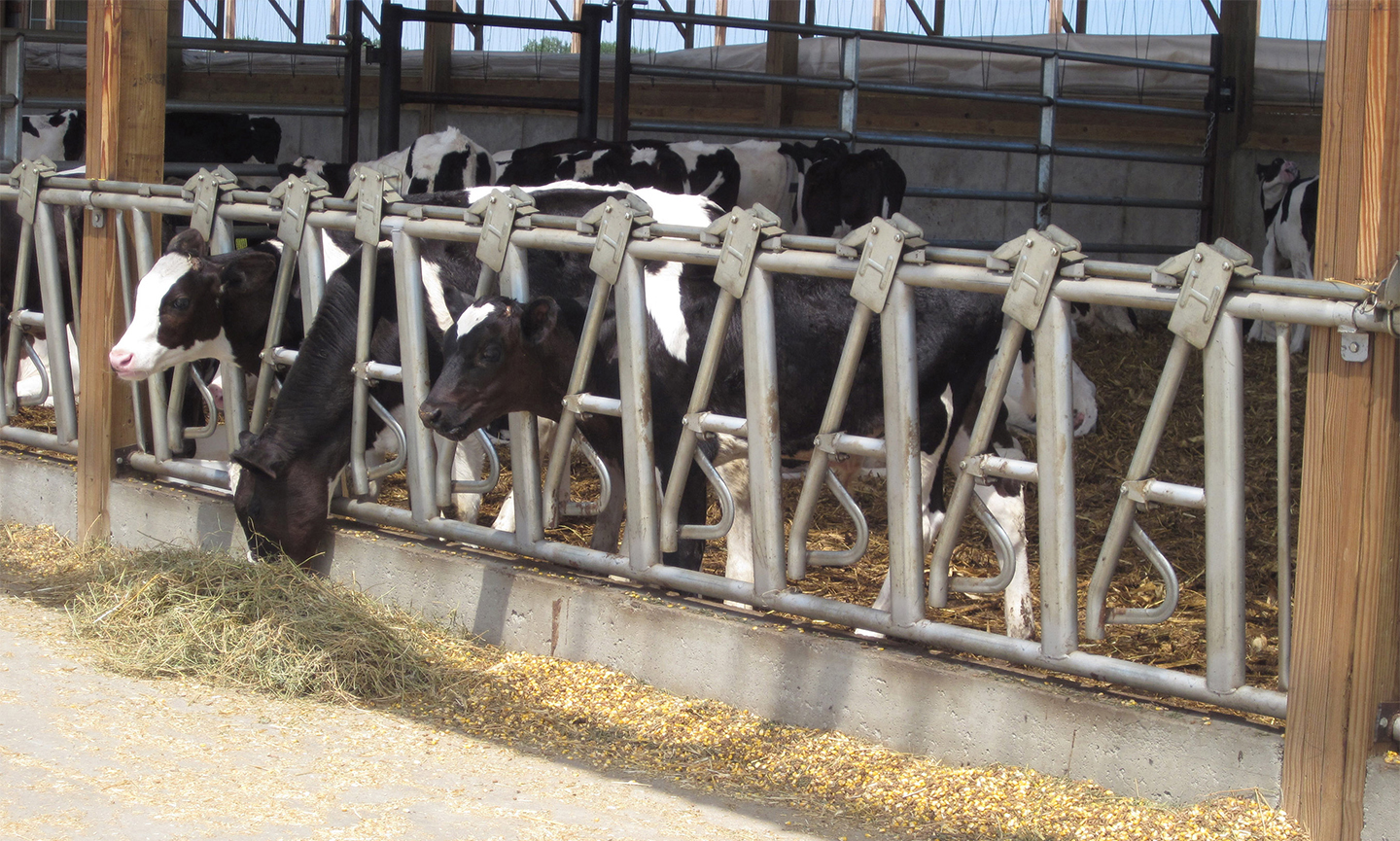

| Calf Size | 8 holes in 10', 9 holes in 12', 9 holes in 10' (used with bottle feeding system) |

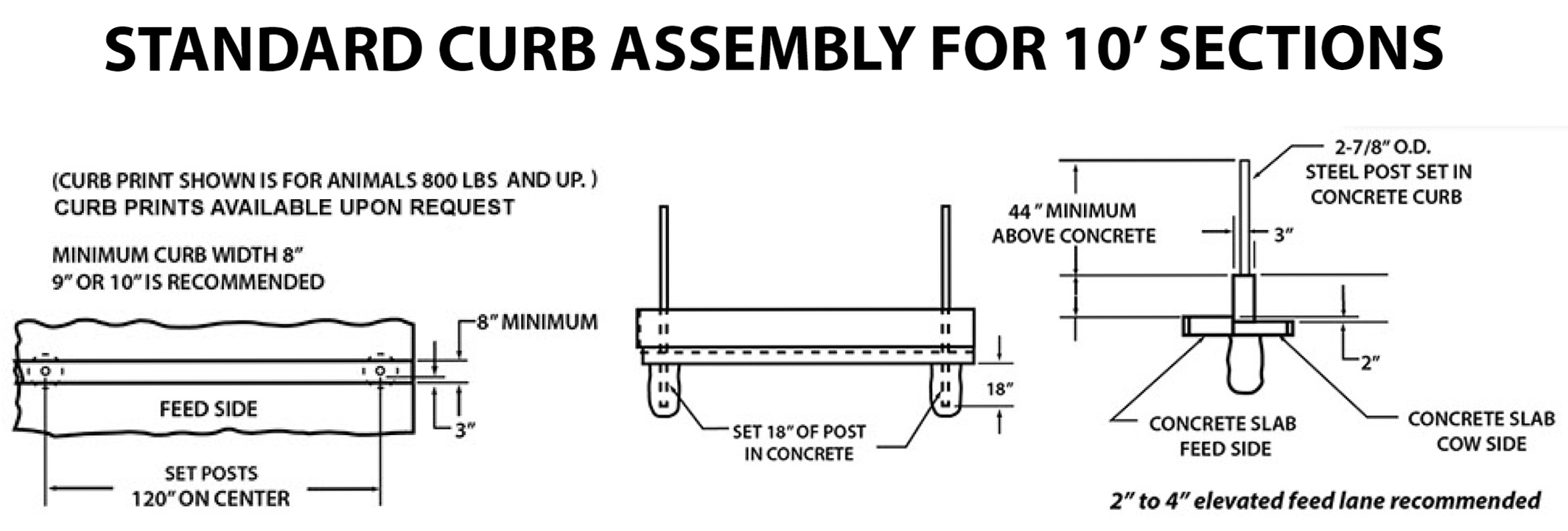

| Suggested Curb Heights | ||
|---|---|---|
| Headlock Size | Cow Side | Feed Side |
| Cow Size | 16-18" | 14-16" |
| Breeding Size | 14-16" | 12-14" |
| Mid Size | 12-14" | 10-12" |
| Calf Size | 10-12" | 8-10" |
| Based on 9 or 10" wide curb | ||

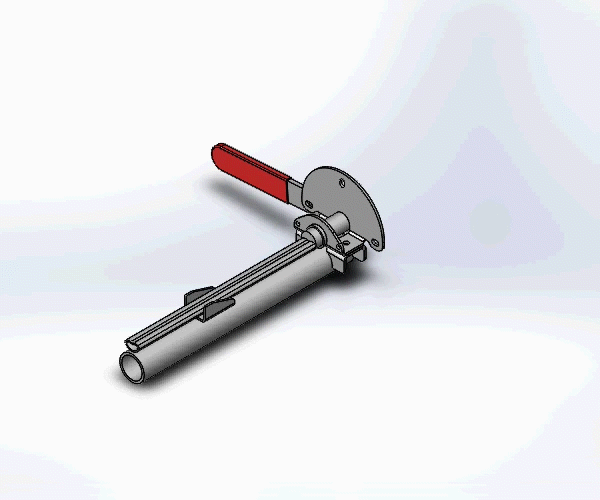

Handle assembly
