Pride of the Farm Water Troughs

Features

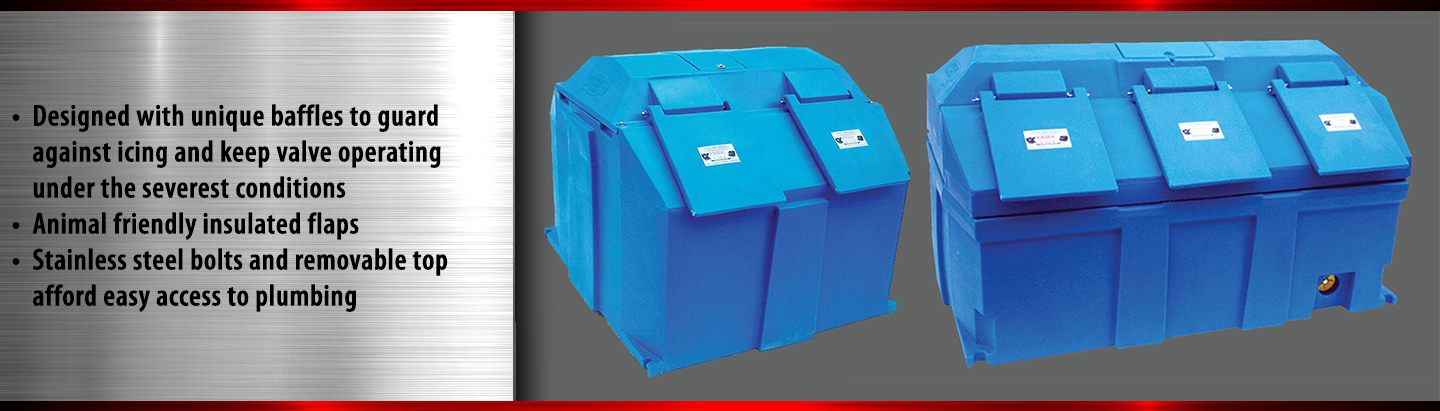

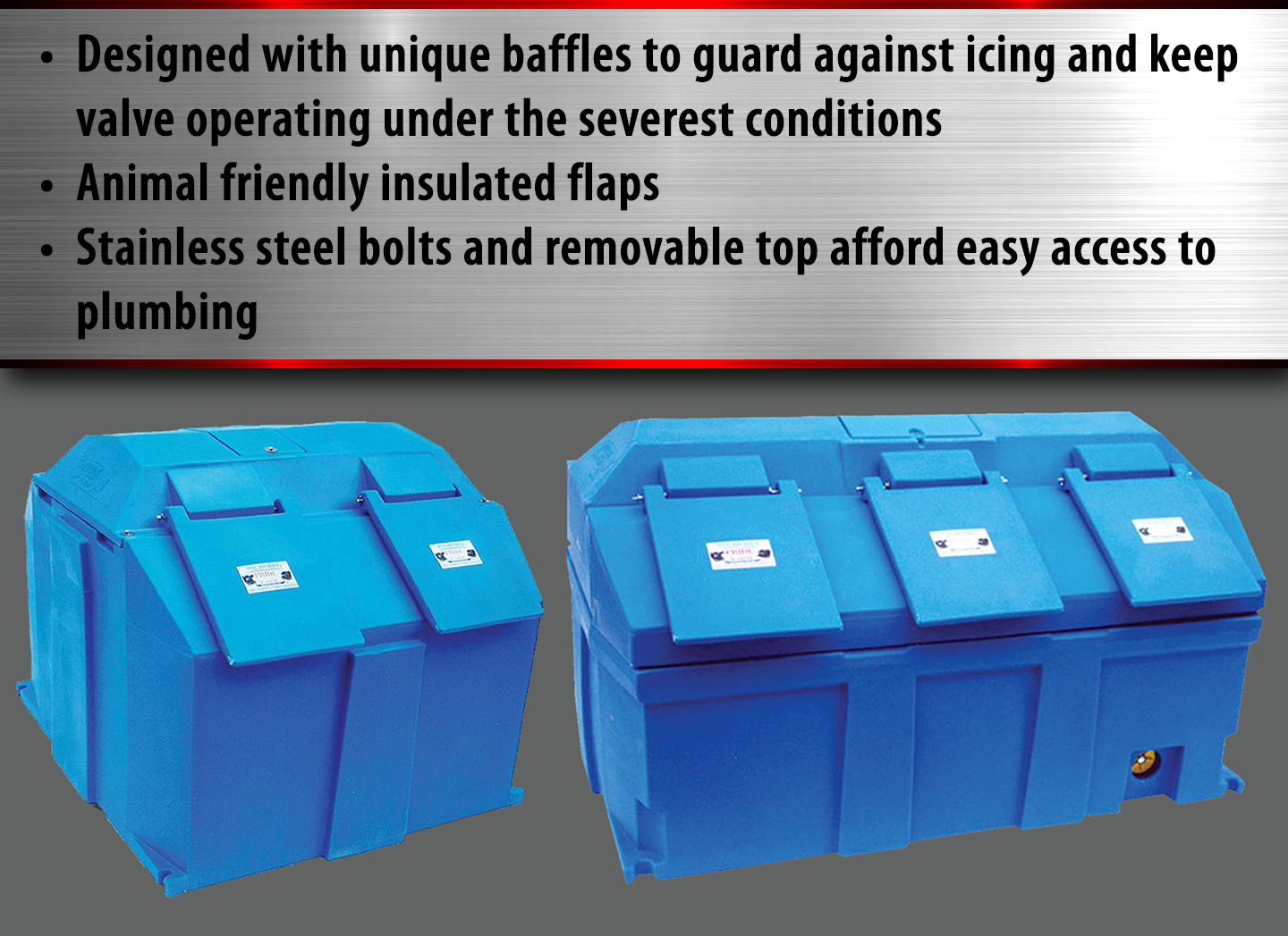

  • Stainless steel bolts and removable top afford easy access to plumbing. Optional wing bolts (Model OF403WB) are available for grade A inspections.
  • Unique baffles guard against icing and keep valve operating under severest condtions
  • Notched flanges for easy anchoring
  • Achieve a quality installation with Pride of the Farm® anchor package, Order model 383344 which contains 4 anchor bolts, 4 flat washers, 4 plates and 4 nuts, all stainless steel
  • Weather strip and an insulated sleeve for the supply line come with each unit
  • Simple installation - no heat well needed; use an 8-12" tile; can be fitted on most existing pads
  • Sealed bottom keeps out moisture and rodents
  • Two 2-inch drain holes for fast clean out
  • Foam insulation between walls has an R-value of 7.14
  • Double wall Durarock® construction contains hindered amine light stabilizer, the most effective ultraviolet inhibitor
  • Seamless sidewall cannot leak
  • Tolerance to water level - you don't have to worry about summer and winter water levels. (If the water level is too high on a ball or float type closure, closures can stick)
  • Dependable, non-siphoning valve - proven and trouble free
  • Animal friendly insulated flaps. Livestock can drink out of both flaps at the same time - not always so with a ball closure. No pulleys and cables to foul and rust

22.75" width x 33" length x 27.25" height
Drinking Height: 18"

Waters: 60 Beef, 40 Dairy


20" width x 38" length x 28" height
Drinking Height: 18.5"

Waters: 100 Beef, 50 Dairy


110 gallon energy free automatic waterer

WPM120 — A 6 Opening Drinker for Cattle Feedyards and Dairy
Capacity 350 Beef, 150 Dairy, 225 Cows/calves 110 Gallons / 416.4 L
Drinking Sizes Drink Opening: 7 x 8.5" / 17.8 x 21.6 cm Drink Height: 22.5" / 57.2 cm
Dimensions 44" W x 56.5" L x 32.3" H / 111,8 x 144 x 82 cm
Valve VQ150
Weight 197 lbs / 89.5 kg

80 gallon energy free automatic waterer

WPM80 — A 4 Opening Drinker for Cattle Feedyards and Dairy
Capacity 225 Beef, 100 Dairy, 175 Cows/calves 80 Gallons / 302.8 L
Drinking Sizes Drink Opening: 8 x 8.5" / 20.3 x 21.6 cm Drink Height: 23.75" / 60.3 cm
Dimensions 41.5" W x 43.5" L x 34" H / 105.4 x 110.5 x 86.4 cm
Valve VP124 (2 optional)
