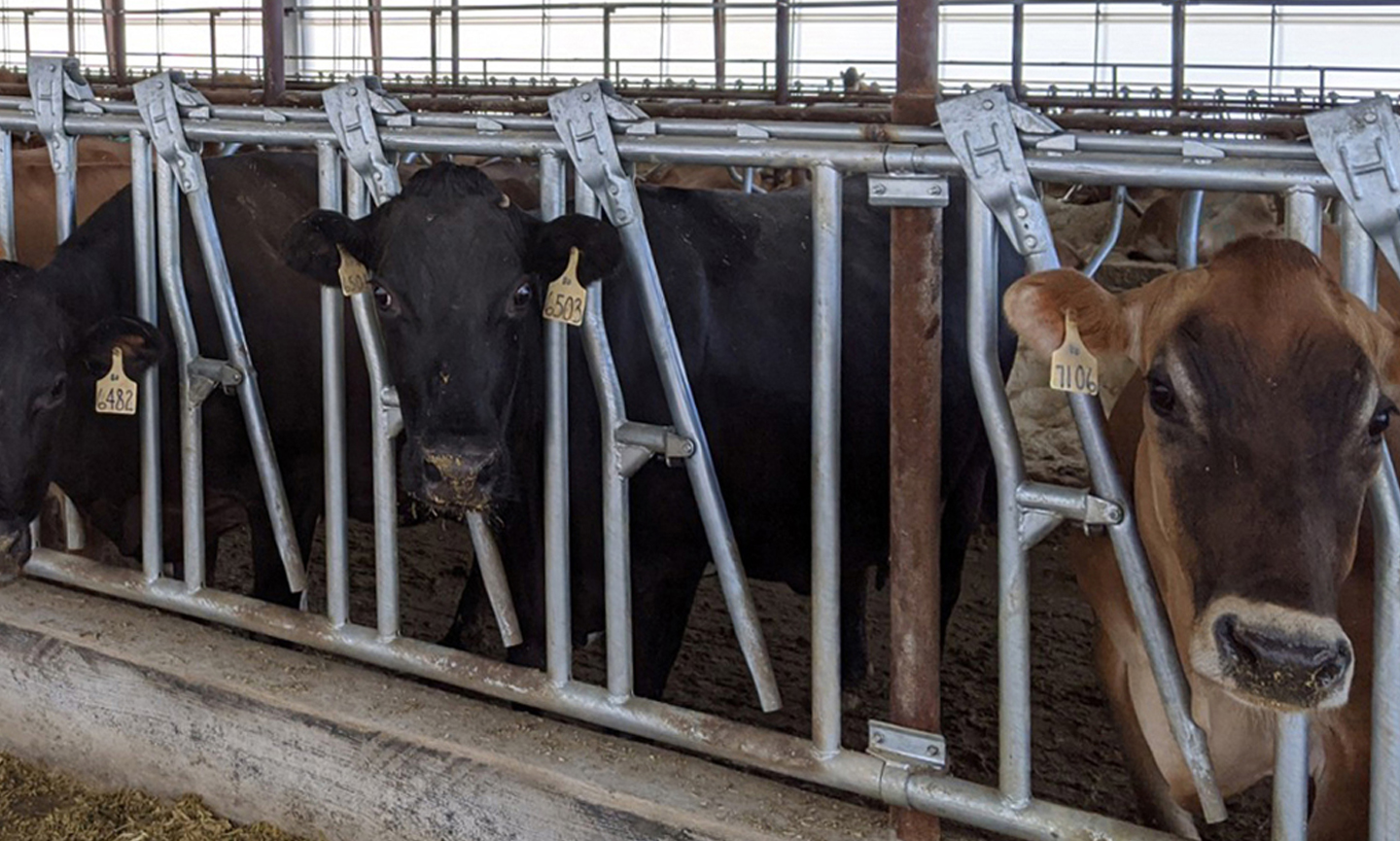

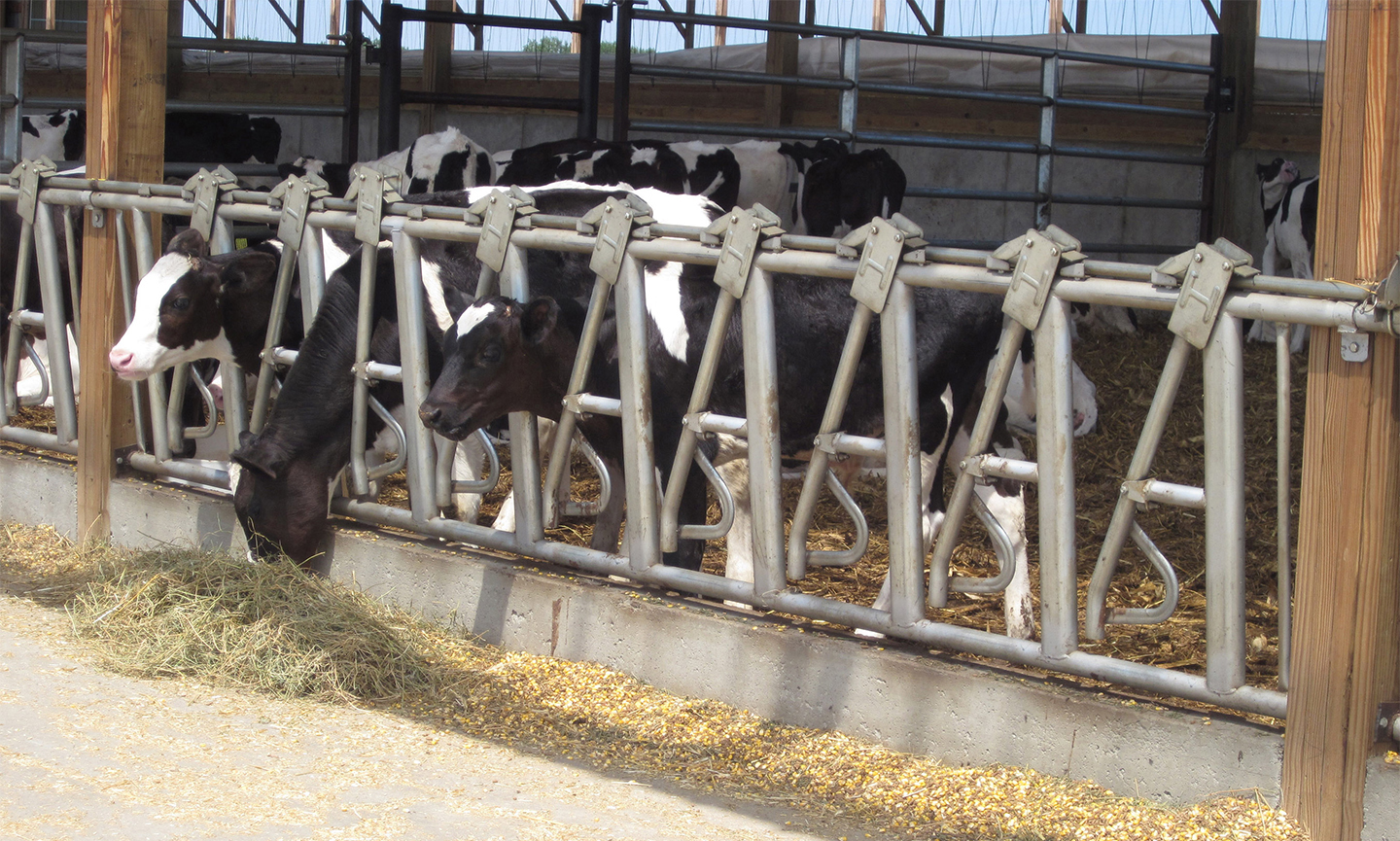

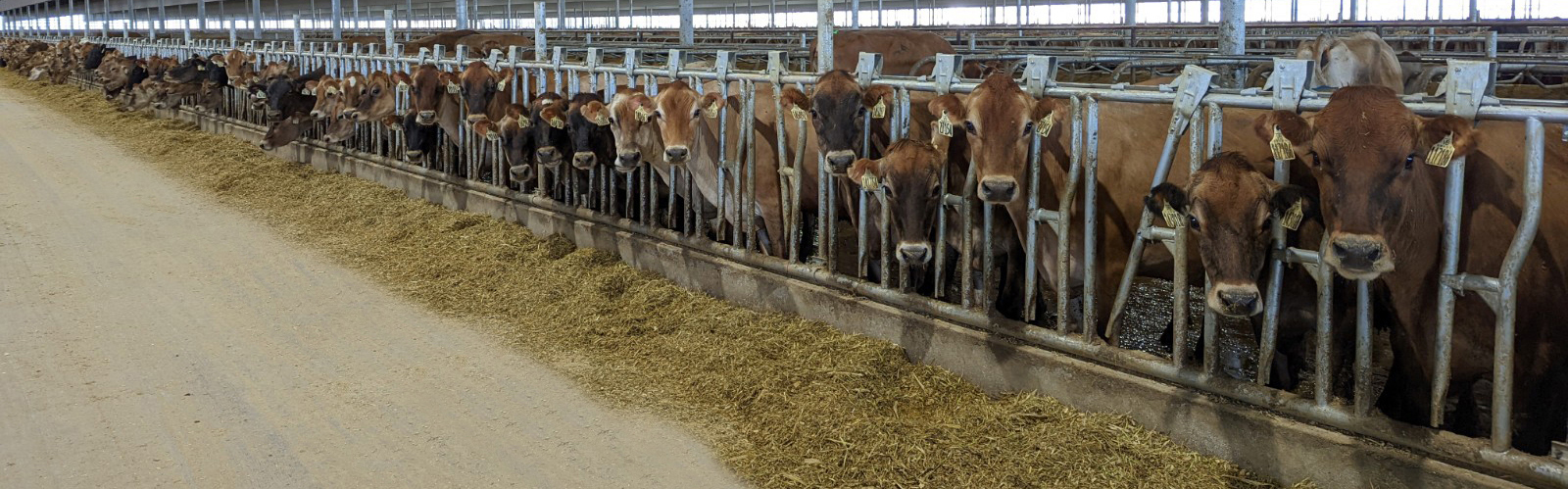

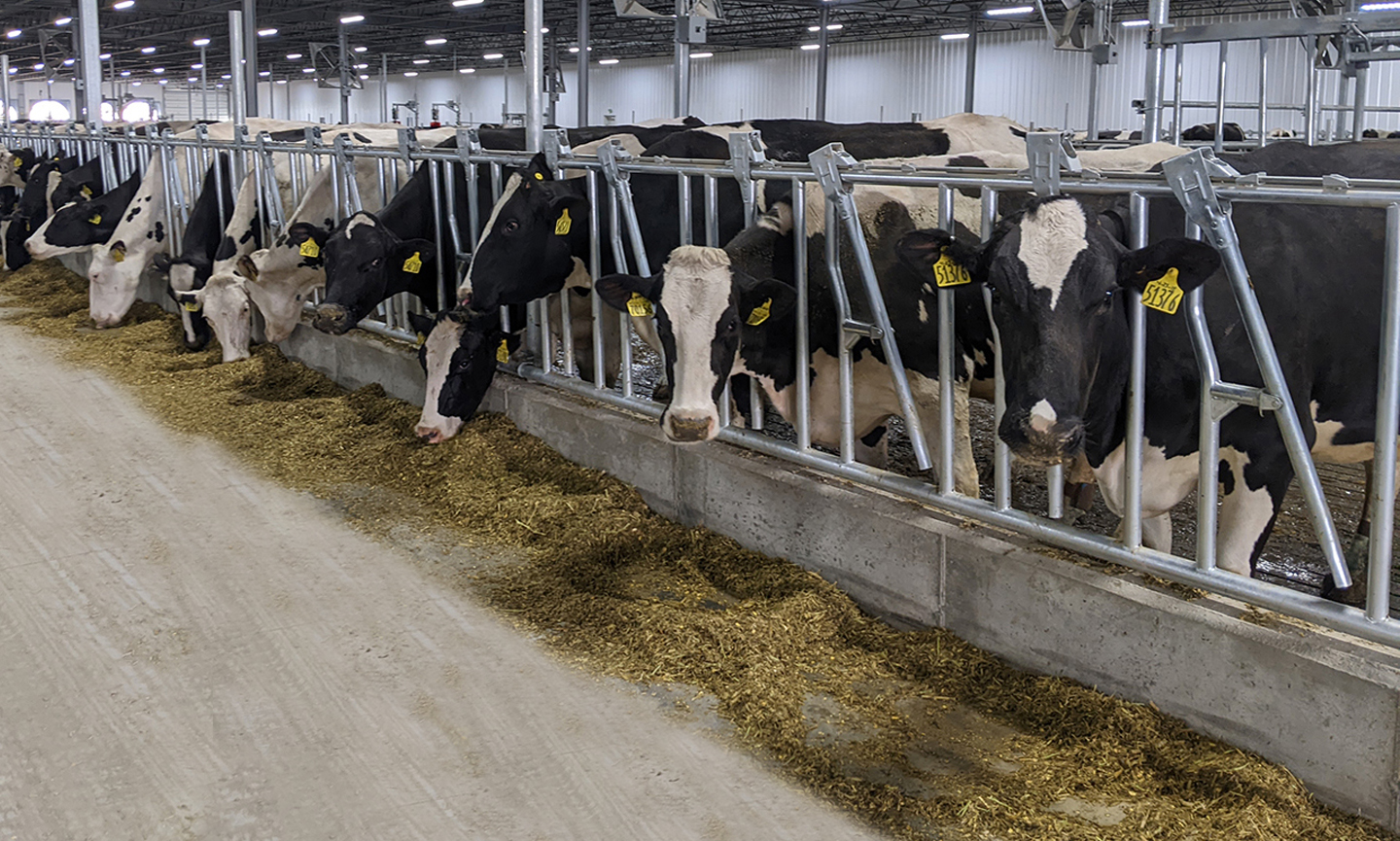

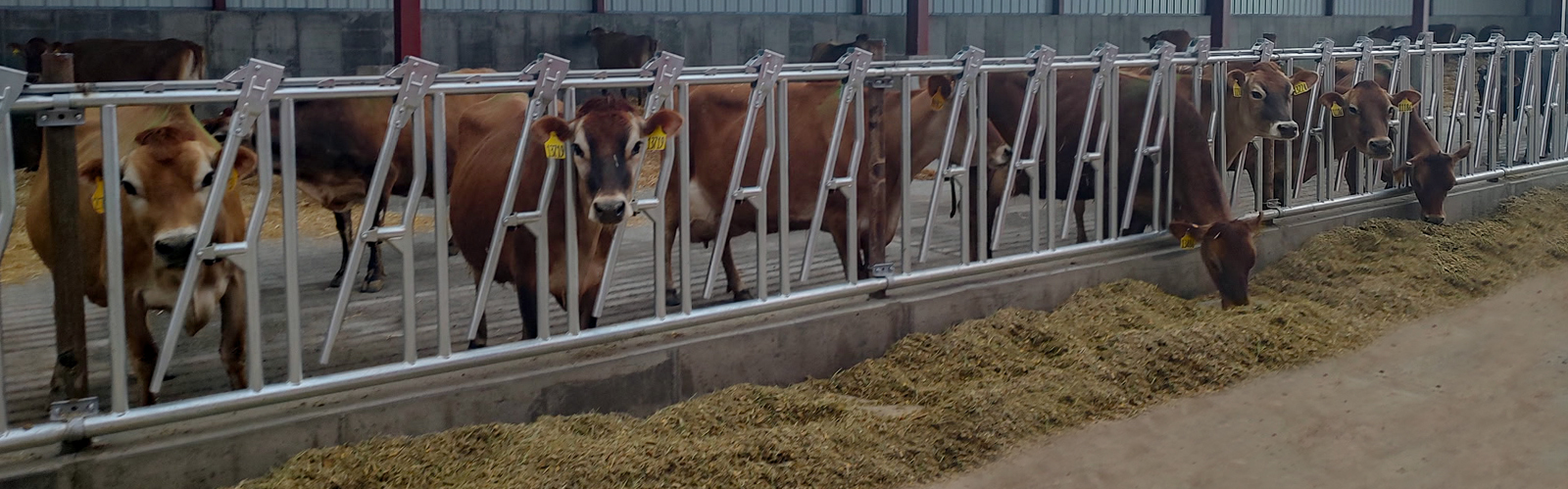

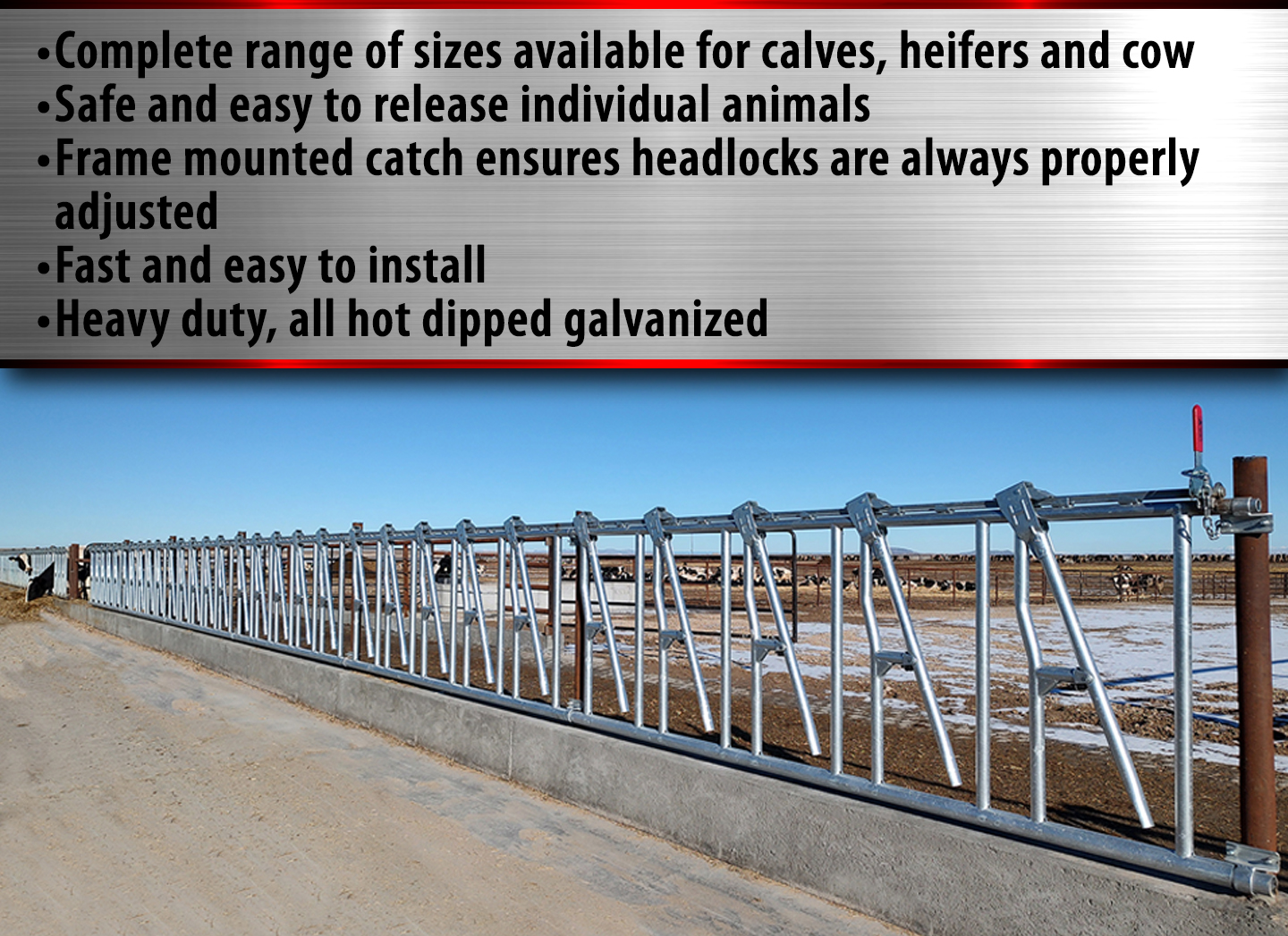

Heavy Duty Headlocks

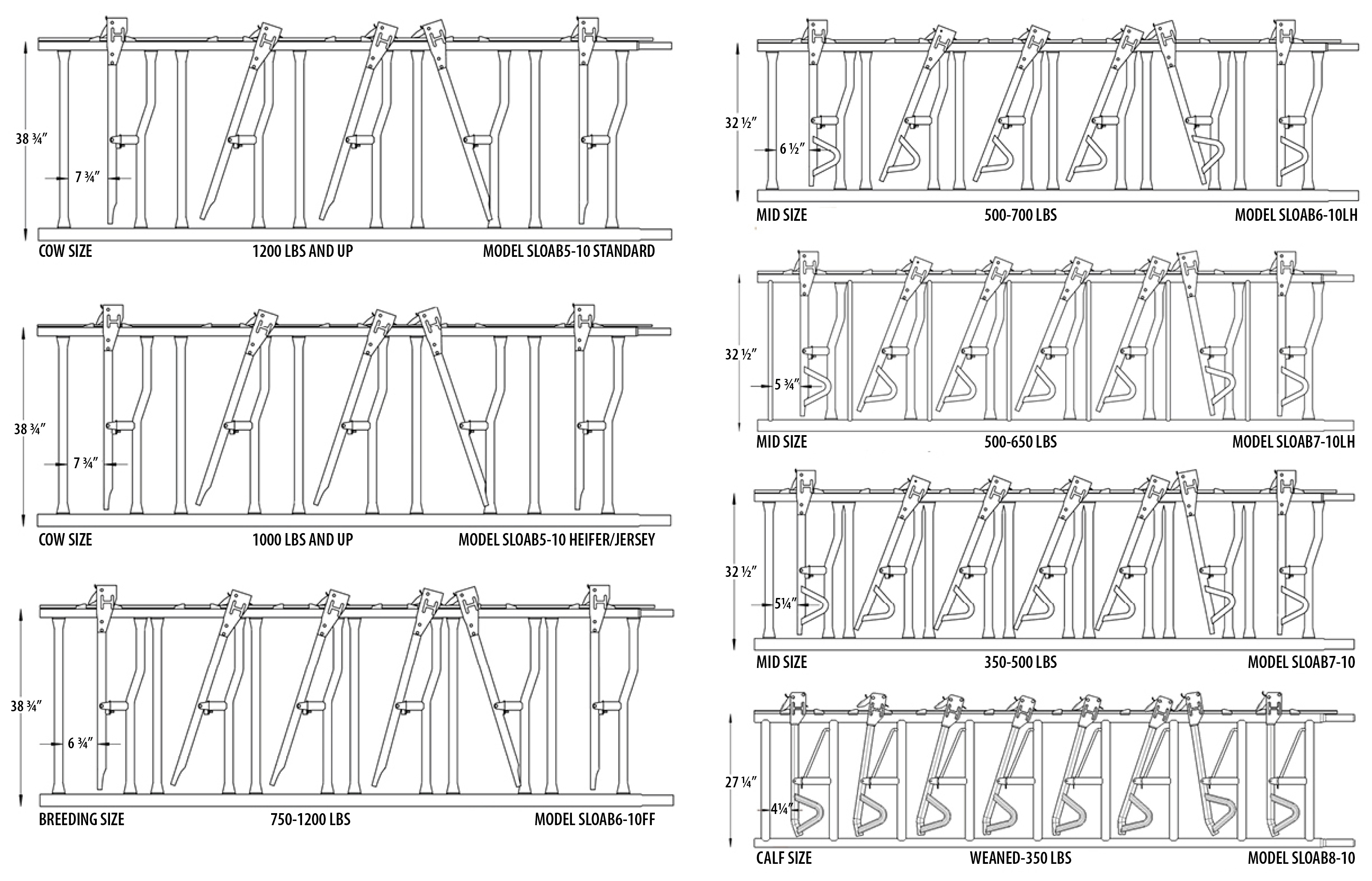

Complete range of sizes available. Mounting hardware available for any application.

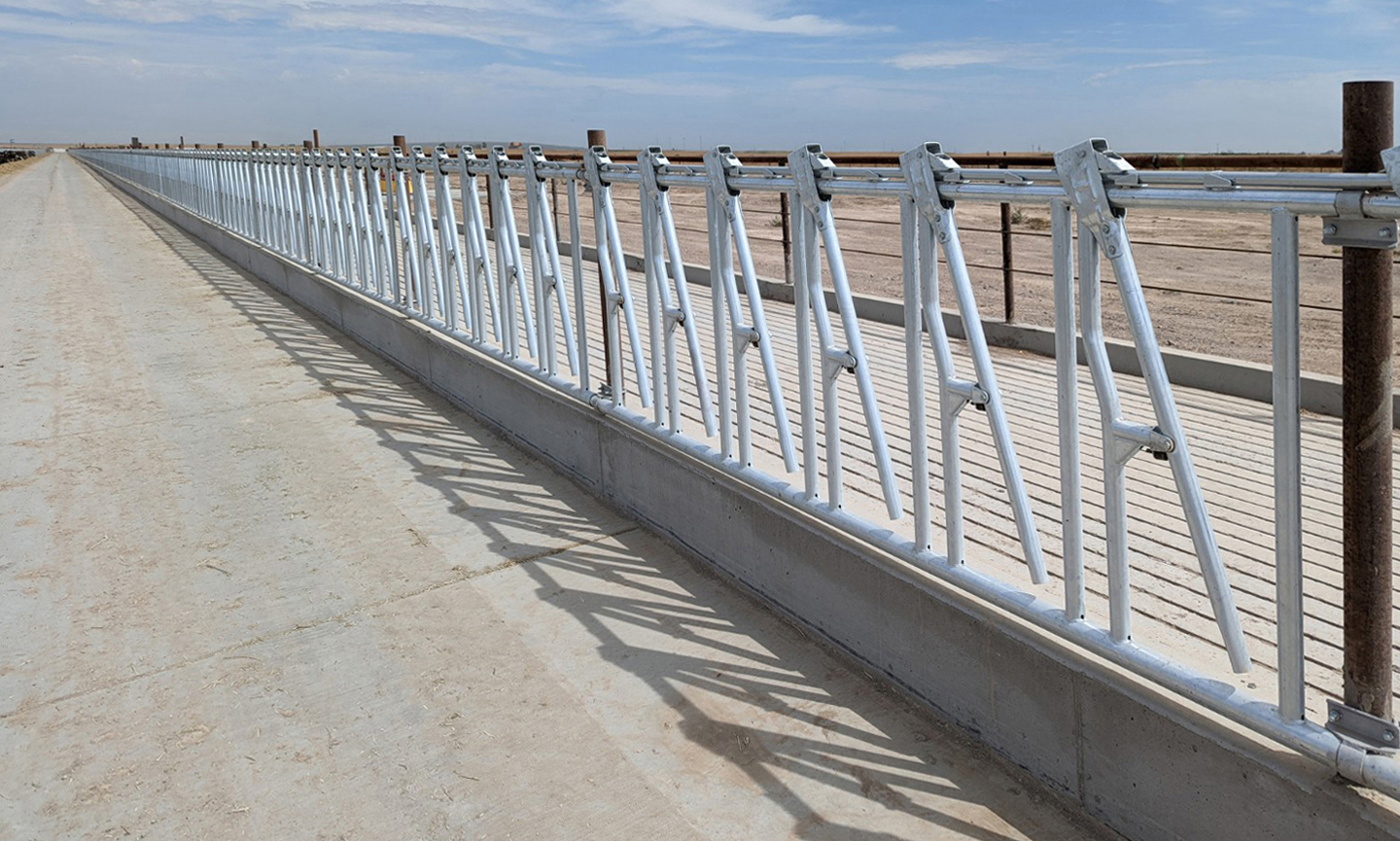

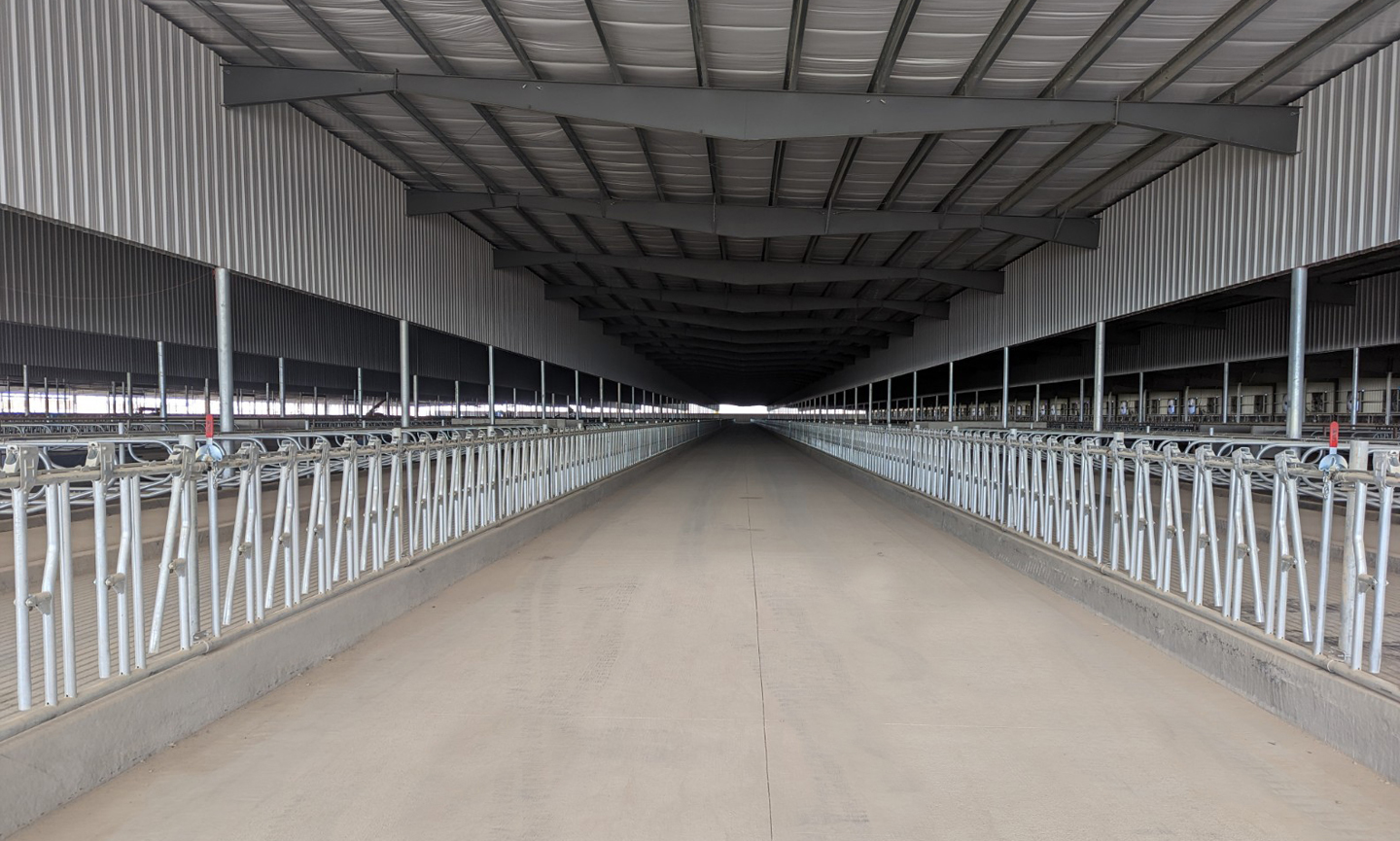

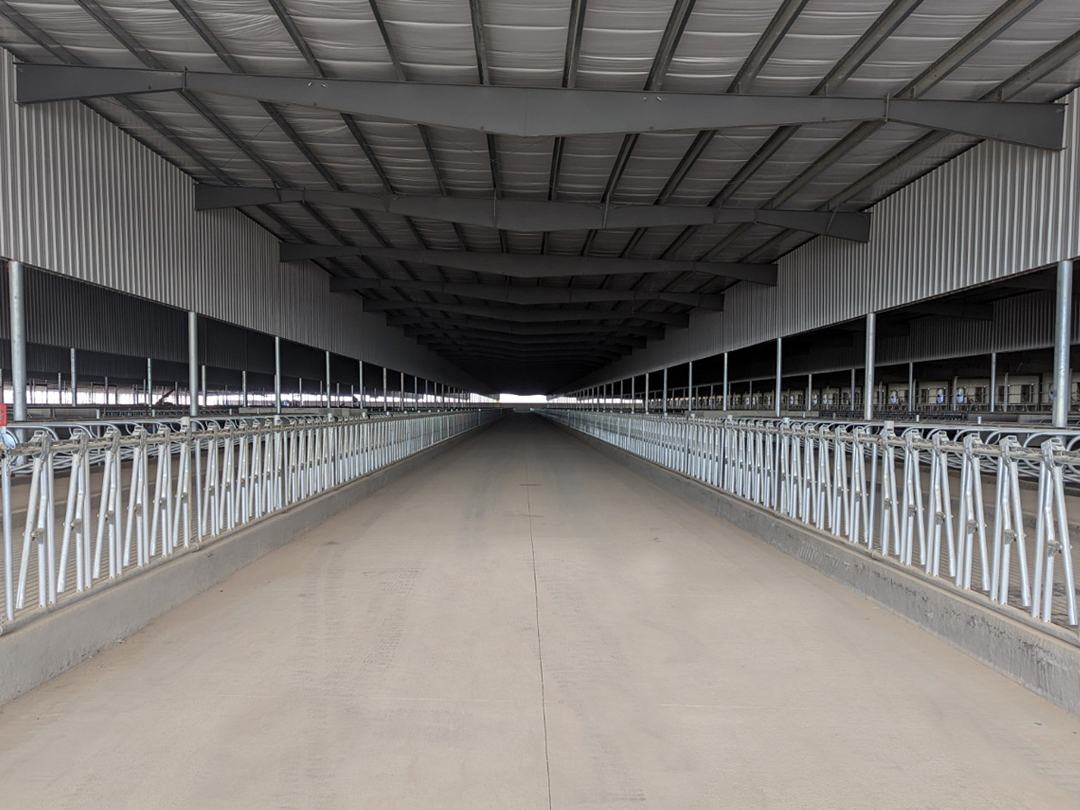

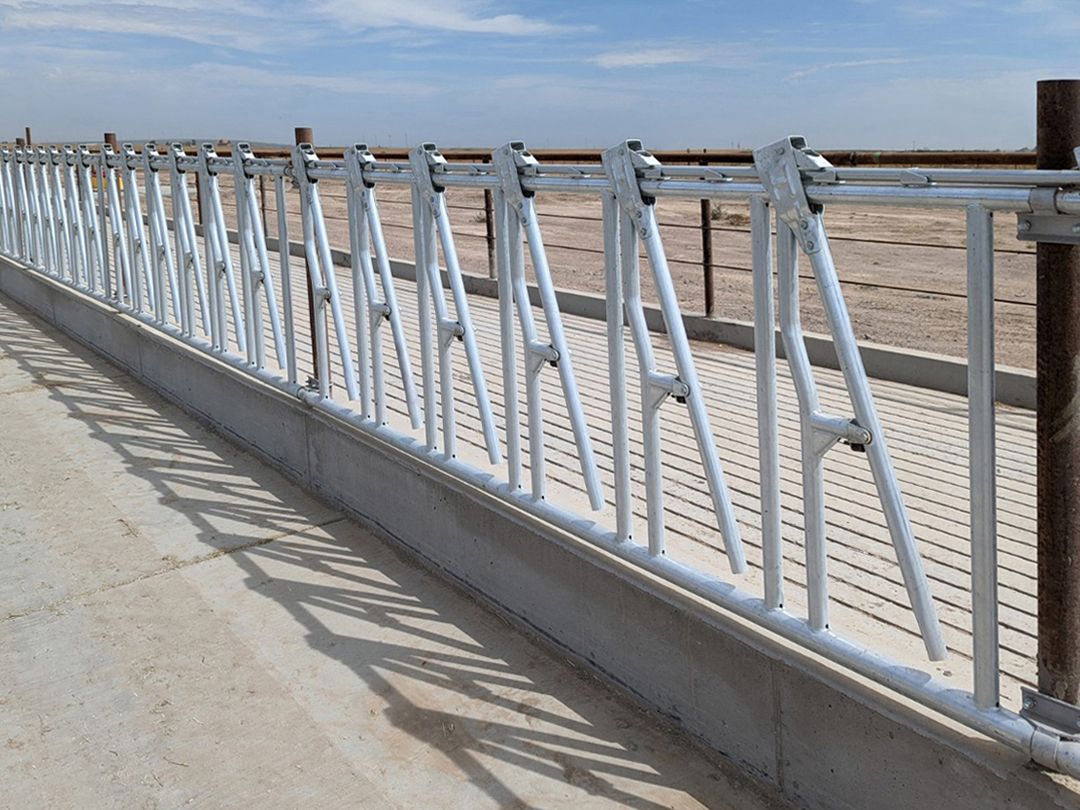

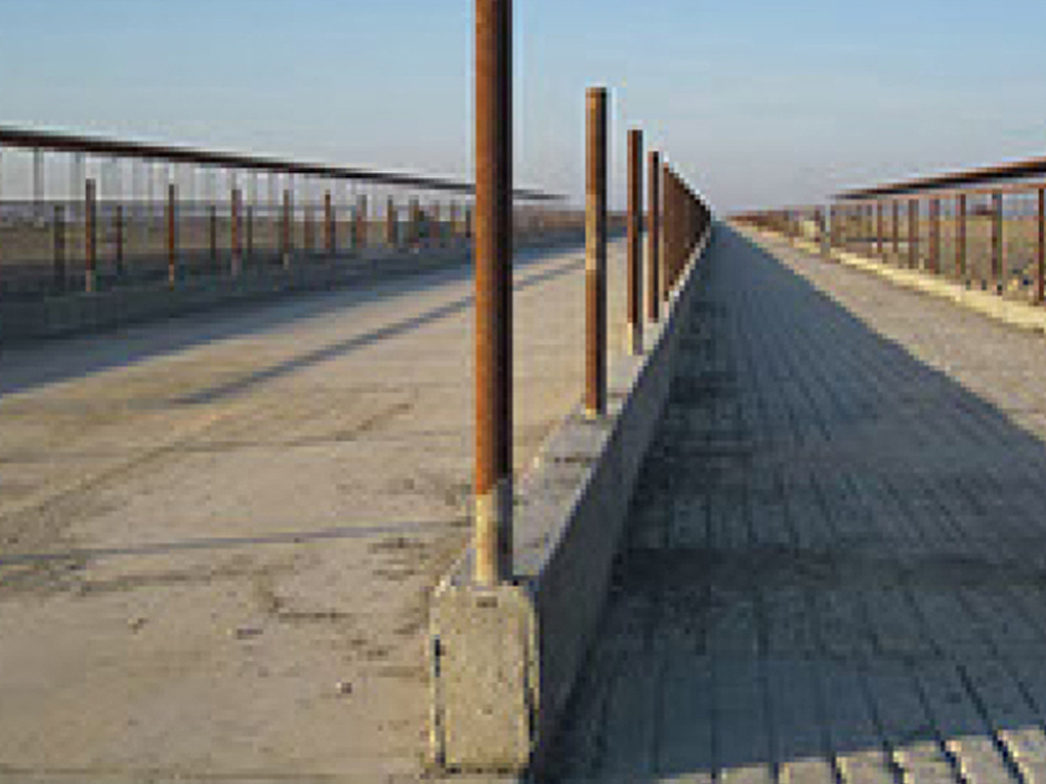

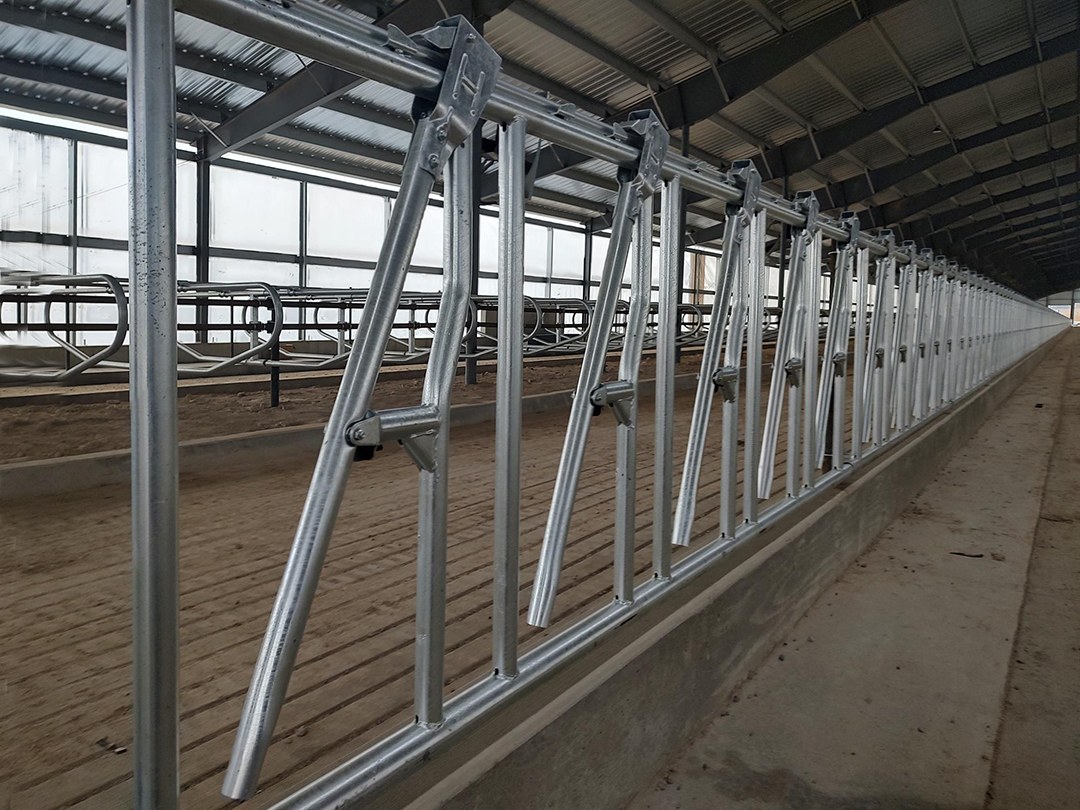

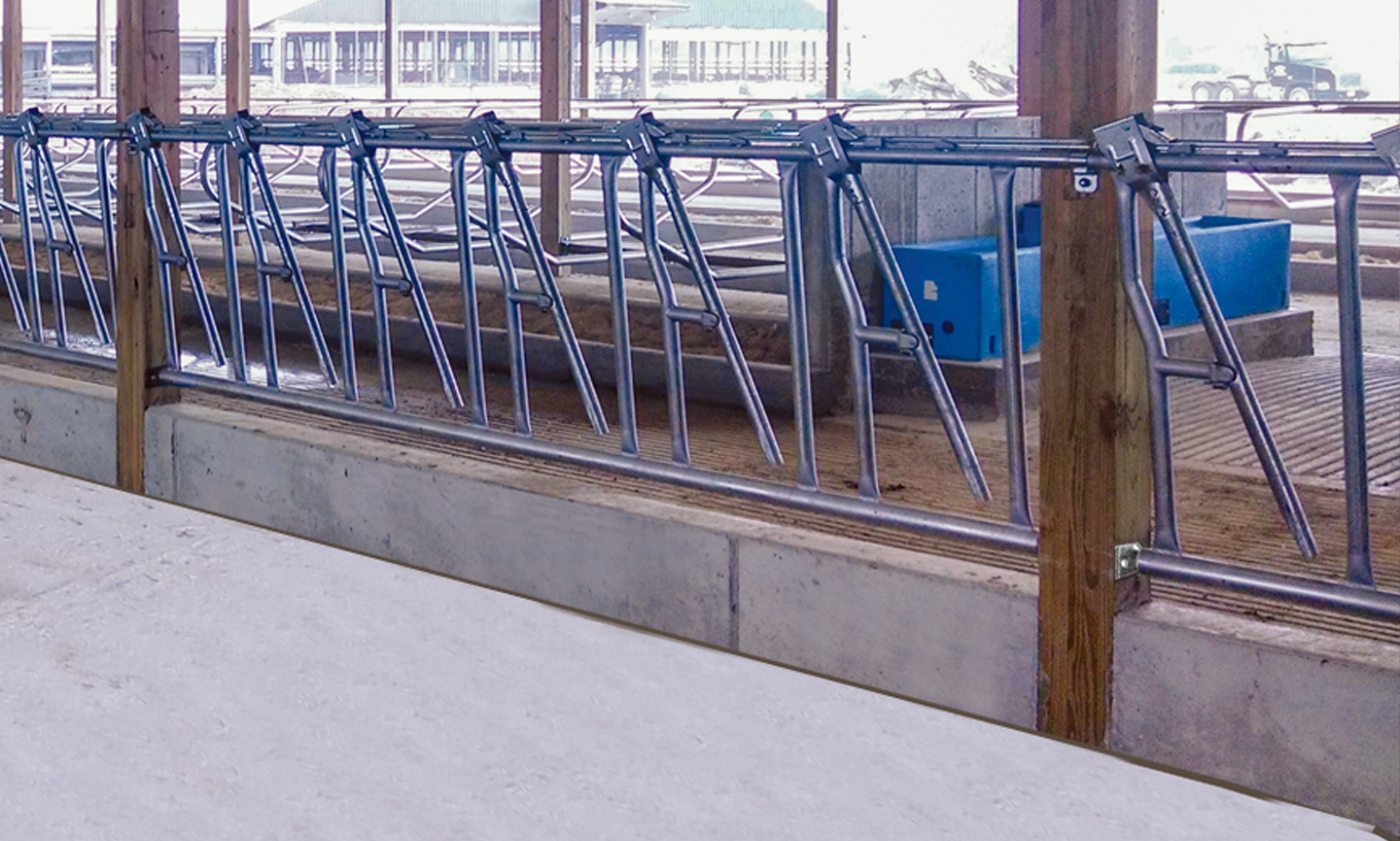

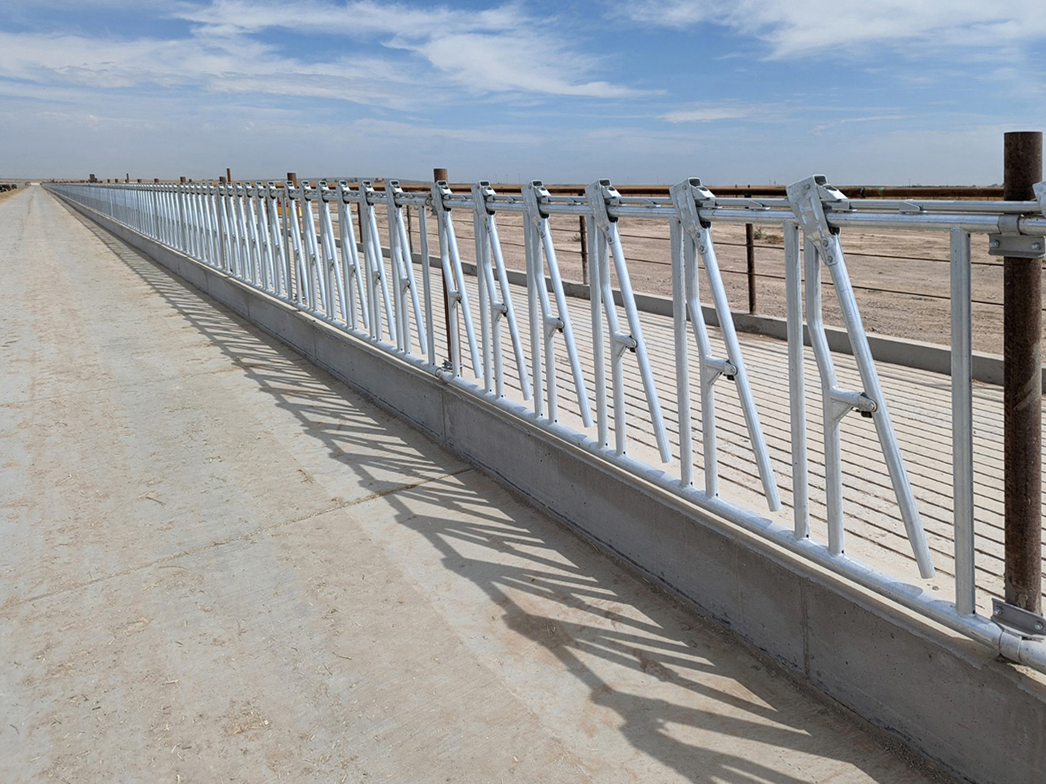

Headlock Installation
Handle assembly
Mounting hardware available for any application
Pin and Lanyard
3.00
Handle Pin with Chain
3.00
Headlock Wear Slide
(Fits on both flappers)
.99
Dog, Tang and Bolt Kit
Dog Part # HAT01-A00523P-01
Tang Part # HAT01-A00211P-01
8.00
Replacement Bolts for Dog/Tang and Tilt Bar
Bag of 25 or 50
7.50
Top only with H stamp and bolts
7.50
Replacement Bolts for Headlock Tops
Bag of 25 or 50
7.50
Please Call on these Lock Rails to Order
Lock Rail 8'
10.00
Lock Rail 9'
11.00
Lock Rail 10'
12.00
Lock Rail 12'
15.00
Catch Bracket
1.60
Rotator Handle Assembly
50.00

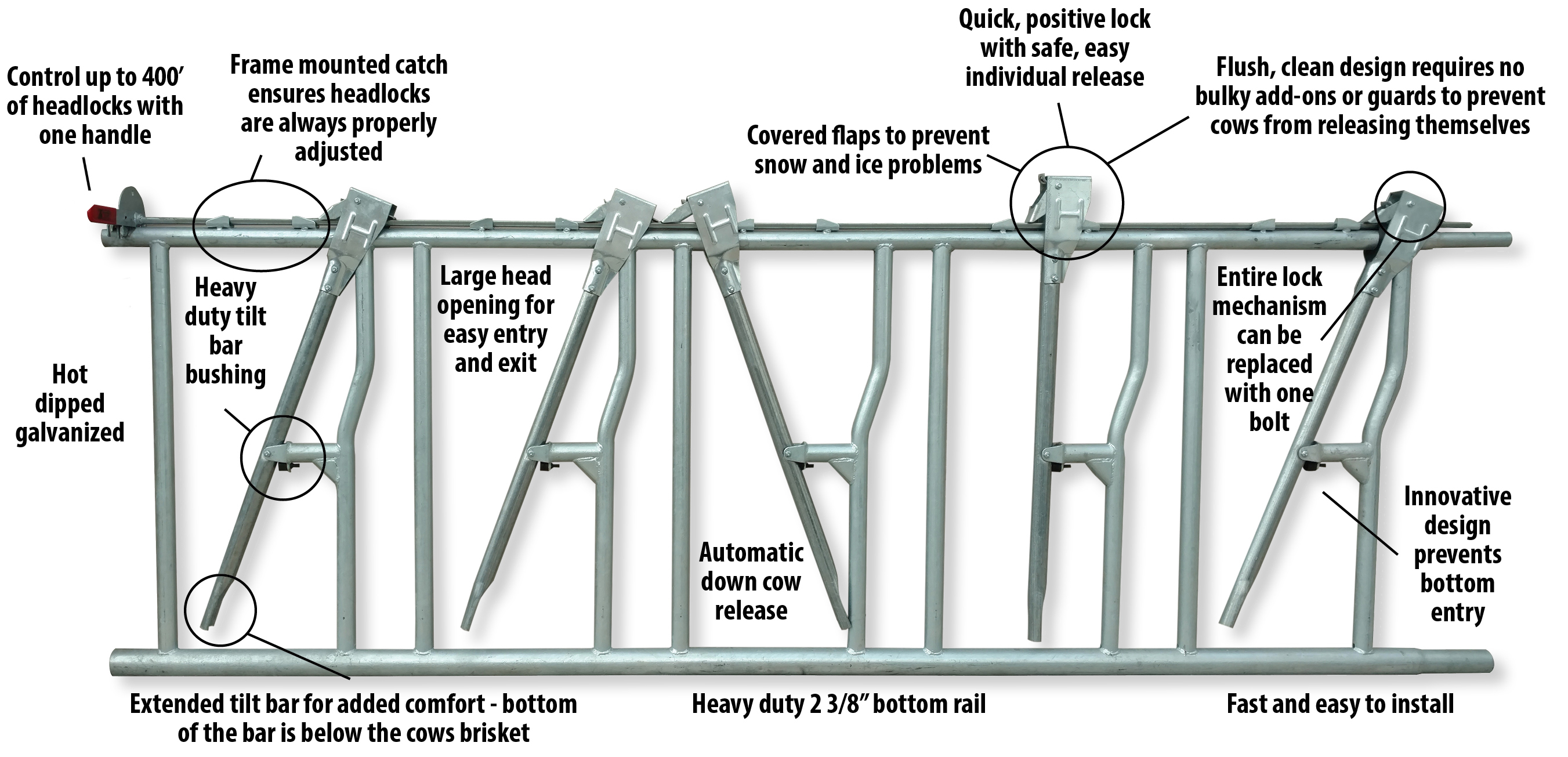

One handle will operate up to 400'. The same rotator handle works on all sizes of headlocks.
Rotator Handle Cover
2.50
Rubber Bumper
1.25
Large Ring Mounting Bracket with U Bolt
6.50
If you have multiple post sizes, list size of post and number of each in the Post Size box. If wood posts type wood.
Small Ring Mounting Bracket with U Bolt
6.50
If you have multiple post sizes, list size of post and number of each in the Post Size box. If wood posts type wood.
U Bolts for Round Posts
1.79
U Bolts for Square Posts
2.65
Headlock Large Starter Pipe
3.25
Headlock Small Starter Pipe
2.75
Tilt Bar 33.5"
13.50
Offset Bar 34.5"
15.50
New Offset Bar 34.5"
(Coped ends and brace welded in)
15.50
Neck Bar 34.5"
10.50
Tilt Bar 28" with Block Out Paddle
13.50
Offset Bar 28.5"
15.50
New Offset Bar 28.5"
(Coped ends and brace welded in)
15.50
Neck Bar 28.5"
10.50
Tilt Bar 23" Long w/Block Out Paddle (For 8 in 10', 9 in 10' and 9 in 12' lockups)
10.50
